BRS80ARANA02 09 – DISPENSER PARTS

BRS80ARANA02 09 – DISPENSER PARTS

Written by

in

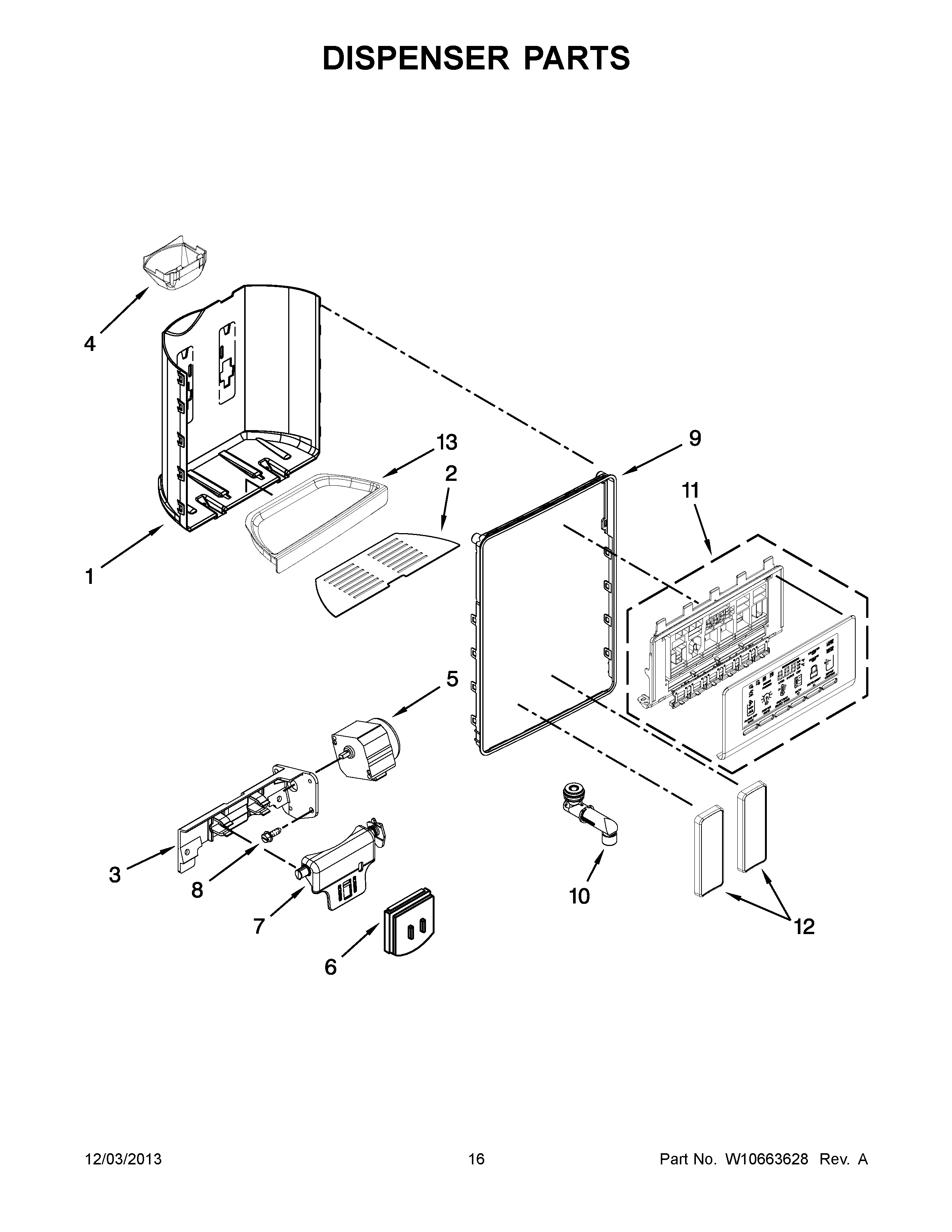

BRS80ARANA02 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10838126 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10448931 Whirlpool Refrigerator Dispenser Trim
10W11669938 Whirlpool Water Tube
11WPW10478644 Whirlpool Refrigerator Electronic Control Board
12W11624941 Whirlpool Refrigerator Pad
13W10276225 Whirlpool Refrigerator Drip Tray
