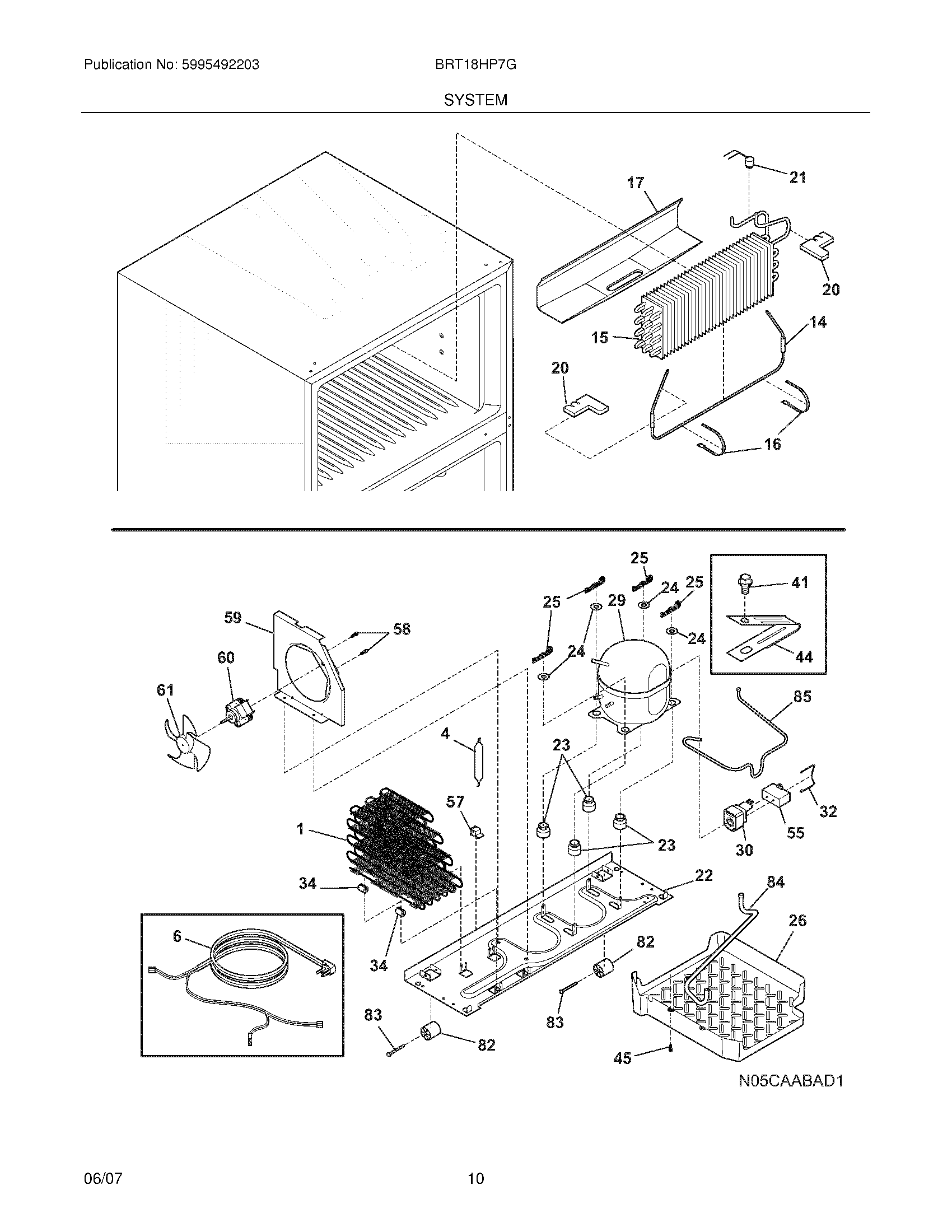

BRT18HP7GW0 09 – SYSTEM

BRT18HP7GW0 09 – SYSTEM

Written by

in

BRT18HP7GW0 09 – SYSTEM

Products

PositionProduct
NIWCI 5303918222
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWiring Harness,freezer section ,with light
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI218252201 Frigidaire Refrigerator Screw
NI240388701 Frigidaire Refrigerator Wiring Harness
1241785404 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 240496101
6241872701 Frigidaire Refrigerator Wiring Harness
14240356221 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665606 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
305304491562 Frigidaire Refrigerator Starter Kit
32WCI 241718801
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59CONDENSER FAN MOTOR KIT
60241696606 Frigidaire Refrigerator Motor
61240524102 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 240346201
