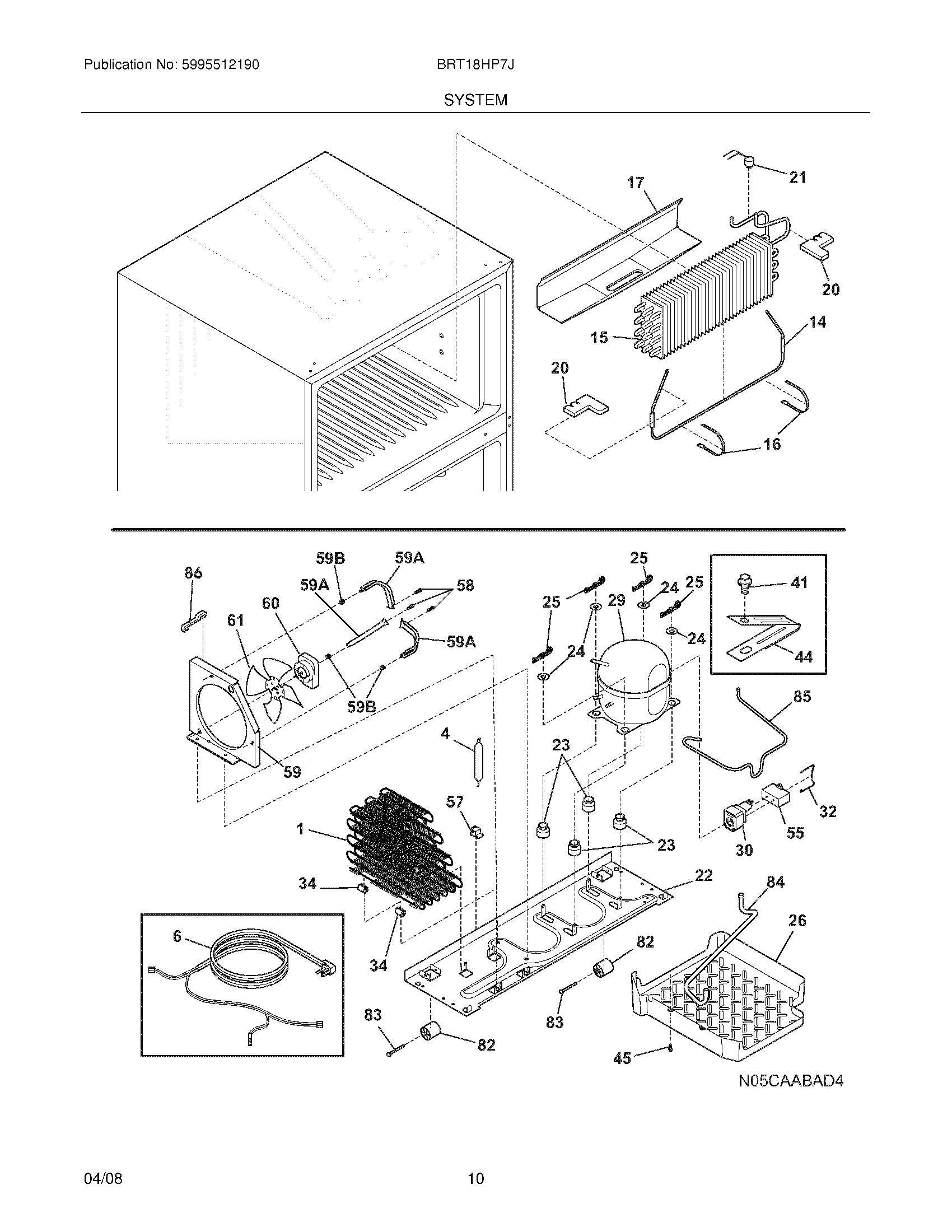

BRT18HP7JC0 09 – SYSTEM
Written by
in
BRT18HP7JC0 09 – SYSTEM
Products
Position
Product
NI
240346701 Frigidaire Refrigerator Foam Seal Tape
NI
218252201 Frigidaire Refrigerator Screw
NI
Wiring Harness,freezer section ,with light
NI
240359403 Frigidaire Refrigerator Fan Shroud Screw
NI
240388701 Frigidaire Refrigerator Wiring Harness
NI
WCI 5303918222
NI
5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI
240396801 Frigidaire Refrigerator Tube Clamp
1
241785404 Frigidaire Refrigerator Condenser
4
5303305677 Frigidaire Replacement Filter Dryer Filters
6
241872701 Frigidaire Refrigerator Wiring Harness
14
240356221 Frigidaire Refrigerator Defrost Heater
15
5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16
5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17
241801301 Frigidaire Refrigerator Drain Trough
20
241551902 Frigidaire Refrigerator Insulation Block
21
5303918202 Frigidaire Refrigerator Defrost Thermostat
22
241665606 Frigidaire Refrigerator Compressor Base
23
218513300 Frigidaire Refrigerator Compressor Mount Grommet
24
241812301 Frigidaire Refrigerator Compressor Mount Washer
25
242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26
241920605 Frigidaire Refrigerator Defrost Pan
29
5304507765 Frigidaire Refrigerator Compressor Kit
30
241707703 Frigidaire Refrigerator Starter
32
WCI 216649100
34
240405201 Frigidaire Refrigerator Grommet
41
240433204 Frigidaire Refrigerator Screw
44
5304456288 Frigidaire Refrigerator Clamp
45
241500305 Frigidaire Refrigerator Screw
55
5304464438 Frigidaire Compressor Run Capacitor
57
240542601 Frigidaire Clip-WIRING Harness
58
240569202 Frigidaire Refrigerator Screw
59B
WCI 240346601
59A
240346501 Frigidaire Refrigerator Support Bracket
59
241946105 Frigidaire Refrigerator Condenser Shroud
60
297279500 Frigidaire Refrigerator Condenser Fan Motor
61
241639502 Frigidaire Refrigerator Condenser Fan Blade
82
5304418225 Frigidaire Refrigerator Roller P-1
83
5304455655 Frigidaire Refrigerator Rivet
84
240500801 Frigidaire Refrigerator P-1 Tube-Drain
85
241856901 Frigidaire Refrigerator Tube-Connector
86
240409302 Frigidaire Refrigerator Condenser Tube Spacer
←
