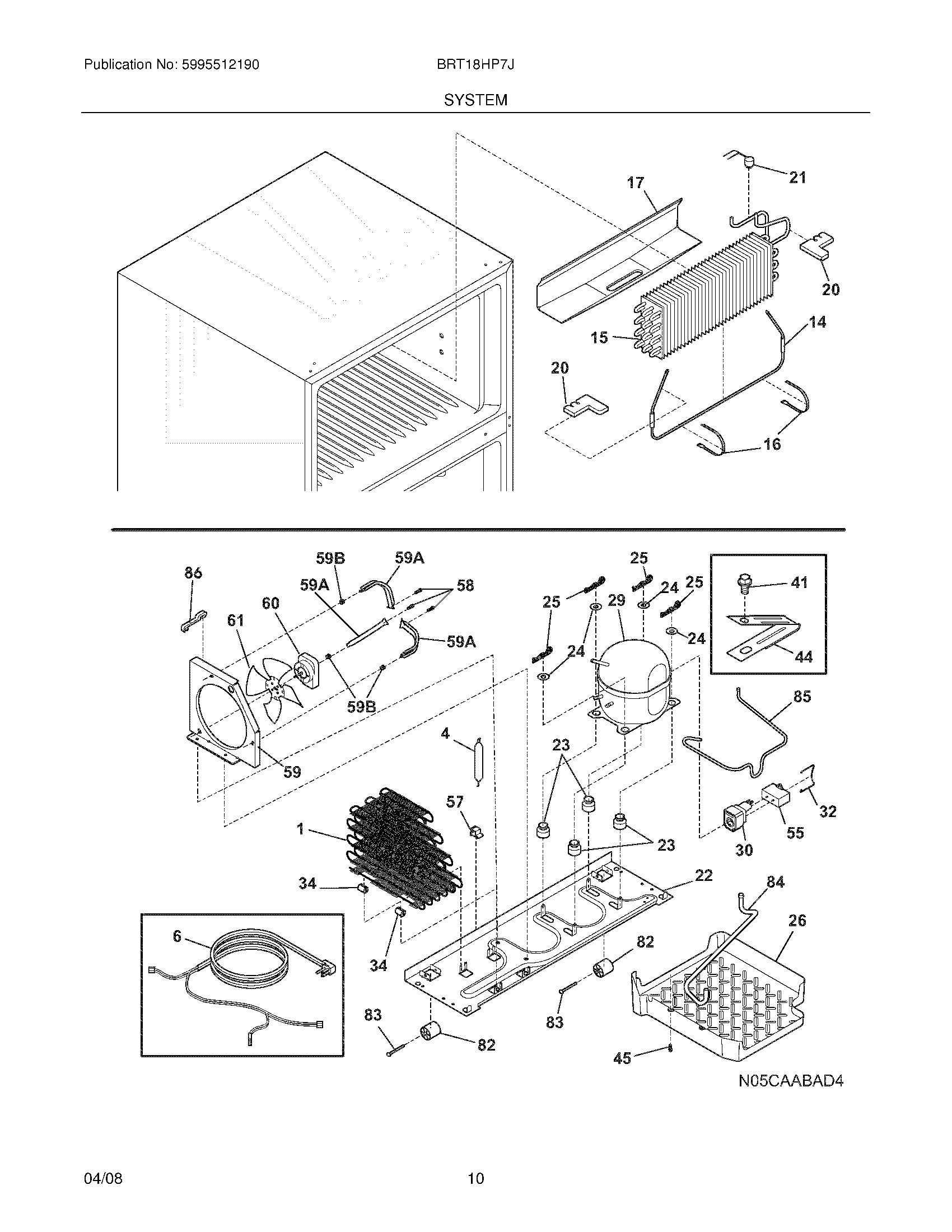

BRT18HP7JW1 09 – SYSTEM

BRT18HP7JW1 09 – SYSTEM

Written by

in

BRT18HP7JW1 09 – SYSTEM

Products

PositionProduct
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NIWCI 5303918222
NIWiring Harness,freezer section ,with light
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI218252201 Frigidaire Refrigerator Screw
NI240388701 Frigidaire Refrigerator Wiring Harness
1241785404 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6241872701 Frigidaire Refrigerator Wiring Harness
14240356221 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665606 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241920605 Frigidaire Refrigerator Defrost Pan
295304507765 Frigidaire Refrigerator Compressor Kit
30216954235 Frigidaire Refrigerator Compressor Freezer Controller
32216954300 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240433204 Frigidaire Refrigerator Screw
445304456288 Frigidaire Refrigerator Clamp
45241500305 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59241946105 Frigidaire Refrigerator Condenser Shroud
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85TUBE-CONNECTOR, SUCTION
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
