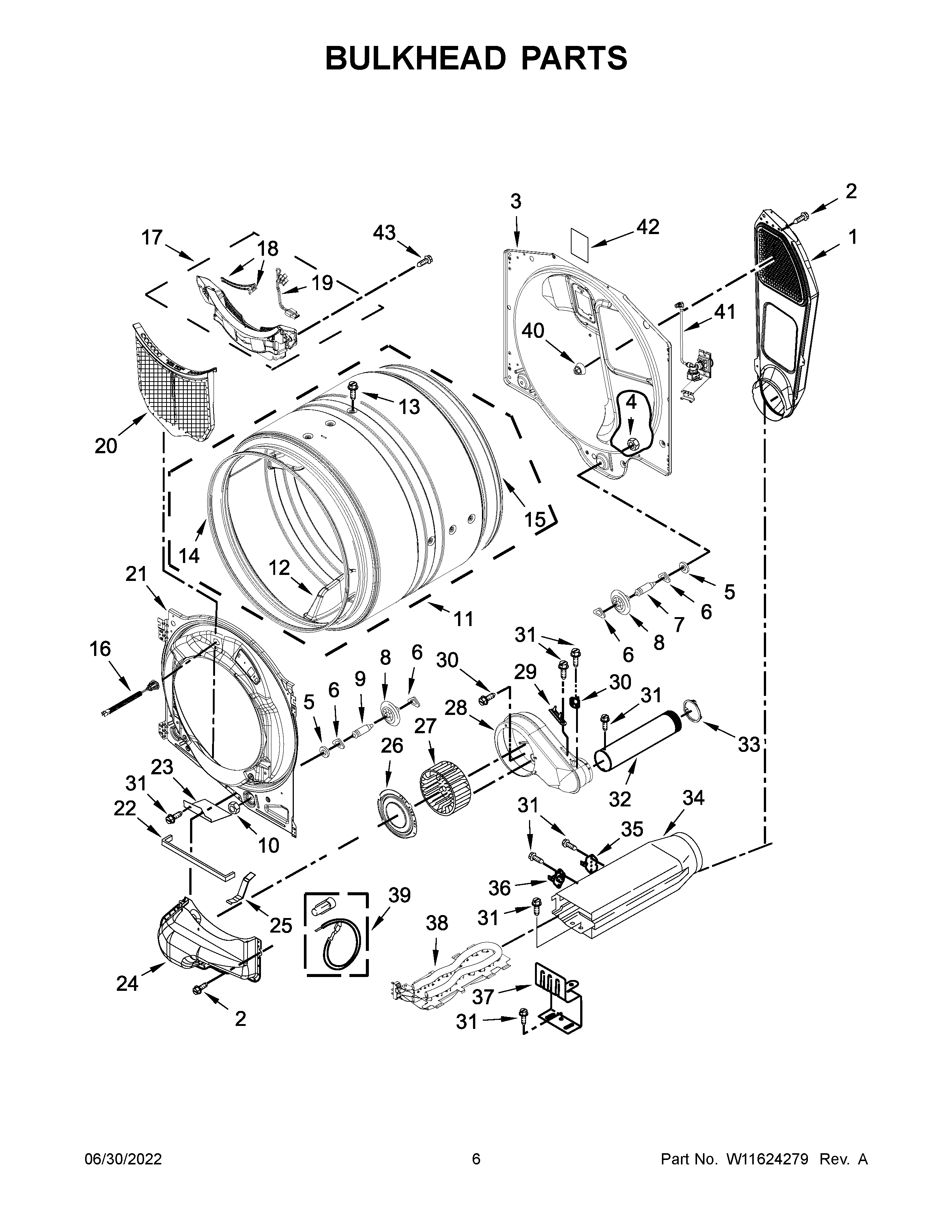

BSE17ASANA0 04 – BULKHEAD PARTS

Products

Position	Product
NI	WP3357397 Whirlpool Adapter
NI	WPW10269488 Whirlpool Connector
NI	WP3357450 Whirlpool Washer Assembly
NI	WPW10615809 Whirlpool Fill Hose
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10615831 Whirlpool Fill Hose
1	W11677720 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11299321 Whirlpool Bulkhead
4	WPW10080190 Whirlpool Nut
5	W11236646 Whirlpool Washer Assembly
6	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7	SHAFT
8	WPW10314173 Whirlpool Dryer Drum Support Wheel
9	SHAFT
10	WPW10080210 Whirlpool Nut
11	W10541657 Whirlpool Drum Assembly
12	W10280771 Whirlpool Drum Baffle
13	W10853898 Whirlpool Screw
14	W11193479 Whirlpool Seal
15	280114 Whirlpool Dryer Drum Seal
16	W11310048 Whirlpool Light
17	HOUSNG-DRYER LINT
18	WP3387223 Whirlpool Electrode Assembly
19	WPW10298258 Whirlpool Wire Harness
20	SCREEN – LINT. ALPHA W/FELT
21	W10673491 Whirlpool Bulkhead Assembly
22	W11676493 Whirlpool Seal Assembly
23	W11257251 Whirlpool Shield
24	WPW10211896 Whirlpool Duct Lint
25	W10414388 Whirlpool Clip
26	W11688571 Whirlpool Collar
27	WP697772 Whirlpool Dryer Blower Wheel
28	WPW10211911 Whirlpool Housing
29	FUSE-THRML
30	WP8577274 Whirlpool Dryer Thermistor
31	WP693995 Whirlpool Screw
32	WPW10342188 Whirlpool Exhaust Pipe
33	WPW10344699 Whirlpool Collar
34	W10802681 Whirlpool Box Assembly
35	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
36	WP8557403 Whirlpool Thermostat
37	8066099 Whirlpool Bracket
38	WP3387747 Whirlpool Dryer Heating Element
39	279457 Whirlpool Dryer Heating Element Wide Spade Connection
40	W11230609 Whirlpool Nozzle
41	W11216837 Whirlpool Valve
42	W11409002 Whirlpool Pad
43	WP3387230 Whirlpool Screw
