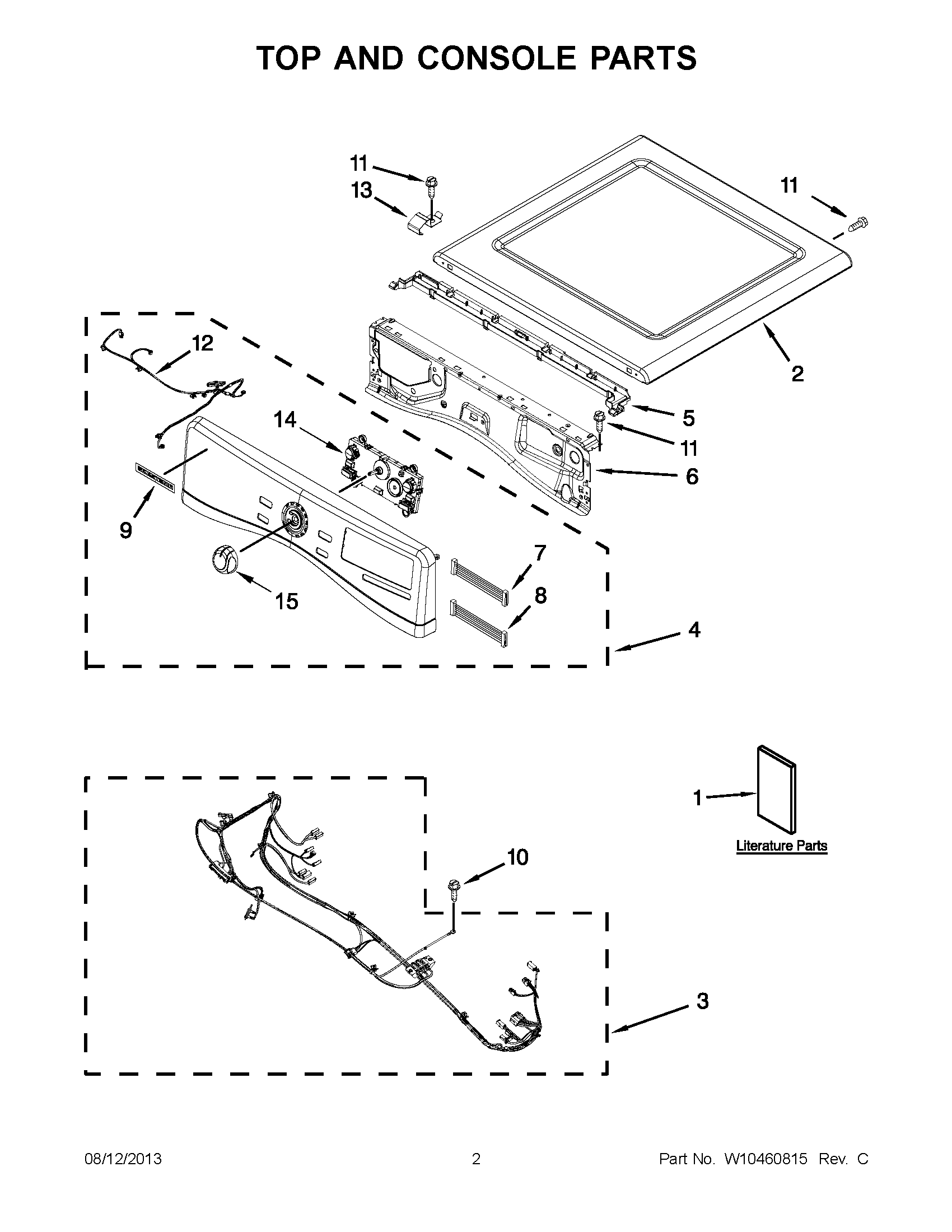

BSG17B6ANA0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1WIRING DIAGRAM
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4PANEL, CONSOLE (SILVER)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9BADGE
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12CABLE, USER INTERFACE
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
