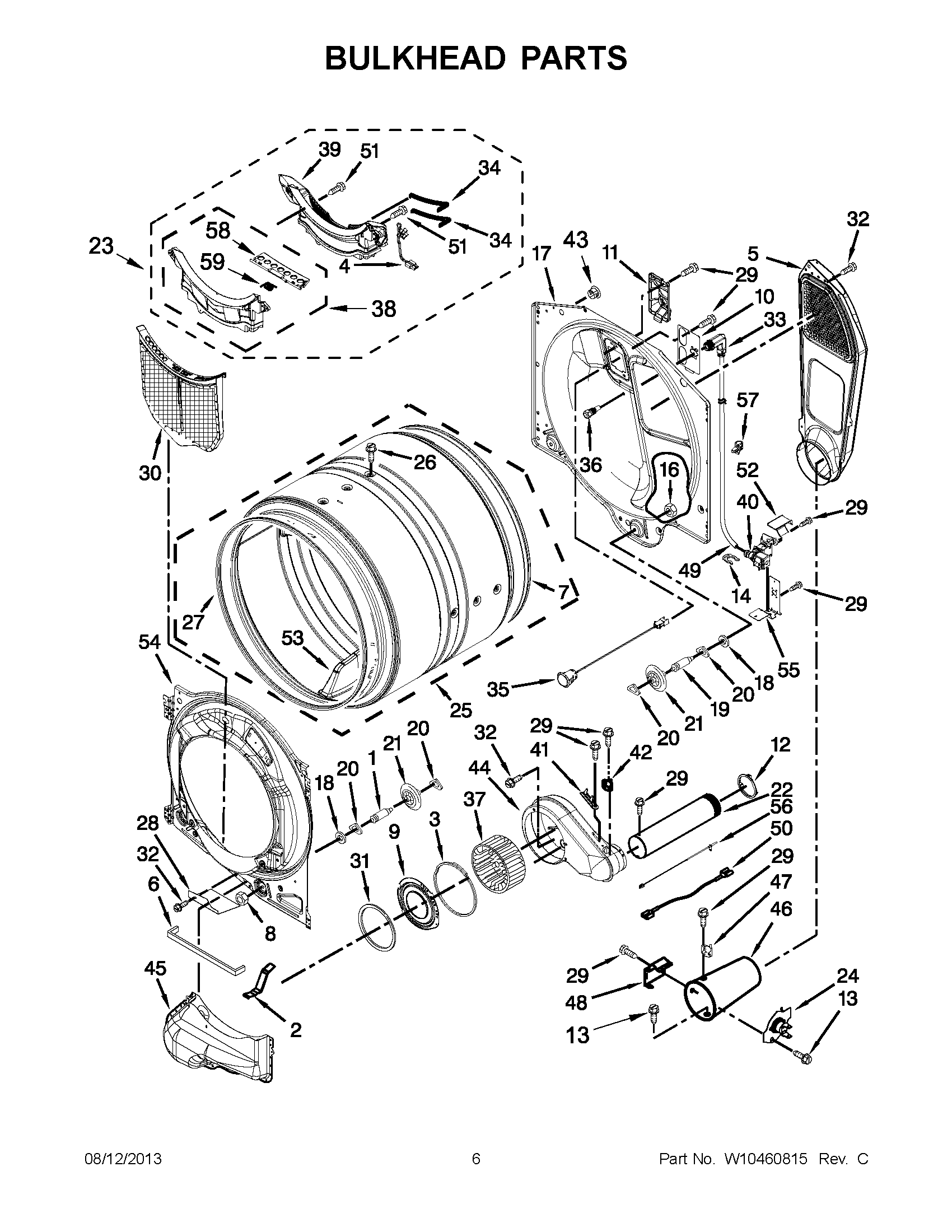

BSG17B6ANA0 03 – BULKHEAD PARTS

BSG17B6ANA0 03 – BULKHEAD PARTS

Written by

in

BSG17B6ANA0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10414388 Whirlpool Clip
3	WP697770 Whirlpool Blower Cover Plate Seal
4	WPW10298258 Whirlpool Wire Harness
5	WPW10293765 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	WPW10656504 Whirlpool Bracket
11	WPW10208422 Whirlpool Dryer Light Deflector Cover
12	WPW10344699 Whirlpool Collar
13	WP693995 Whirlpool Screw
14	W10044599 Whirlpool Clip
16	WPW10080190 Whirlpool Nut
17	BULKHEAD, REAR
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	HOUSNG-DRYER LINT
24	WP8573713 Whirlpool Thermal Fuse
25	W10541657 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	W11257251 Whirlpool Shield
29	WP90767 Whirlpool Screw
30	SCREEN – LINT. ALPHA W/FELT
31	W10211899 Whirlpool Seal
32	WP488729 Whirlpool Refrigerator Door Screw
33	WPW10347739 Whirlpool Hose
34	WP3387223 Whirlpool Electrode Assembly
35	DRUM LIGHT ASSEMBLY-LED
36	WPW10277503 Whirlpool Nozzle
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10905013 Whirlpool Door
39	W11125442 Whirlpool Outer Grille
40	W10815373 Whirlpool Valve
41	WP3392519 Whirlpool Dryer Thermal Fuse
42	WP8577274 Whirlpool Dryer Thermistor
43	8529007 Whirlpool Plug
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	WP8573824 Whirlpool Funnel
47	THRMST-FIX
48	WP338906 Whirlpool Dryer Gas Sensor
50	JUMPER, TCO HIGH LIMIT
51	WP3387230 Whirlpool Screw
52	COVER, INLET VALVE
53	W10280771 Whirlpool Drum Baffle
54	W10673491 Whirlpool Bulkhead Assembly
56	WPW10419068 Whirlpool Thermistor
57	WP3391018 Whirlpool Wire Tie
58	W11156832 Whirlpool Air Grille
59	W11242876 Whirlpool Out Housing
