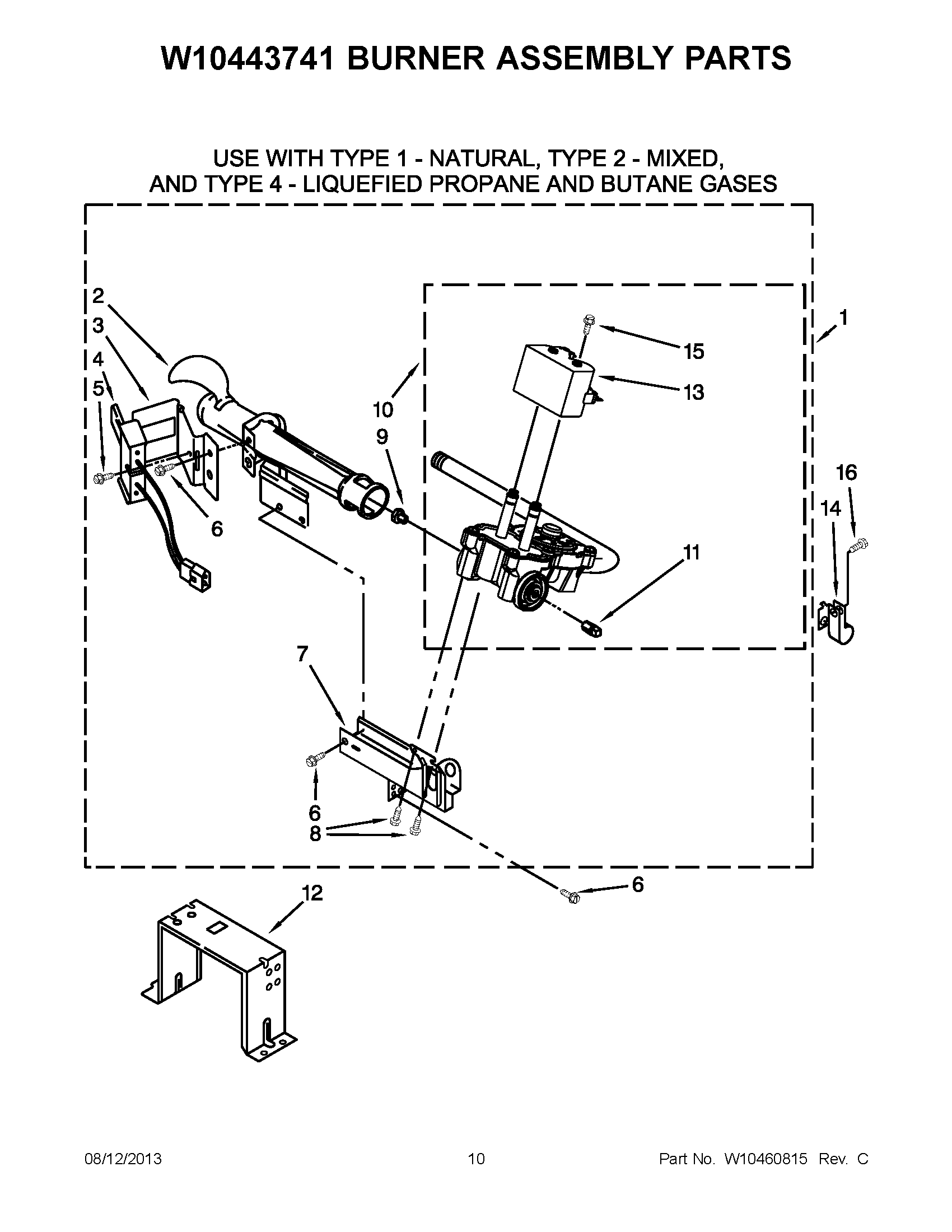

BSG17B6ANA0 05 – W10443741 BURNER ASSEMBLY PARTS

BSG17B6ANA0 05 – W10443741 BURNER ASSEMBLY PARTS

Written by

in

BSG17B6ANA0 05 – W10443741 BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NIW10444066 Whirlpool Natural Gas
NICABINET (NOT A SERVICEABLE PART)
1BURNER ASSEMBLY
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP15418 Whirlpool Gas Orifice
10W10443739 Whirlpool Gas Valve
11W10295523 Whirlpool Plug
12Bracket, Support
13WPW10328463 Whirlpool Valve Coil
143978776 Whirlpool Bracket
15326049536 Whirlpool Screw
16WP488729 Whirlpool Refrigerator Door Screw
