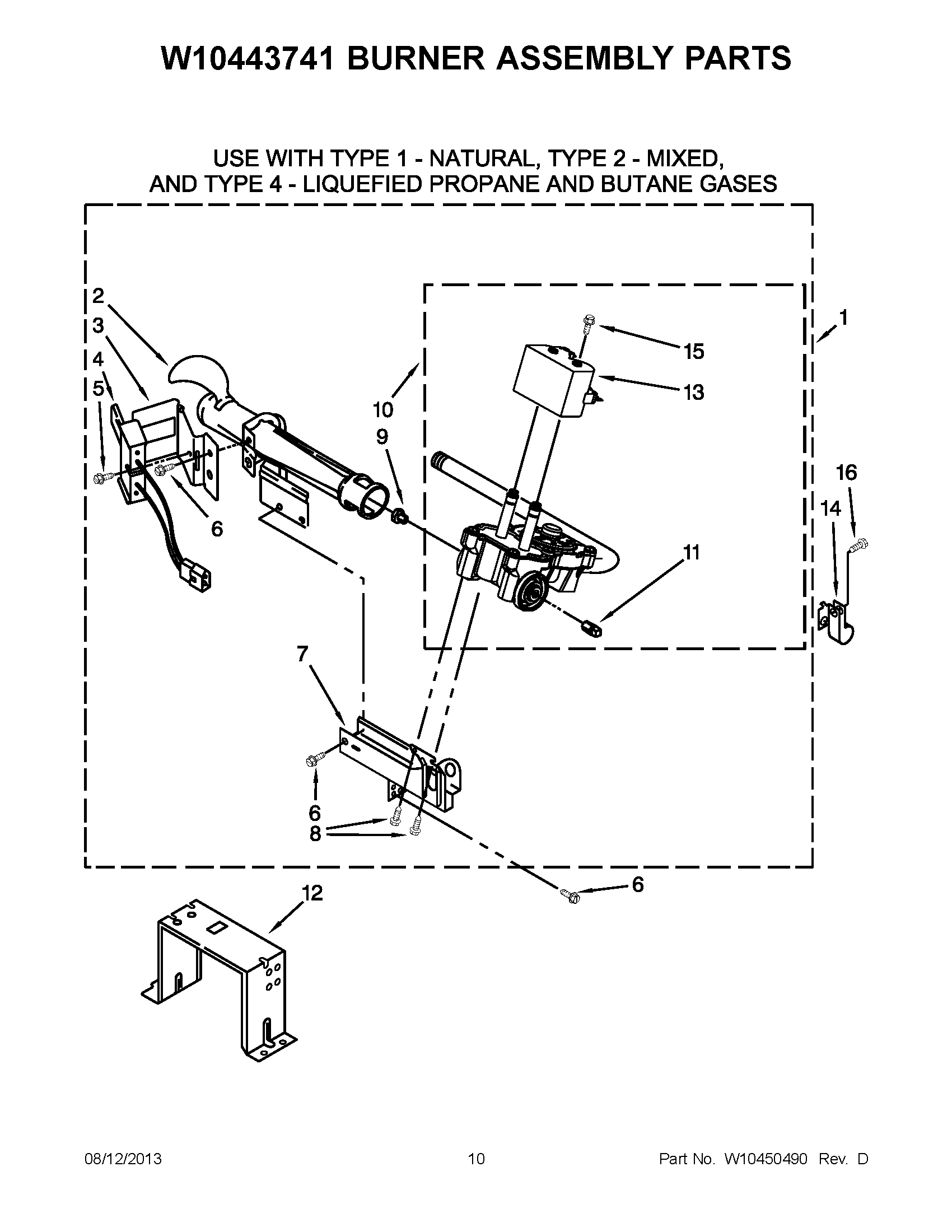

BSG17BVANA0 05 – W10443741 BURNER ASSEMBLY PARTS

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	W10444066 Whirlpool Natural Gas
NI	CABINET (NOT A SERVICEABLE PART)
1	BURNER ASSEMBLY
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	SCREW
9	TYPE 1 (NATURAL)
10	VALVE ASSEMBLY
11	PIPE PLUG
13	SCREW
14	BRACKET, GAS PIPE
15	326049536 Whirlpool Screw
16	WP488729 Whirlpool Refrigerator Door Screw
