BSG17CCANA0 02 – TOP AND CONSOLE PARTS

BSG17CCANA0 02 – TOP AND CONSOLE PARTS

Written by

in

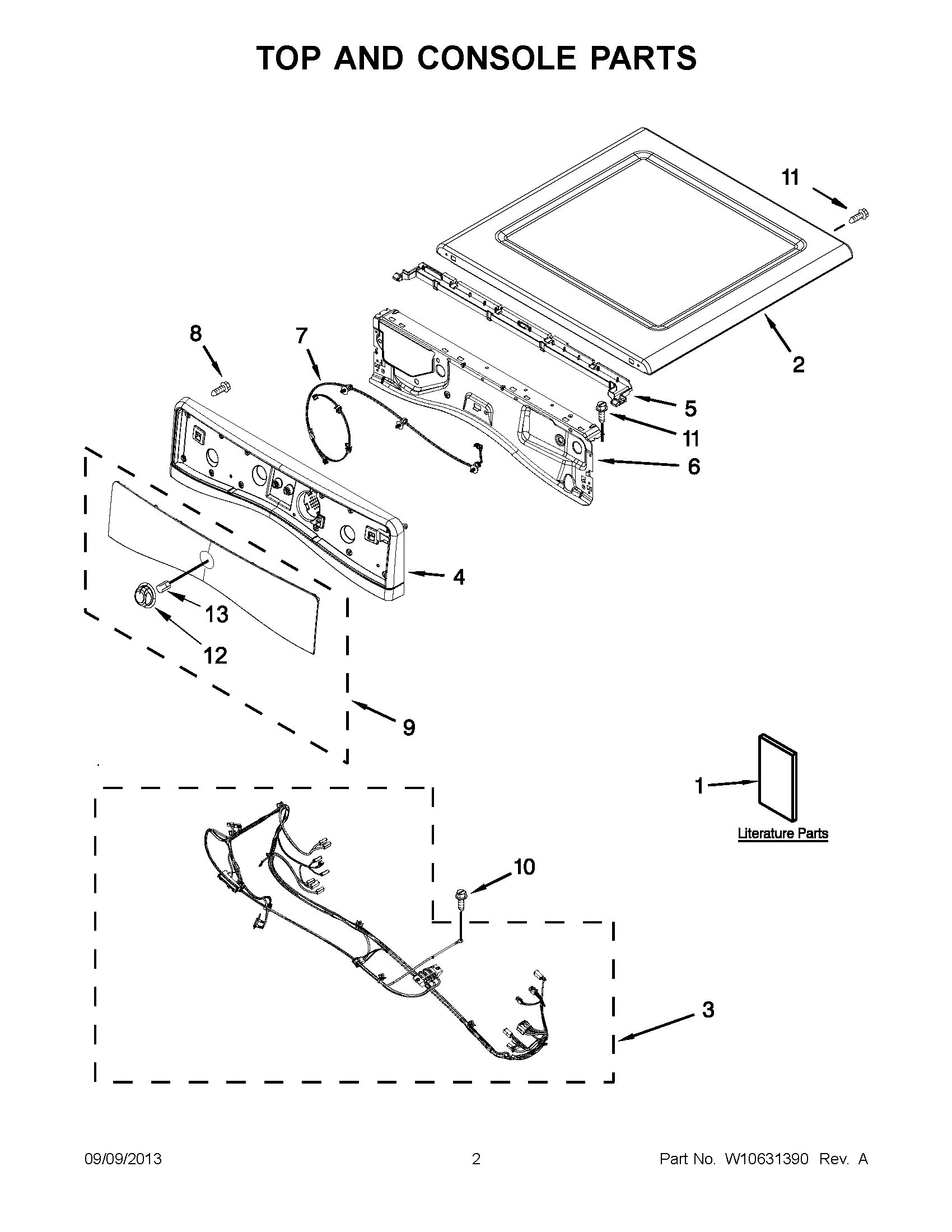

BSG17CCANA0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE AND CARE GUIDE
2WPW10460919 Whirlpool Top
3HARNESS, MAIN
4WPW10463687 Whirlpool Console Assembly
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9IML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12KNOB ASSEMBLY
13WP8536939 Whirlpool Spring Clip
