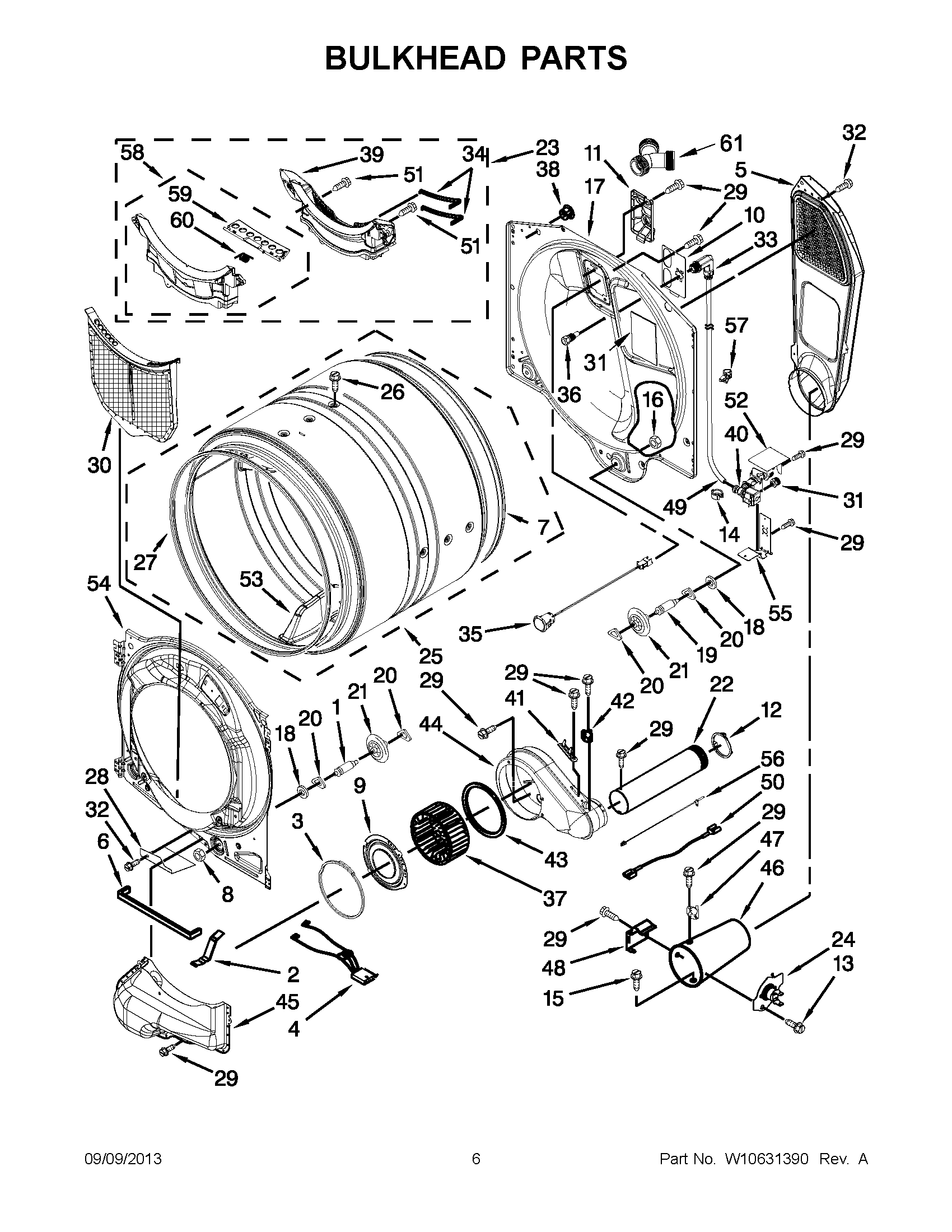

BSG17CCANA0 04 – BULKHEAD PARTS

BSG17CCANA0 04 – BULKHEAD PARTS

Written by

in

BSG17CCANA0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10414388 Whirlpool Clip
3	W10211899 Whirlpool Seal
4	WPW10298258 Whirlpool Wire Harness
5	WPW10293765 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	W11193479 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	WPW10208422 Whirlpool Dryer Light Deflector Cover
11	WPW10656504 Whirlpool Bracket
12	WPW10344699 Whirlpool Collar
14	W10044599 Whirlpool Clip
15	WP693995 Whirlpool Screw
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	HOUSNG-DRYER LINT
24	WPW10181549 Whirlpool Thermal Cutoff
25	W10541657 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W11257251 Whirlpool Shield
29	WP90767 Whirlpool Screw
30	SCREEN – LINT. ALPHA W/FELT
31	W11409002 Whirlpool Pad
32	WP488729 Whirlpool Refrigerator Door Screw
33	WPW10347739 Whirlpool Hose
34	WP3387223 Whirlpool Electrode Assembly
35	ASSEMBLY, DRUM LIGHT
36	WPW10277503 Whirlpool Nozzle
37	WP697772 Whirlpool Dryer Blower Wheel
38	8529007 Whirlpool Plug
39	W11125442 Whirlpool Outer Grille
40	W10815373 Whirlpool Valve
41	WP3392519 Whirlpool Dryer Thermal Fuse
42	WP8577274 Whirlpool Dryer Thermistor
43	WP697770 Whirlpool Blower Cover Plate Seal
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	WP8573824 Whirlpool Funnel
47	W10853395 Whirlpool Thermostat
48	WP338906 Whirlpool Dryer Gas Sensor
50	W10525140 Whirlpool Wire Harness
51	WP3387230 Whirlpool Screw
52	COVER, INLET VALVE
53	W10280771 Whirlpool Drum Baffle
54	W10673491 Whirlpool Bulkhead Assembly
56	WPW10419068 Whirlpool Thermistor
57	WP3391018 Whirlpool Wire Tie
58	W10905013 Whirlpool Door
59	W11156832 Whirlpool Air Grille
60	W11242876 Whirlpool Out Housing
61	WPW10269488 Whirlpool Connector
