BSS25JSTRSS FRESH FOOD SECTION

BSS25JSTRSS FRESH FOOD SECTION

Written by

in

BSS25JSTRSS FRESH FOOD SECTION

Products

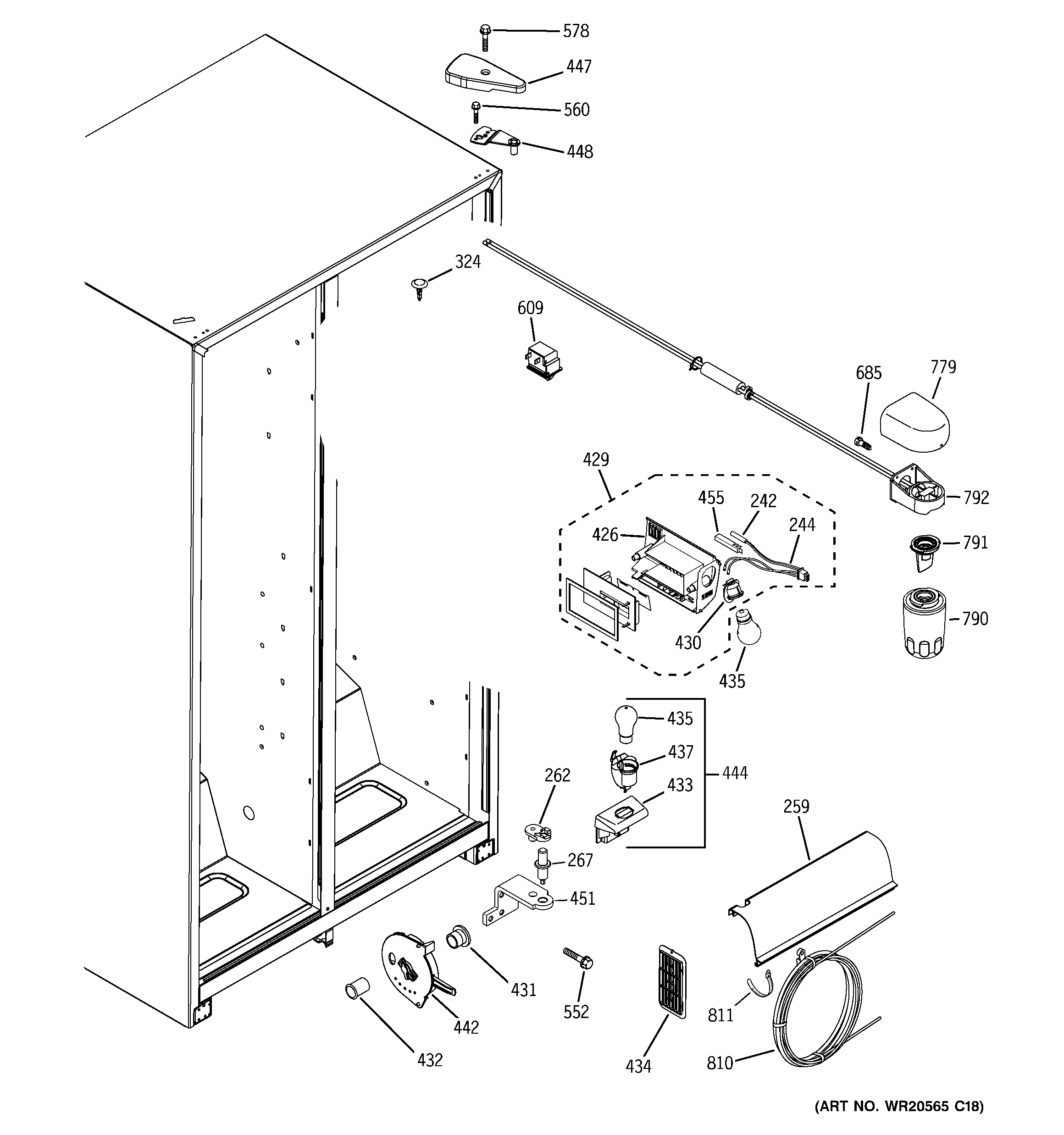

PositionProduct
242GEN WR50X10081
244WR55X10025 GE Refrigerator Temperature Sensor
259SHIELD LIGHT LOWER
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR23X10476 GE Refrigerator Fan Heater Harness
324GEN WR02X7051
426COVER DAMPER
429WR13X10988 GE Refrigerator Damper Cover Assembly
430SOCKET LAMP
431WR2X9299 GE Refrigerator Air Duct Cap Mullion
432WR02X10561 GE Duct Mullion
433HOUSING LAMP SOCKET INT
434GEN WR17X10262
435RANGE ONLY 40W 120V APPL BULB
437SOCKET & TERMINAL
442GEN WR02X10042
444HOUSING LIGHT LWR ASM
447COVER HNG BK
448HINGE TOP & PIN ASM RH
451GEN WR13X10422
455COVER SENSOR FF
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
609GEN WR23X10481
685SCR 8-18 AB HXW 3/4 S
779GEN WR02X10621
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792WR02X45209 GE Manifold MWF
810WATER STORAGE COIL
811WR02X11607 GE Refrigerator Wire Tie
