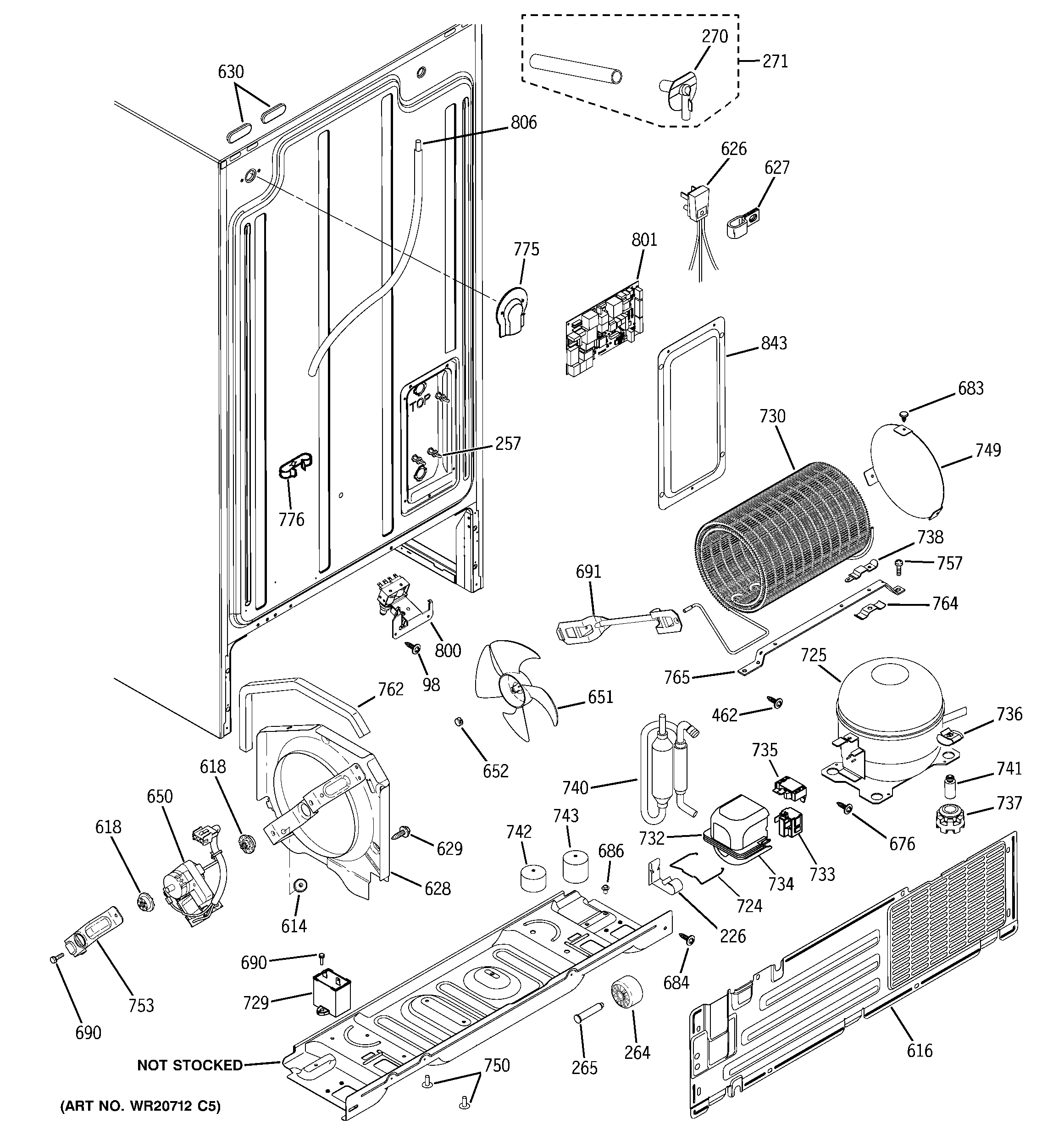

BSS25JSTRSS SEALED SYSTEM & MOTHER BOARD

BSS25JSTRSS SEALED SYSTEM & MOTHER BOARD

Written by

in

BSS25JSTRSS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
98SCR 8-36 T IHW 3/8 S N
226WR02X10558 GE Refrigerator Drain Tube Clip
257FASTENER BOARD
264WR02X10695 GE Refrigerator Wheel
265AXLE WHEEL
270WR02X10967 GE Refrigerator Gasket and Grommet Assembly
271WR17X11168 GROMMET AND TUBE ASM
462SCR 8-18 AB HXW 1/2 S
614BUMPER
616WR82X10103 GE Refrigerator Access Cover
618GROMMET EVAP
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
628GEN WR17X12728
629WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
630GEN WR02X8525
650WR60X10220 GE Refrigerator Condenser Fan Motor
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
683WR02X10562 GE Push Fastener
684WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
686WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690GEN WR01X10645
691WR02X11742 GE Refrigerator Bracket Condenser Fan
724WR02X11999 GE Refrigerator Clip Retainer
725WR87X20798 GE Refrigerator High Side Assembly
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
732GEN WR02X12679
733GEN WR07X10081
734GEN WR02X9169
735WR08X10015 GE Refrigerator Overload Relay
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
743GEN WR02X10588
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753BRACKET EVAP FAN
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X13124 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR55X11072C-includeCORE GE WR55X11072C Whirlpool Refrigerator Control Board with Core
806WR17X11625 GE Refrigerator Plastic Tube
843COVER ENCLOSURE
