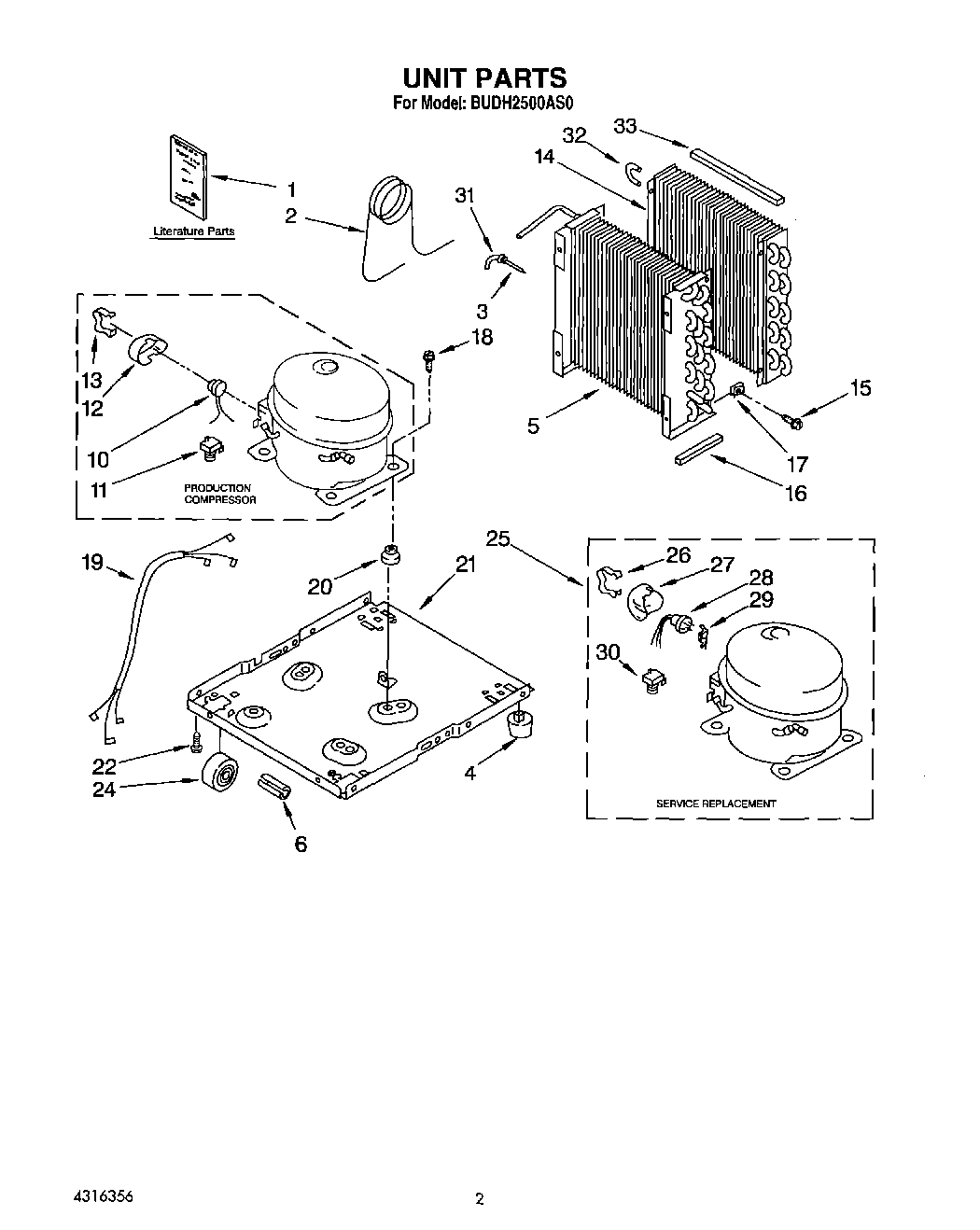

BUDH2500AS0 02 – SECTION

Products

PositionProduct
1Literature Parts (List, Repair Parts)
1Wiring Diagram
1Sheet, Tech
1WPL LIT1162709
2Tube, Restrictor (Length 36.00“)
3Strainer
4Glide (2)
5Condenser
6Pin, Roller (2)
14Evaporator
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22WPW10141604 Whirlpool Screw
24Roller (2)
25Compressor, Service (Complete Assembly)
26Strap
27Cover, Terminal (Production)
28Overload
29Spring, Overload
30Relay, Start
31Bend, Return Evaporator (11)
32Bend, Return Evaporator (4)
33Seal, Evaporator Top
