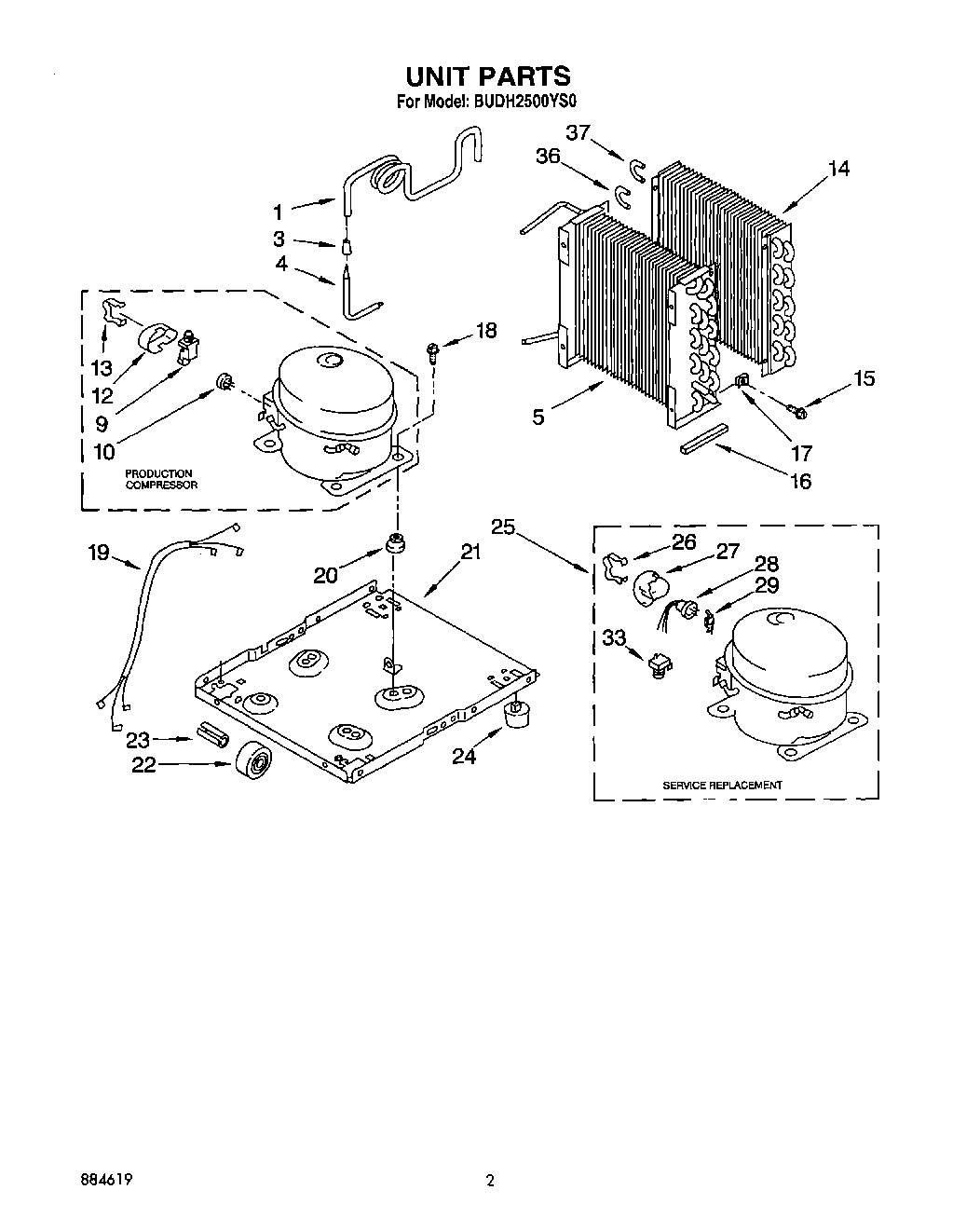

BUDH2500YS0 02 – SECTION

Products

PositionProduct
1Tube, Restrictor (36.00“ Length)
3Strainer
4Tube, Outlet (Includes No.3)
5WPL 1159231
9Relay, Start
10Overload
12Cover, Terminal (Production)
13Strap
14WPL 1159233
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25Compressor, Service (Complete Assembly)
26Retainer, Cover (Service)
27Cover, Terminal (Service)
28Overload (Service)
29Spring, Overload
33Relay, Start (Service)
36Bend, Return Evaporator (11)
37Bend, Return Evaporator (4)
