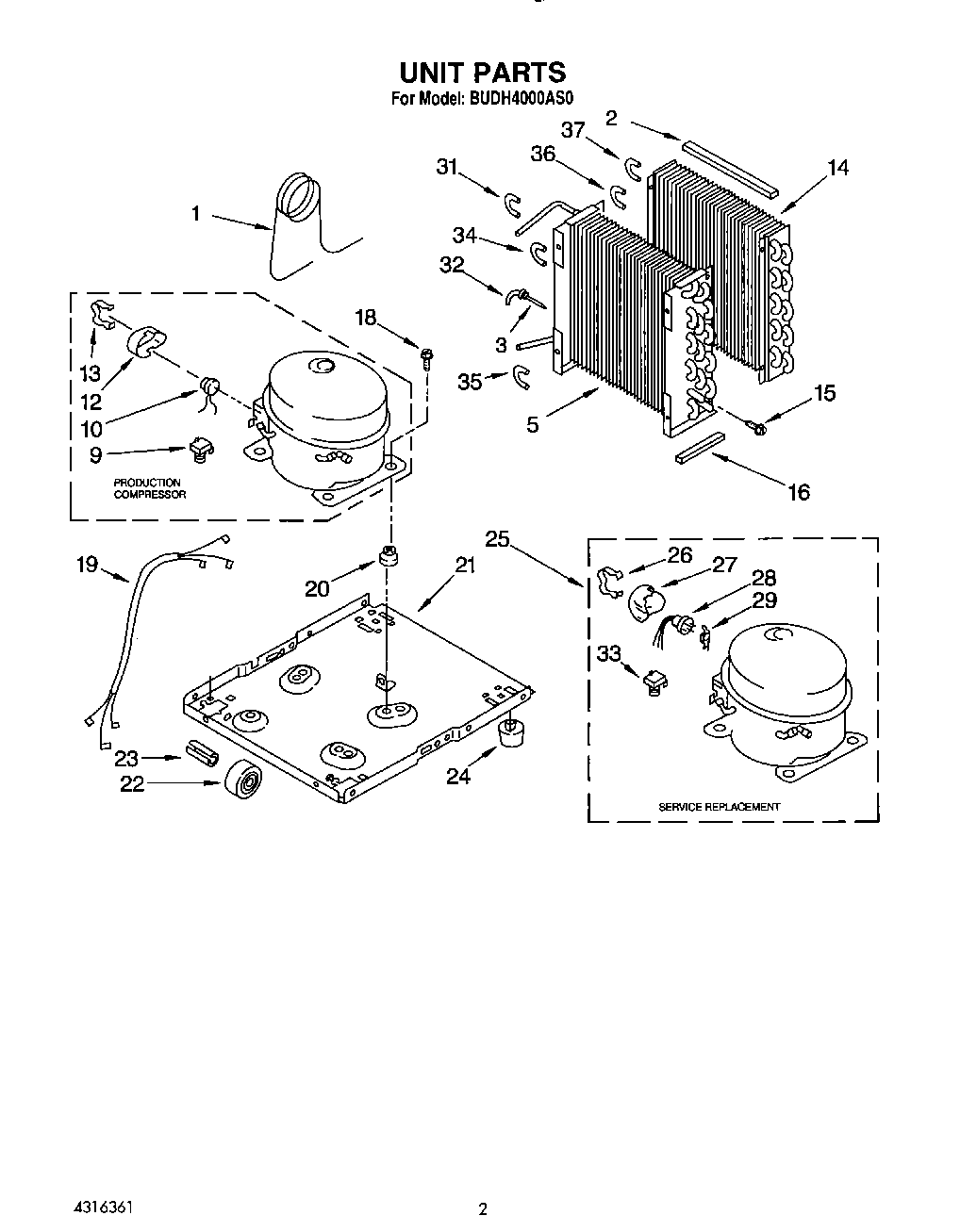

BUDH4000AS0 02 – SECTION

Products

Position	Product
1	Tube, Restrictor (Length 36.00“)
2	Seal, Evaporator Top
3	WP1162526 Whirlpool Air Conditioner Strainer
5	Condenser
9	Relay, Start (Production)
10	Overload (Production)
12	Cover, Terminal (Production)
13	Strap
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Seal
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover (Service)
27	Cover, Terminal (Service)
28	Overload (Service)
29	Spring, Overload
31	Bend, Return Condenser (1)
32	Bend, Return Condenser (10)
33	Relay, Start (Service)
34	Bend, Return Condenser (4)
35	Bend Return
36	Bend, Return Evaporator (11)
37	Bend, Return Evaporator (4)
