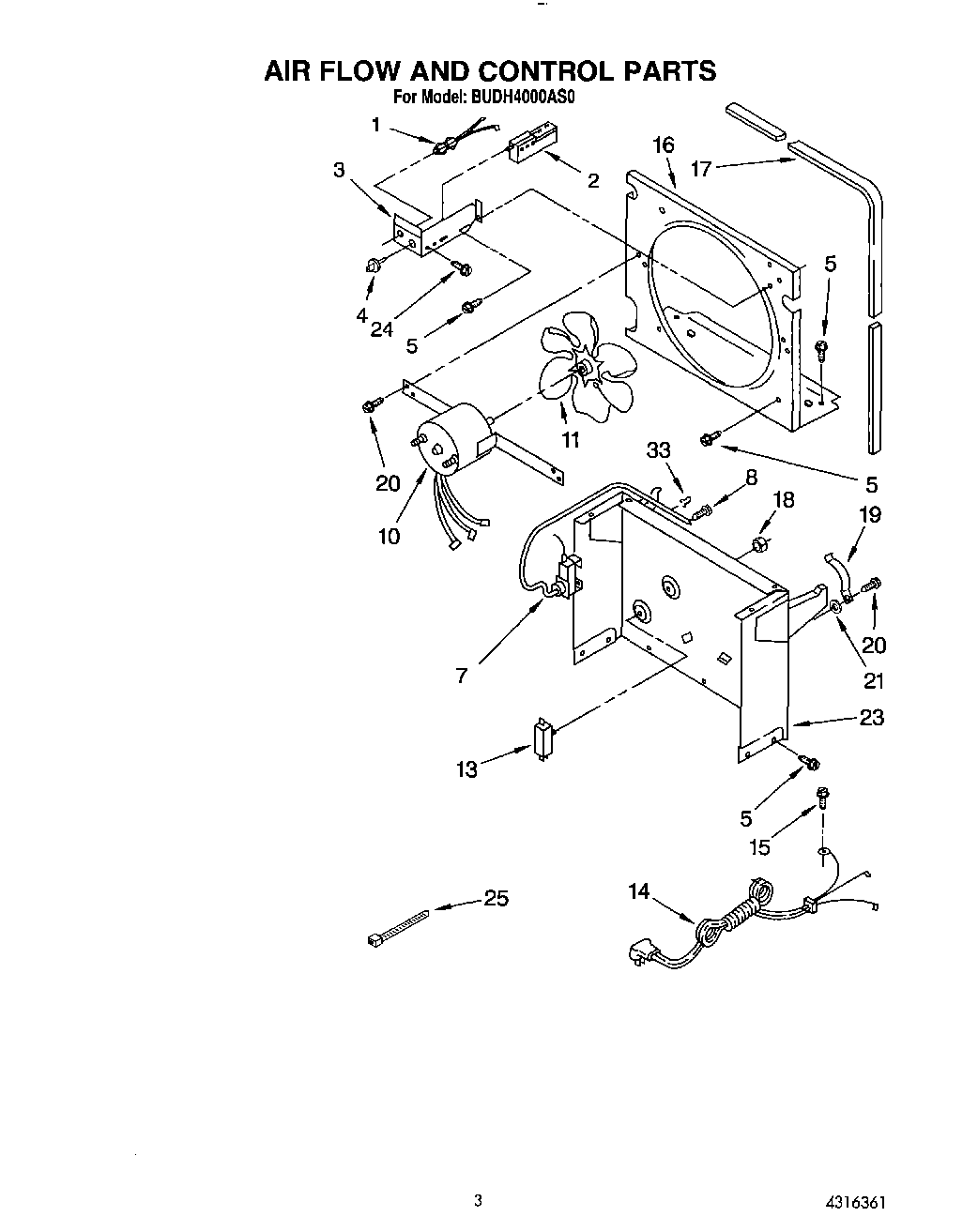

BUDH4000AS0 03 – SECTION

BUDH4000AS0 03 – SECTION

Written by

in

BUDH4000AS0 03 – SECTION

Products

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Humidistat
4WPL 1162670
5Screw, 8 x 3/8
7Thermostat, De-Icer
8WP488234 Whirlpool Air Conditioner Screw
10Motor, Fan
11Blade, Fan
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer (Repair) (.091 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
33Clamp, Tube To Evaporator Mtg (2)
