BUDH4000AS0 04 – SECTION

Products

PositionProduct
List, Repair Parts
WPL LIT1157768
Sheet, Tech
WPL LIT1162709

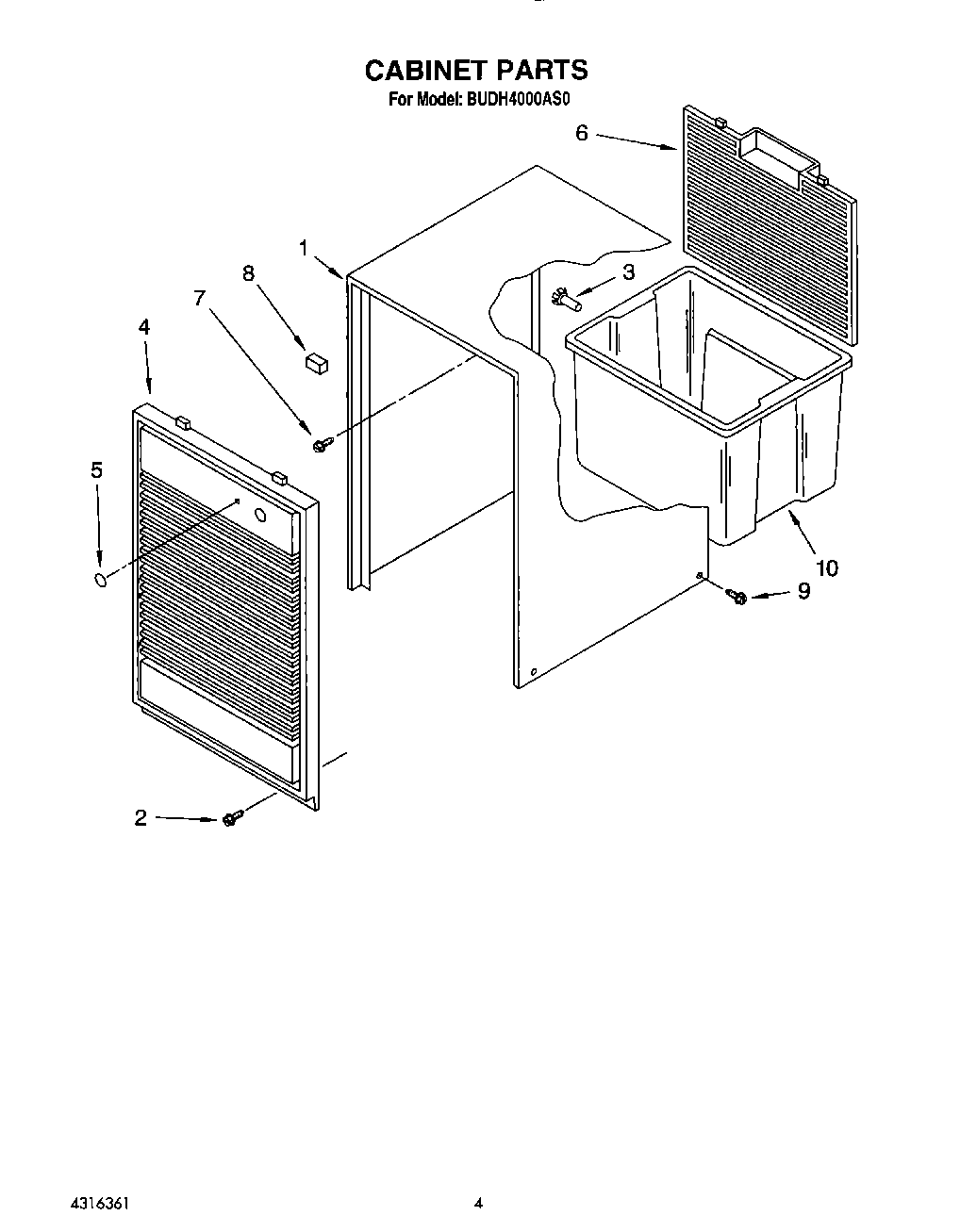

1Cabinet
2WPW10141625 Whirlpool Refrigerator Screw Assembly
3Retainer Pin (Rear Grille)
4Grille, Front Assembly
5Lens, Light
6Grille, Rear
7WP488729 Whirlpool Refrigerator Door Screw
8Spacer, Grille
9Screw
10Cap, Condensate Pan
10Pan, Condensate
10Seal, Ring (Access Valve) (20 – Pack)
10WP16123 Whirlpool Washer
10212643 Whirlpool Refrigerator Permagum Sealer
10978026 Whirlpool Refrigerator Primary Valve
10978027 Whirlpool Refrigerator Primary Valve
10978030 Whirlpool Refrigerator Valve
10WP978025 Whirlpool Refrigerator Valve
10VALVE, ACCESS (1/2“)
10WPL 799833
10Lacquer, Starlight Gray (1/2 Pt. Uncut)
10No Drip Tape (For Sweating Tubes)
10VALVE, ACCESS (5/8“)
