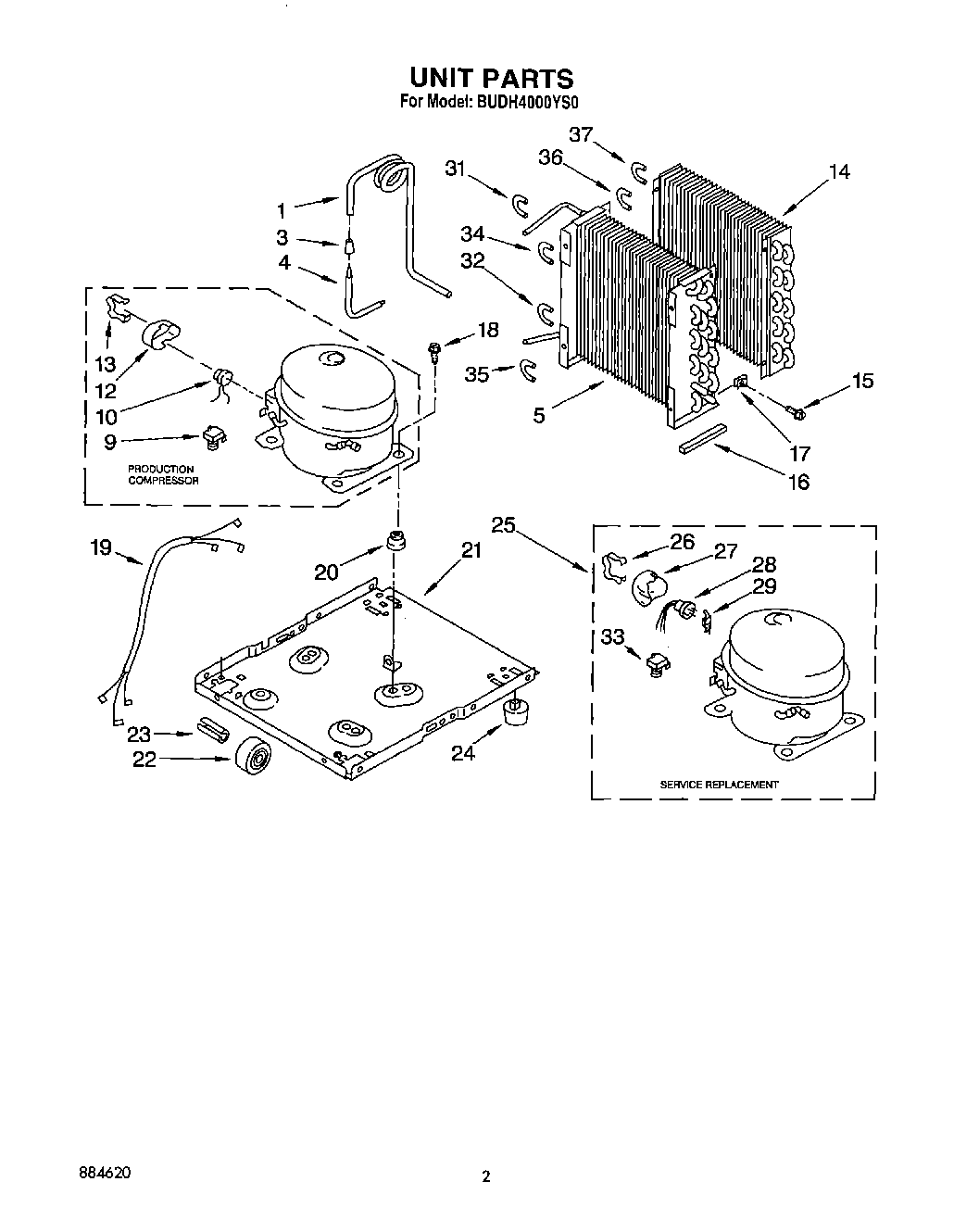

BUDH4000YS0 02 – SECTION

Products

PositionProduct
1Tube, Restrictor (Length 36.0“)
3Strainer
4Tube, Outlet (Includes No.3)
5Condenser
9Relay, Start (Production)
10Overload (Production)
12Cover, Terminal (Production)
13Strap
14Evaporator
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25Compressor, Service (Complete Assembly)
26Retainer, Cover (Service)
27Cover, Terminal (Service)
28Overload (Service)
29Spring, Overload
31Bend, Return Condenser (1)
32Bend, Return Condenser (10)
33Relay, Start (Service)
34Bend, Return Condenser (4)
35WPL 1160080
36Bend, Return Evaporator (11)
37Bend, Return Evaporator (4)
