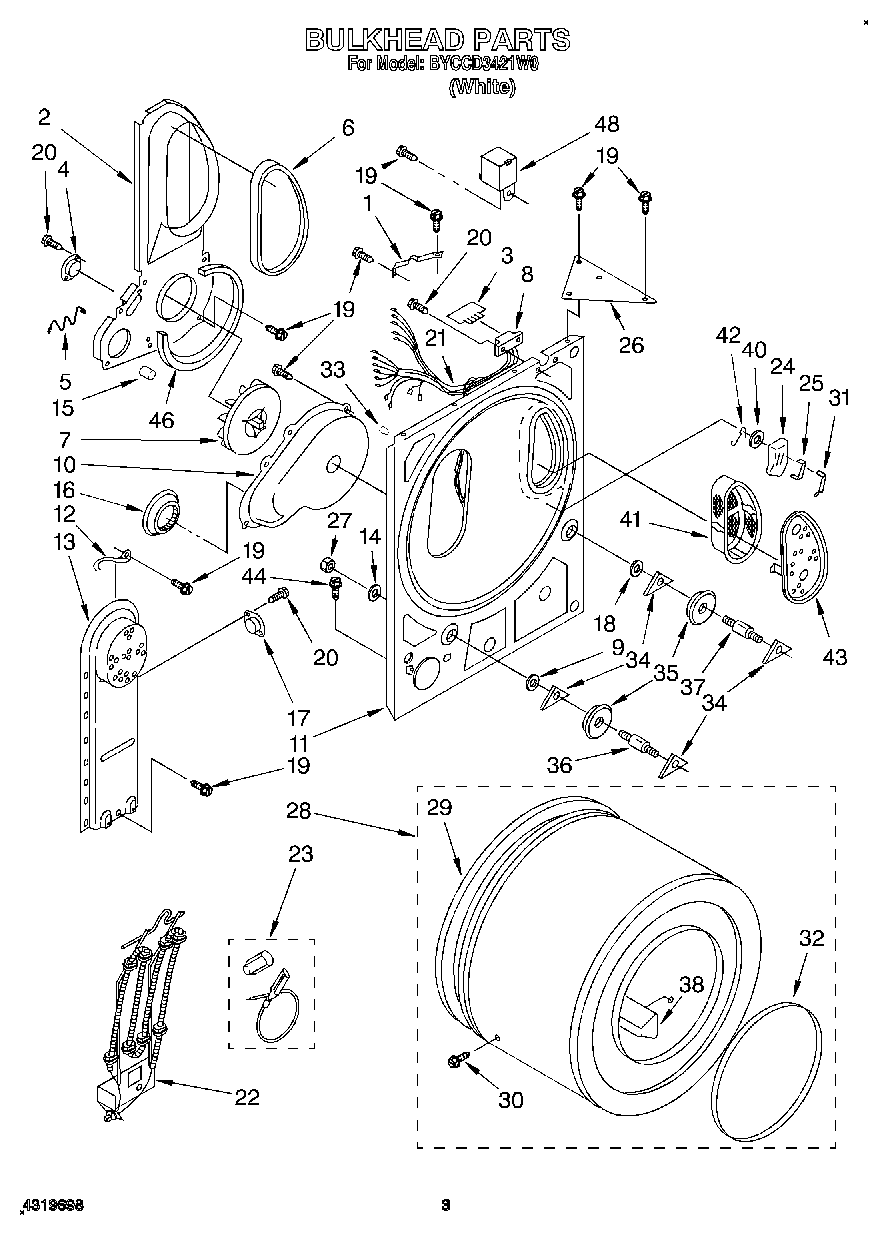

BYCCD3421W0 02 – SECTION

BYCCD3421W0 02 – SECTION

Written by

in

BYCCD3421W0 02 – SECTION

Products

Position	Product
	Literature Parts (Label, Operating Instructions)
	Instructions, Installation
	WPL LIT9831129
	Literature Parts (Label, Wiring Diagram)
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	345396 Whirlpool Clip
2	Air Duct Assembly
3	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
4	WP694674 Whirlpool Cycling Thermostat
5	345965 Whirlpool Guard
6	SEAL
7	WP696426 Whirlpool Wheel
8	3391885 Whirlpool Connector
9	WP3388703 Whirlpool Washer
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	Washer, Support
16	W11233063 Whirlpool Shield Assembly
17	Thermostat, 180~F (82~C)
17	(Alt.)
18	Washer, Support
19	SCREW
20	WPW10139210 Whirlpool Screw
21	Harness, Wiring
22	279506 Whirlpool Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
24	SENSOR KIT
25	WP348859 Whirlpool Electrode Assembly
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw, 11-16 x 7/8
31	WP348860 Whirlpool Electrode
32	WP3394508 Whirlpool Bearing Ring
33	W10491983 Whirlpool Tine Tip
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	685207 Whirlpool Dryer Baffle
40	WP298877 Whirlpool Washer
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42	WP342267 Whirlpool Clip
44	WP3390631 Whirlpool Screw
46	Seal, Air Duct
48	WP694419 Whirlpool Buzzer Adjuster
