BYCCD3421W2 01 – SECTION

Products

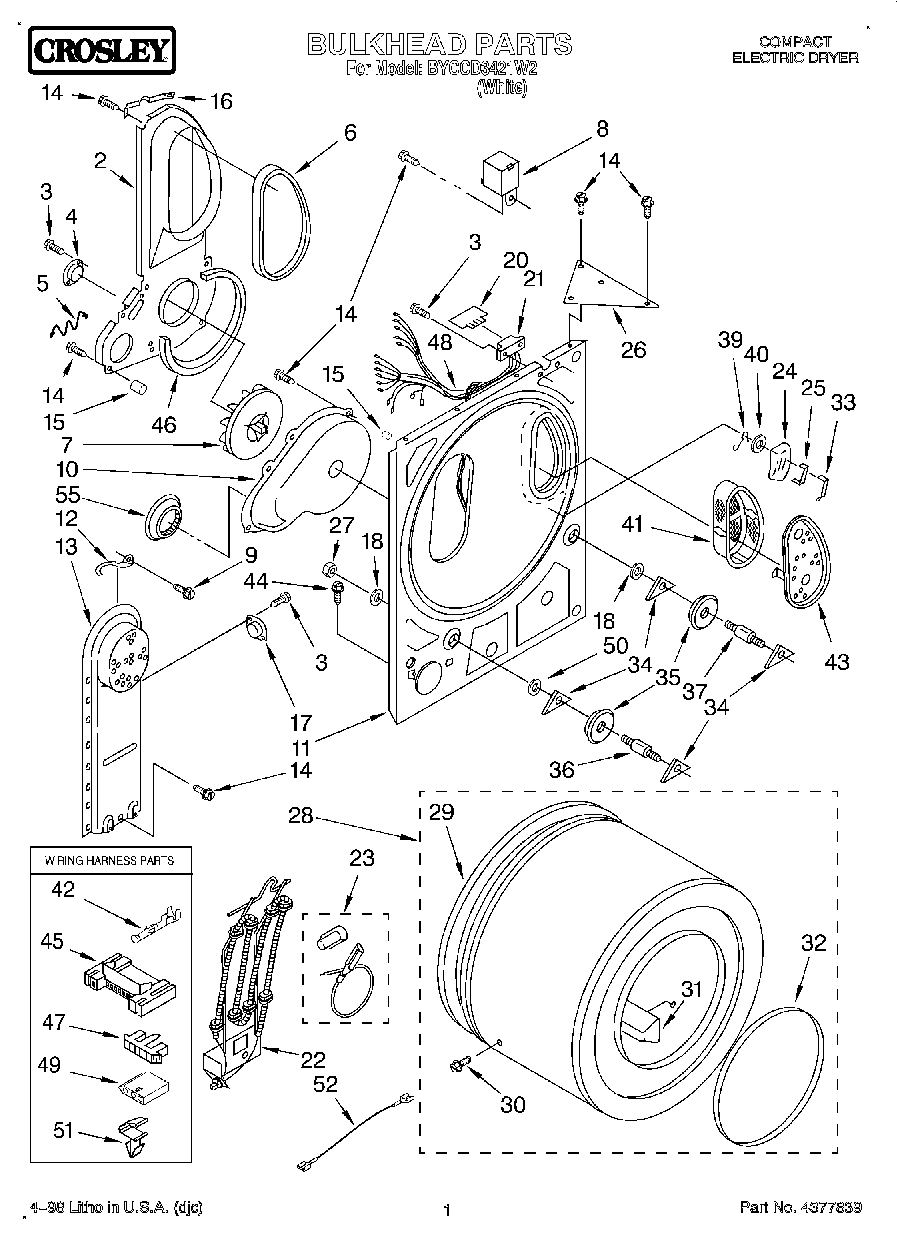

Position	Product
	350930 Whirlpool White Spray Paint
	Literature Parts (Instructions, Installation)
	Literature Parts (Label, Operating Instructions)
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL LIT9831129
	350938 Whirlpool Spray Gun
	WPL LIT9831728
2	Air Duct Assembly
3	WPW10139210 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	345965 Whirlpool Guard
6	SEAL
7	WP696426 Whirlpool Wheel
8	WP694419 Whirlpool Buzzer Adjuster
9	WP489463 Whirlpool Refrigerator Screw
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	345396 Whirlpool Clip
17	Thermostat, 180~F (82~C)
17	(Alt.)
18	WP348197 Whirlpool Washer Assembly
20	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21	3391885 Whirlpool Connector
22	279506 Whirlpool Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
24	SENSOR KIT
25	WP348859 Whirlpool Electrode Assembly
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
33	WP348860 Whirlpool Electrode
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
39	WP342267 Whirlpool Clip
40	WP298877 Whirlpool Washer
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42	WP94614 Whirlpool Terminal
44	WP3390631 Whirlpool Screw
45	3395683 Whirlpool Connector
46	Seal, Air Duct
47	Connector, Timer
48	Harness, Wiring
49	3936144 Whirlpool Connector
50	WP3388703 Whirlpool Washer
51	WP3394427 Whirlpool Clip
52	Wire, Jumper (Red/White)
55	W11233063 Whirlpool Shield Assembly
