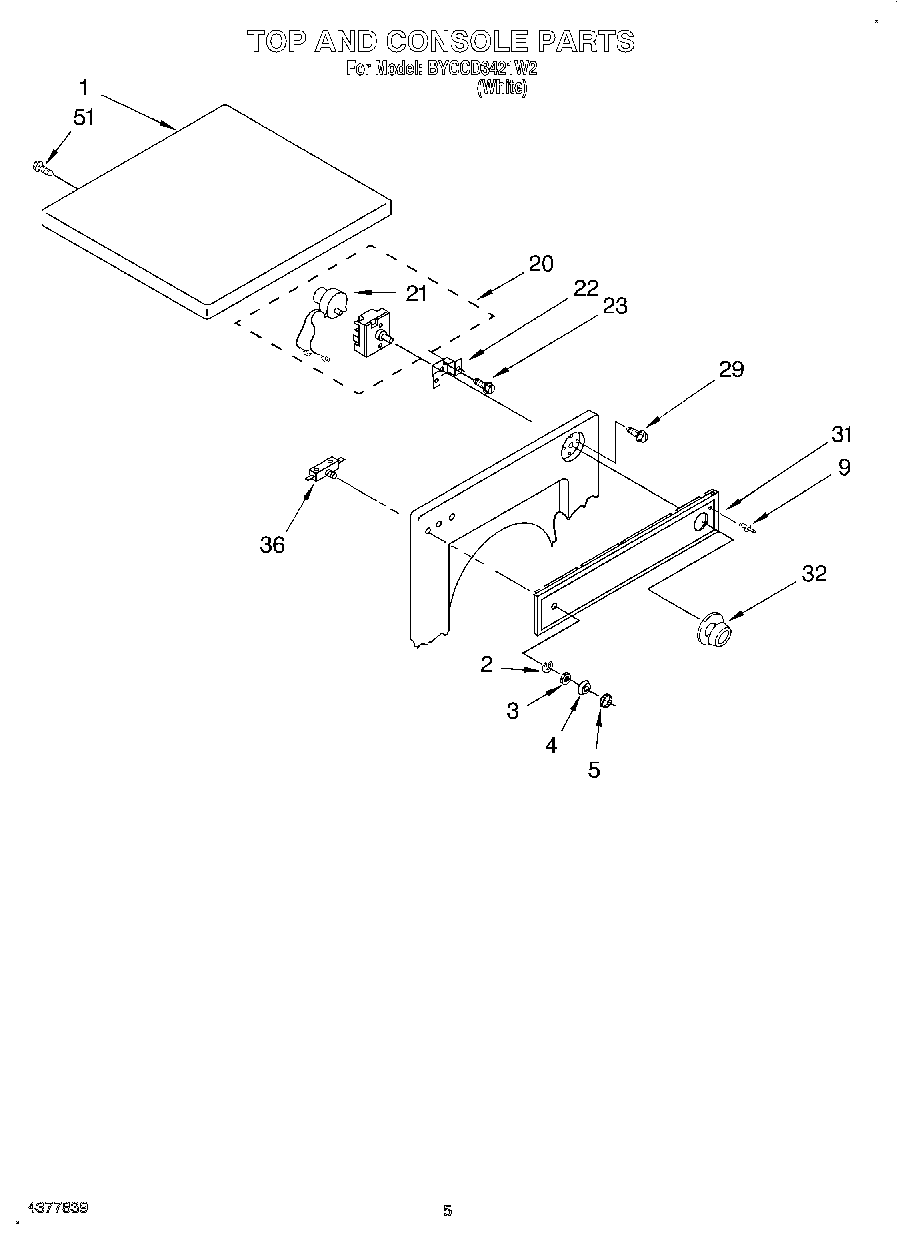

BYCCD3421W2 03 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
2Lockwasher
3Nut, Hex
4Ring, Trim
5Nut, Knurled
9Rivet, Plastic (4)
20WP8563881 Whirlpool Timer
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23WP3400882 Whirlpool Screw
29WPW10139210 Whirlpool Screw
31Panel, Control
32Timer Knob Assembly
36Switch, Push-To-Start
51SCREW
