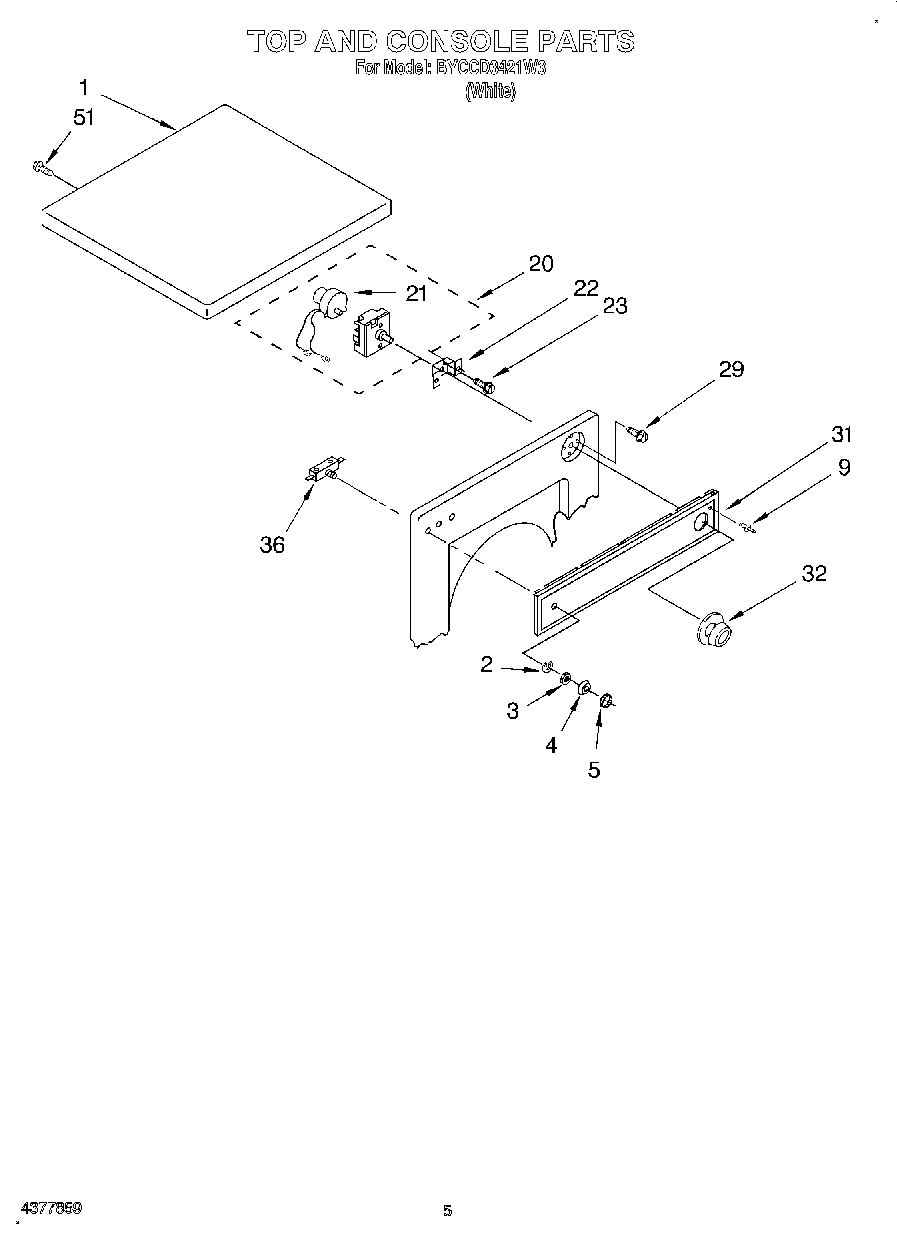

| 1 | 345703 Whirlpool White Maintop |
| 2 | Lockwasher |
| 3 | Nut, Hex |
| 4 | Ring, Trim |
| 5 | Nut, Knurled |
| 9 | Rivet, Plastic (4) |
| 20 | WP8563881 Whirlpool Timer |
| 21 | (Timer Motor Not Serviceable) |
| 22 | 348171 Whirlpool Bracket |
| 23 | WP3400882 Whirlpool Screw |
| 29 | WPW10139210 Whirlpool Screw |
| 31 | Panel, Control |
| 32 | Timer Knob Assembly |
| 36 | Switch, Push-To-Start |
| 51 | SCREW |
