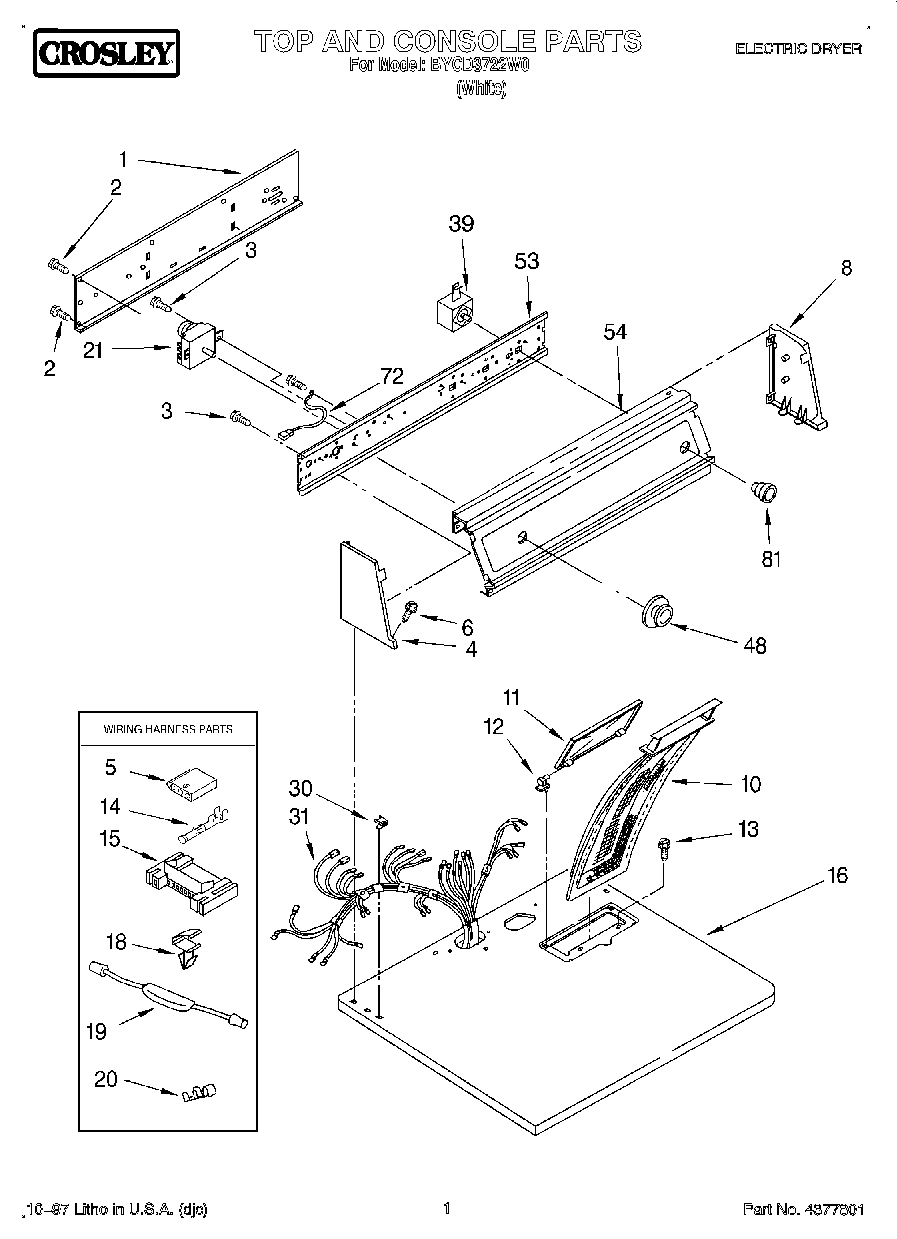

BYCD3722W0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Warning
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Use & Care
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3397618
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	Connector (Door Switch)
6	WP388326 Whirlpool Screw
8	Cap, End (R.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
15	3395683 Whirlpool Connector
16	Top (White)
18	WP3394427 Whirlpool Clip
19	279872 Whirlpool Resistor
20	W10113937 Whirlpool Clamp
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	WP3957800 Whirlpool Knob
