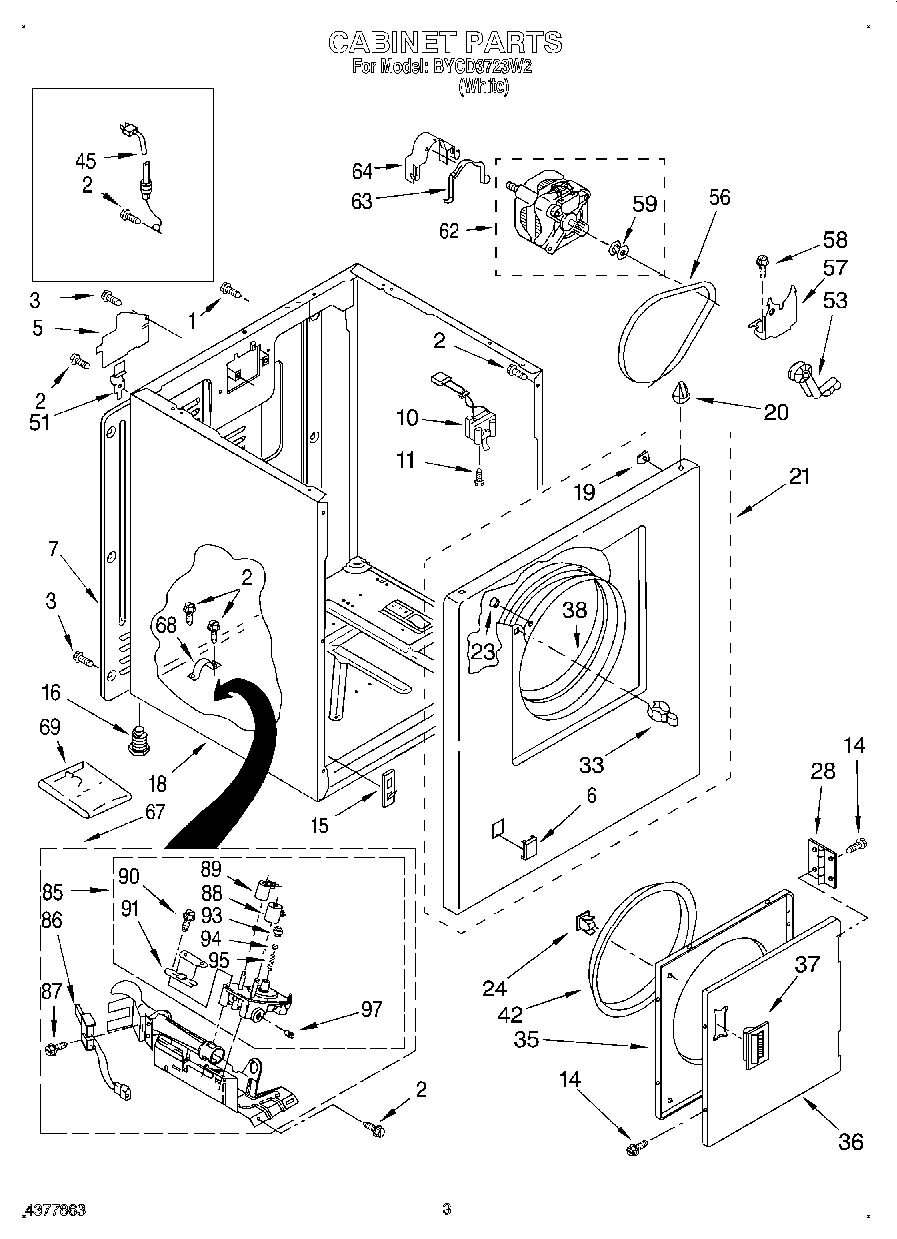

BYCD3723W2 02 – CABINET

BYCD3723W2 02 – CABINET

Written by

in

BYCD3723W2 02 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
5W11539855 Whirlpool Refrigerator Pump
6Plug, Front Panel (White)
7280040 Whirlpool Rear Panel
10WP3406102 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
14WP694091 Whirlpool Screw
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (White)
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
28WP348023 Whirlpool Hinge
33279570 Whirlpool Dryer Door Latch Kit
35280077 Whirlpool Door
36WP348205 Whirlpool Door
37WP686711 Whirlpool Door Handle
38279264 Whirlpool Bearing and Seal Kit
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67WPL 3402844
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
85279923 Whirlpool Gas Valve
86279311 Whirlpool Dryer Flat Igniter with Bracket
87WPW10366705 Whirlpool Screw
88279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90694421 Whirlpool Screw Assembly
91694538 Whirlpool Bracket
93WP694424 Whirlpool Limiter
94WP694423 Whirlpool Regulator
95WP694422 Whirlpool Spring
97W10295523 Whirlpool Plug
