BYCD3723W2 04 – BULKHEAD

BYCD3723W2 04 – BULKHEAD

Written by

in

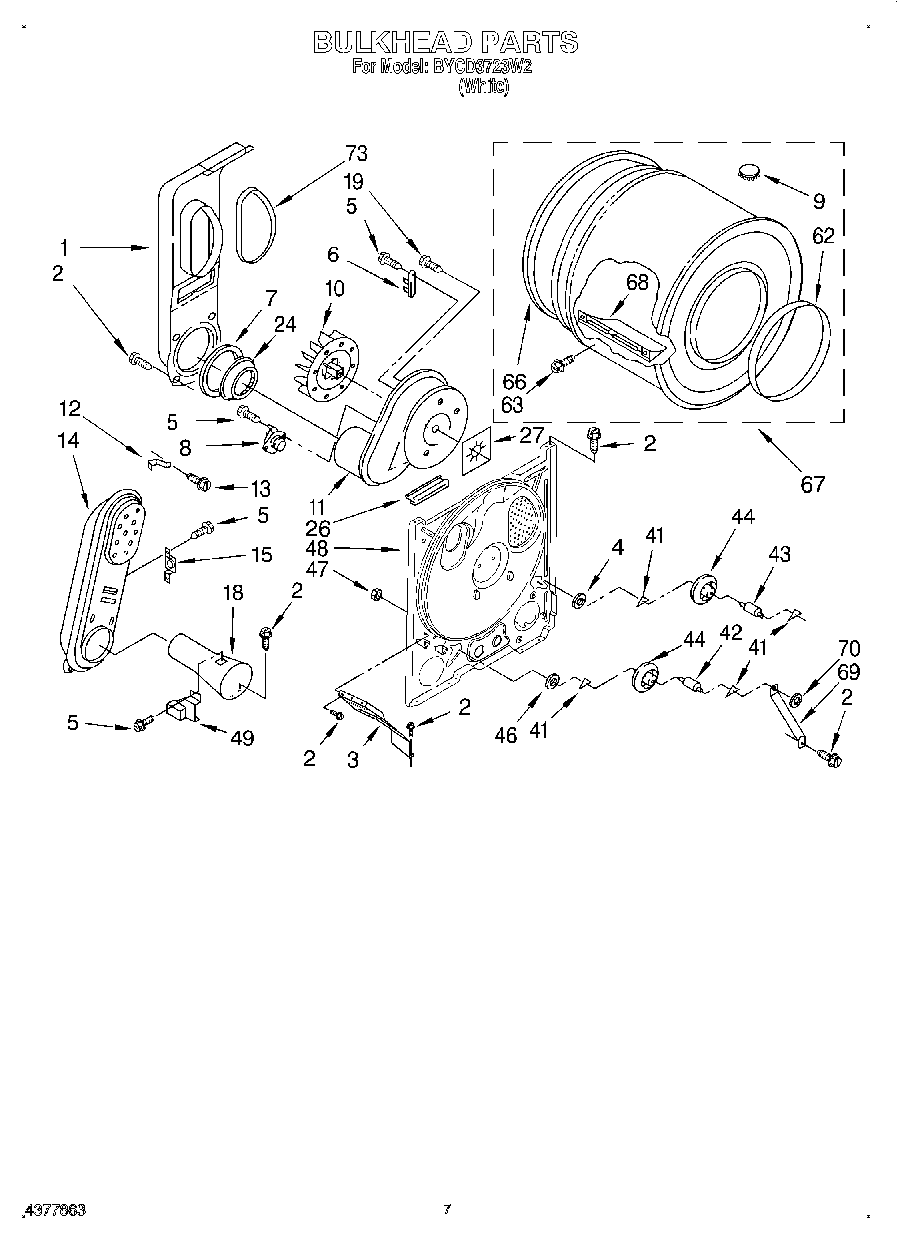

BYCD3723W2 04 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2SCREW
3W11398682 Whirlpool Bracket
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7W11415783 Whirlpool Seal
8WP694674 Whirlpool Cycling Thermostat
98066086 Whirlpool Plug
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP489463 Whirlpool Refrigerator Screw
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
18WP8066048 Whirlpool Funnel
19WP693995 Whirlpool Screw
24W11233063 Whirlpool Shield Assembly
26686889 Whirlpool Pad
27Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
