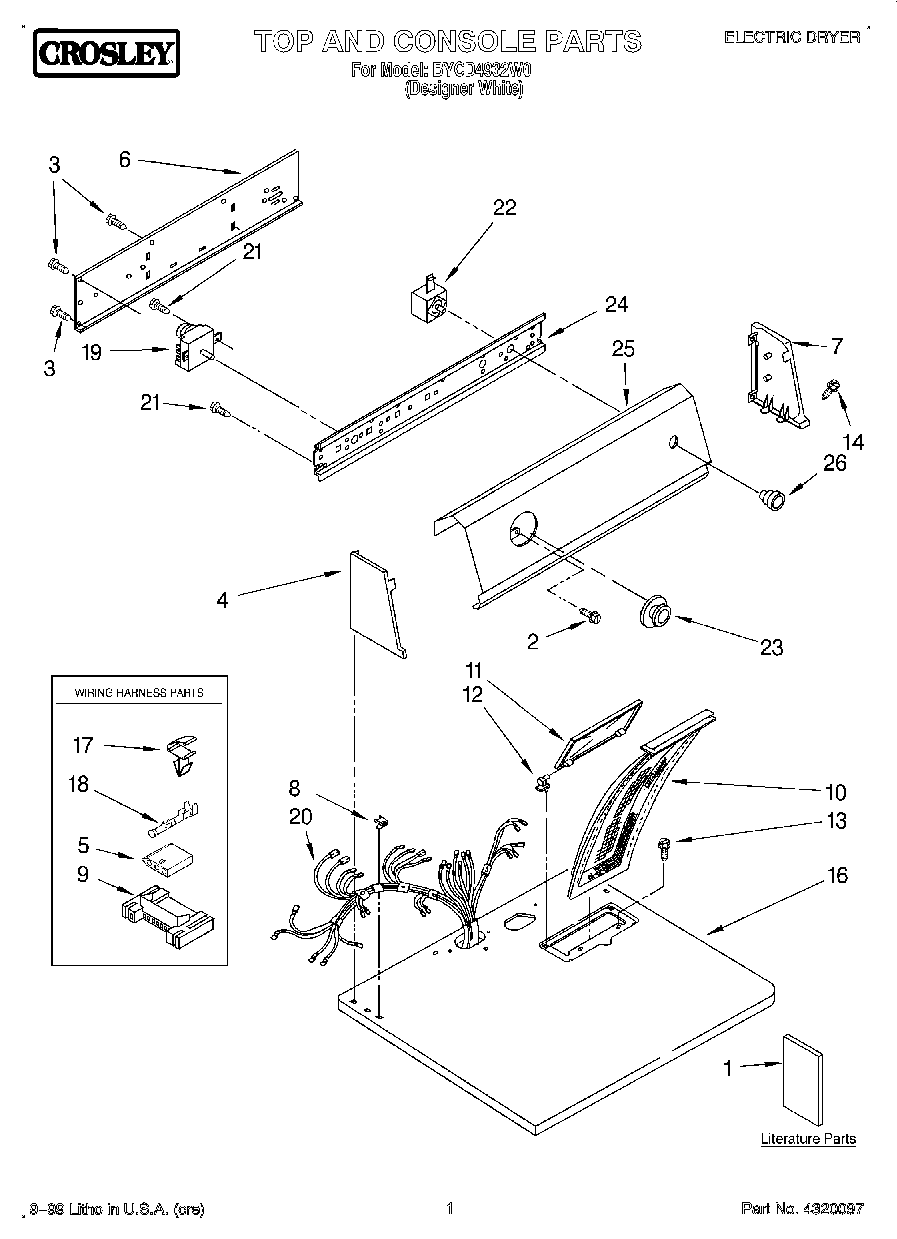

BYCD4932W0 01 – SECTION

BYCD4932W0 01 – SECTION

Written by

in

BYCD4932W0 01 – SECTION

Products

PositionProduct
Dryer
1Label, Wiring Diagram
1WPL LIT3397618
1LITERATURE PARTS (Use & Care Guide)
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
53936144 Whirlpool Connector
6Panel, Rear Console
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP3976569 Whirlpool Timer
20Harness, Wiring
21WPW10139210 Whirlpool Screw
22WP3395382 Whirlpool Push To Start Switch
23Timer Knob Assembly
24Bracket, Control
25Panel, Control
26WP3957800 Whirlpool Knob
26Almond (Uncut)
26WP72107 Whirlpool Touchup
26799344 Whirlpool Refrigerator Paint
2672017 Whirlpool Appliance Touch-Up Paint White
26350956 Whirlpool Spray Assembly
26350938 Whirlpool Spray Gun
26350930 Whirlpool White Spray Paint
