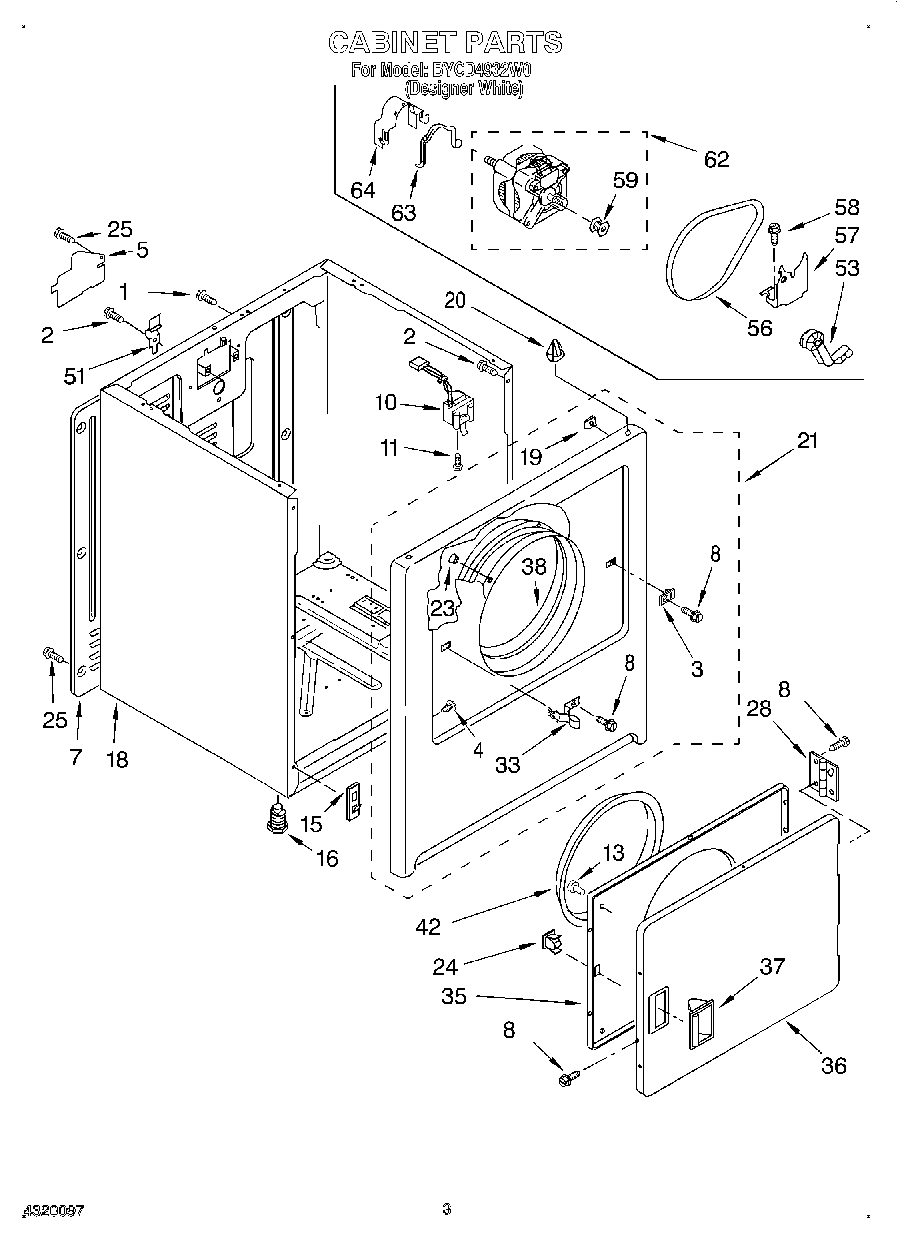

BYCD4932W0 02 – SECTION

BYCD4932W0 02 – SECTION

Written by

in

BYCD4932W0 02 – SECTION

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP3403630 Whirlpool Plug
4Plug, Hinge Hole (4) (Almond)
4WP3404413 Whirlpool Plug
5W11539855 Whirlpool Refrigerator Pump
7280040 Whirlpool Rear Panel
8WP488627 Whirlpool Refrigerator Screw
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
13238614 Whirlpool Bumper Hinge
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
18Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel Front Assembly
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP693995 Whirlpool Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35Door, Rear
36WP3403361 Whirlpool Door
37WP3405184 Whirlpool White Door Handle
38279264 Whirlpool Bearing and Seal Kit
42SEAL-DOOR DRYER
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
