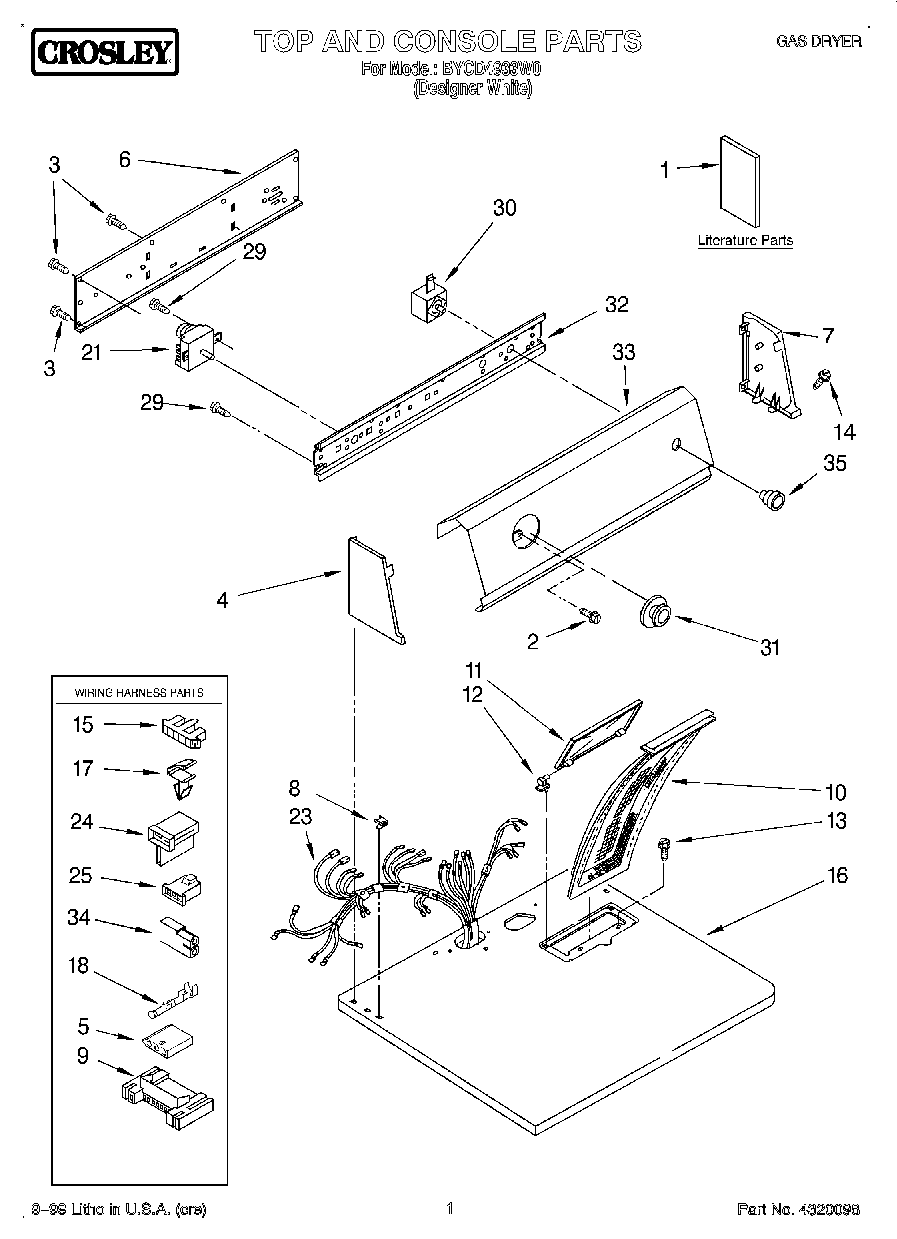

BYCD4933W0 01 – TOP AND CONSOLE, LIT/OPTIONAL

BYCD4933W0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

BYCD4933W0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Label, Wiring Diagram
1LITERATURE PARTS (Use & Care Guide)
1Instructions, Installation
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
53936144 Whirlpool Connector
6Panel, Rear Console
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top (White)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP3976569 Whirlpool Timer
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP3395382 Whirlpool Push To Start Switch
31Timer Knob Assembly
32Bracket, Control
33Panel, Control
34Receptacle, Latching (2-Way) (Uses Terminal 94614)
35350938 Whirlpool Spray Gun
35350956 Whirlpool Spray Assembly
3572017 Whirlpool Appliance Touch-Up Paint White
35799344 Whirlpool Refrigerator Paint
35WP72107 Whirlpool Touchup
35Almond (Uncut)
35WP3957800 Whirlpool Knob
35350930 Whirlpool White Spray Paint
