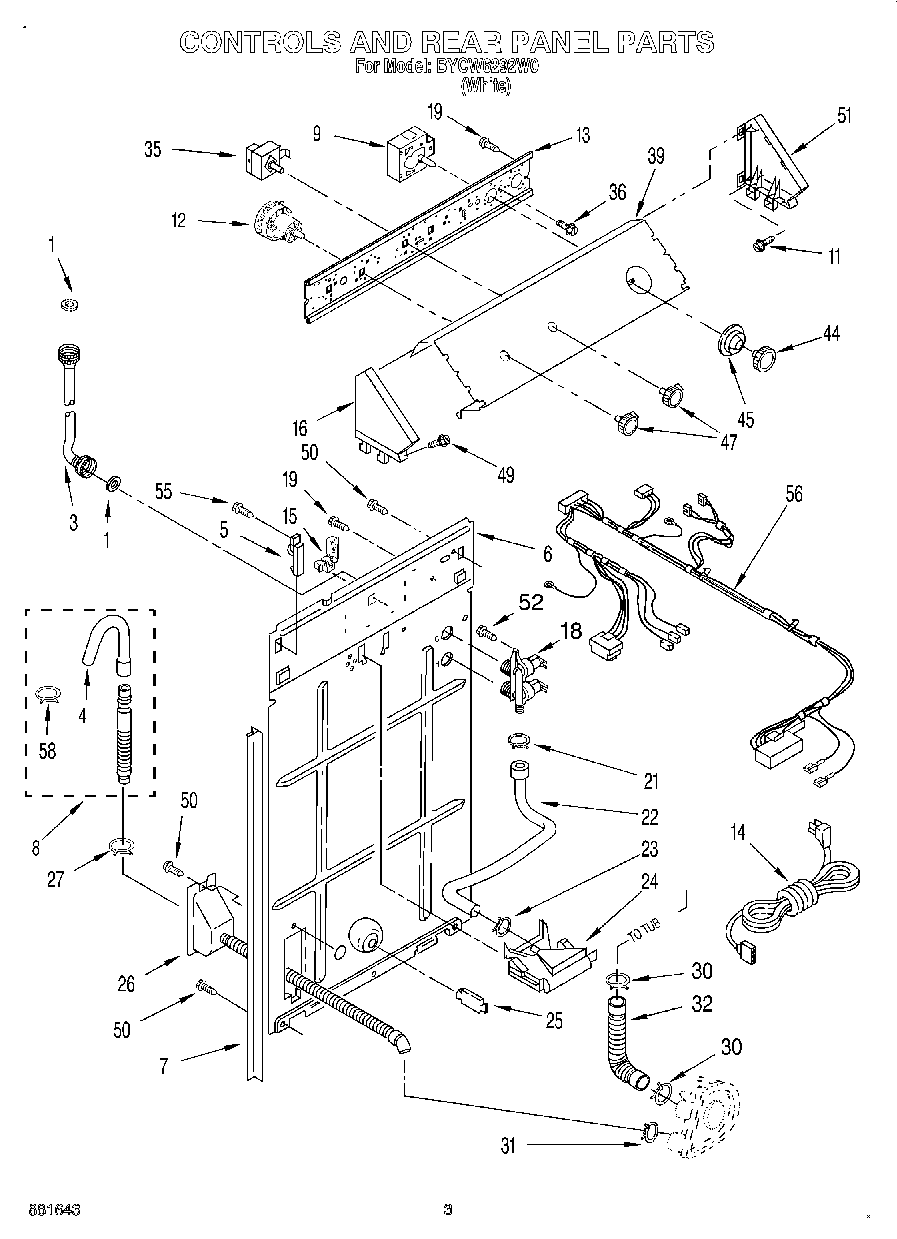

BYCW6292W0 02 – CONTROLS AND REAR PANEL

BYCW6292W0 02 – CONTROLS AND REAR PANEL

Written by

in

BYCW6292W0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
9WP3948357 Whirlpool Timer Assembly
11WP90767 Whirlpool Screw
12W10339228 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (White)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
35WPW10168256 Whirlpool Temperature Switch
36WP3400064 Whirlpool Screw
39Panel, Console
44Knob, Timer
45Dial, Timer
47Knob, Control
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (White)
52WP9740848 Whirlpool Dishwasher Screw
55WP308685 Whirlpool Microwave Screw
56Harness, Wiring (For Detail See Parts Page) Also See Clips
58WP3357331 Whirlpool Clamp
