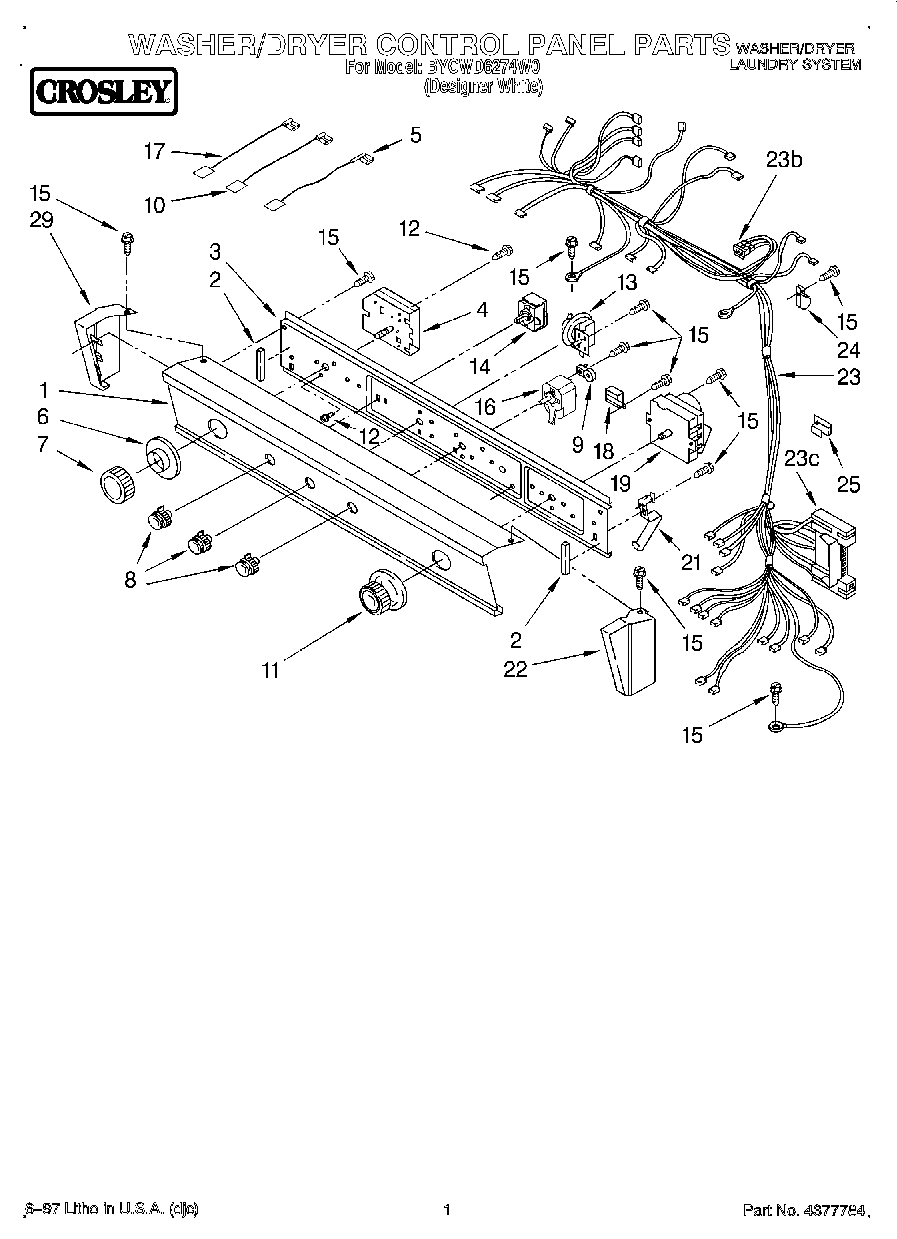

BYCWD6274W0 01 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1Panel, Control
23390688 Whirlpool Bumper Assembly
3Bracket, Control (Includes Illus. 2)
4WP3948357 Whirlpool Timer Assembly
5Wire, Jumper (Black)
6Dial (Washer)
7WP3364293 Whirlpool Timer Knob
8WP3957796 Whirlpool Knob
9279872 Whirlpool Resistor
10Wire, Jumper (Black)
11WP3957750 Whirlpool Knob
12WP356418 Whirlpool Screw
13Switch, Pressure
14Switch, Water Temperature (Alt.)
15WP3390631 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17Wire, Jumper (Blue)
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23C3395683 Whirlpool Connector
23Harness – Dryer
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
29End Cap (LH)
