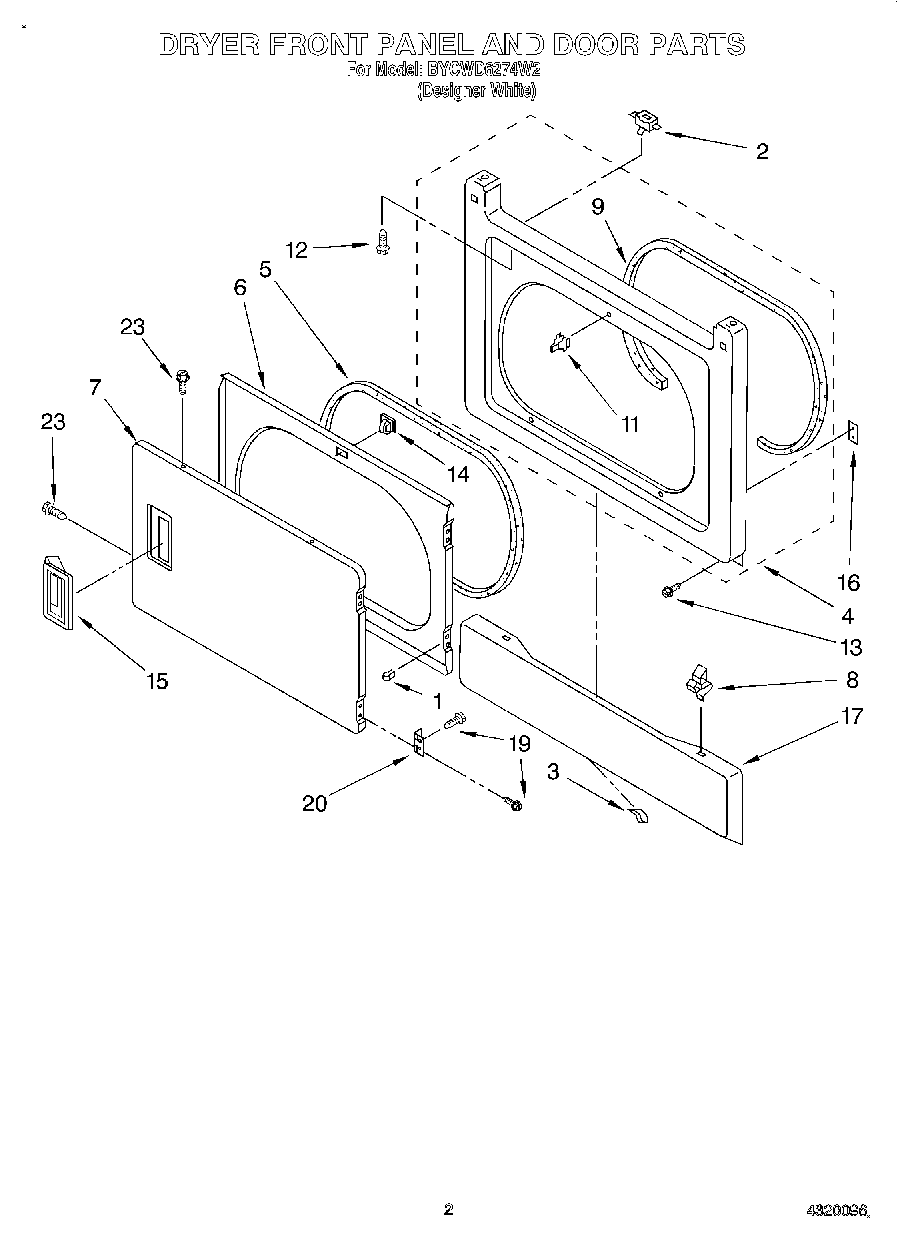

BYCWD6274W2 02 – DRYER FRONT PANEL AND DOOR

BYCWD6274W2 02 – DRYER FRONT PANEL AND DOOR

Written by

in

BYCWD6274W2 02 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1Nut, “U“ (4)
2WP3391902 Whirlpool Lid Switch
3WP98234 Whirlpool Nut
4279718 Whirlpool Panel
5WP3390735 Whirlpool Door Seal
6280083 Whirlpool Rear Door
7W11663440 Whirlpool Door
8WP3388229 Whirlpool Dryer Spring Clip
9WP3387242 Whirlpool Seal
12WP3395530 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
14279570 Whirlpool Dryer Door Latch Kit
153389522 Whirlpool Handle
16WP3390902 Whirlpool Clip
173388958 Whirlpool Panel
19WP488627 Whirlpool Refrigerator Screw
20W11175815 Whirlpool Hinge
23WP694091 Whirlpool Screw
