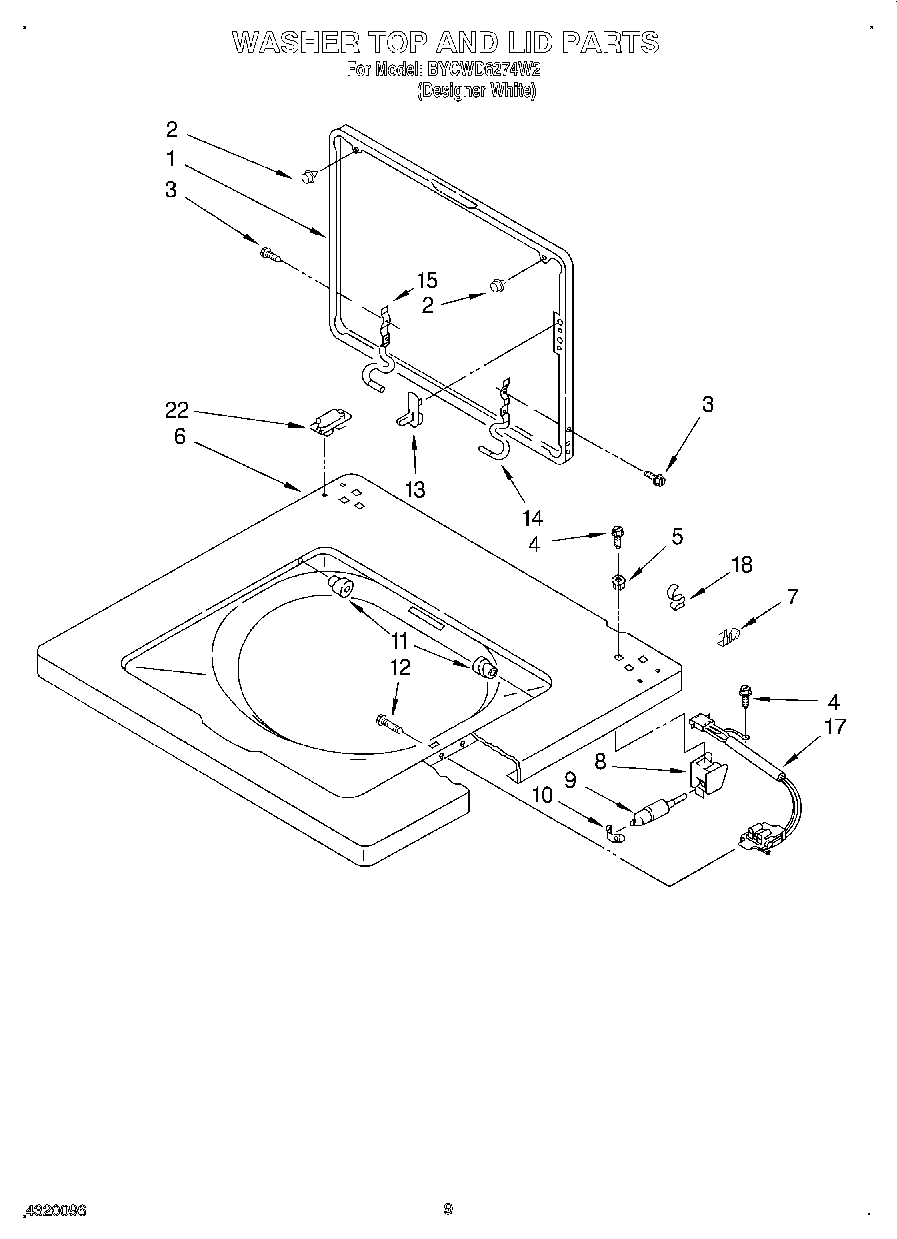

BYCWD6274W2 06 – WASHER TOP AND LID

BYCWD6274W2 06 – WASHER TOP AND LID

Written by

in

BYCWD6274W2 06 – WASHER TOP AND LID

Products

PositionProduct
1Lid (White)
2WP9724509 Whirlpool Bumper
3SCREW
4SCREW
5WP692400 Whirlpool Nut
6Top
7W10113937 Whirlpool Clamp
83354020 Whirlpool Bracket
9WP3350152 Whirlpool Retainer
10Clip, Retainer
11WP21258 Whirlpool Washer Lid Hinge Bearing
12WP3356311 Whirlpool Screw
13WP358684 Whirlpool Strike Assembly
143350101 Whirlpool Hinge
153350102 Whirlpool Hinge Assembly
17WP3355458 Whirlpool Lid Switch
18WP90016 Whirlpool Clip
22W11116924 Whirlpool Locator
