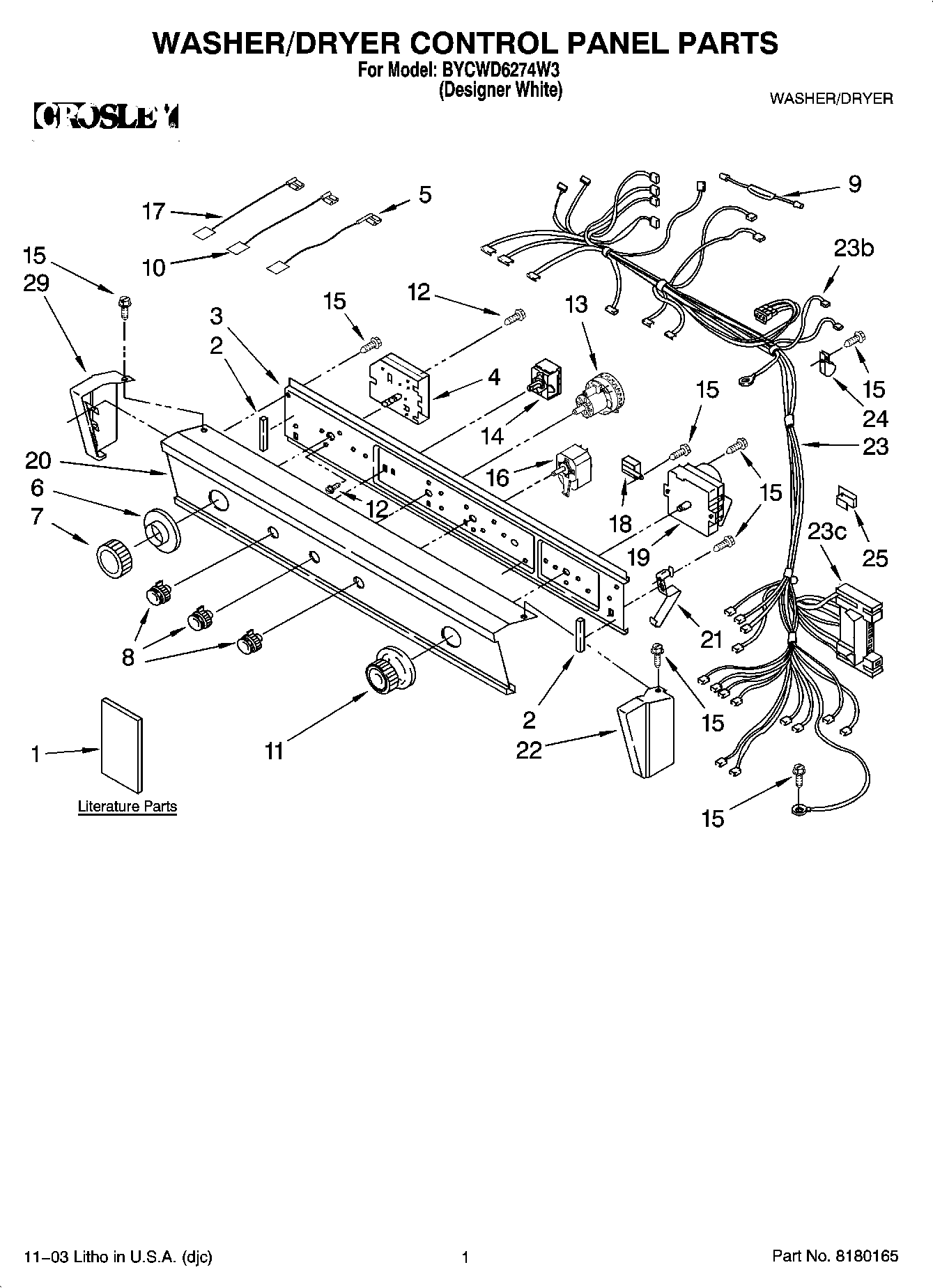

BYCWD6274W3 01 – WASHER/DRYER CONTROL PANEL PARTS

BYCWD6274W3 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

BYCWD6274W3 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Literature Parts (Instructions Installation)
1Literature Parts (Energy Guide)
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WP3948357 Whirlpool Timer Assembly
5Wire, Jumper (Black)
6Dial (Washer)
7WP3364293 Whirlpool Timer Knob
8WP3957796 Whirlpool Knob
9279872 Whirlpool Resistor
10Wire, Jumper (Black)
11WP3957750 Whirlpool Knob
12WP3400064 Whirlpool Screw
13Switch, Pressure
14Switch, Temperature
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17Wire, Jumper (Blue)
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
20Panel, Control
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23Harness – Dryer
23BReceptacle,
23C3395683 Whirlpool Connector
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
29End Cap (LH)
