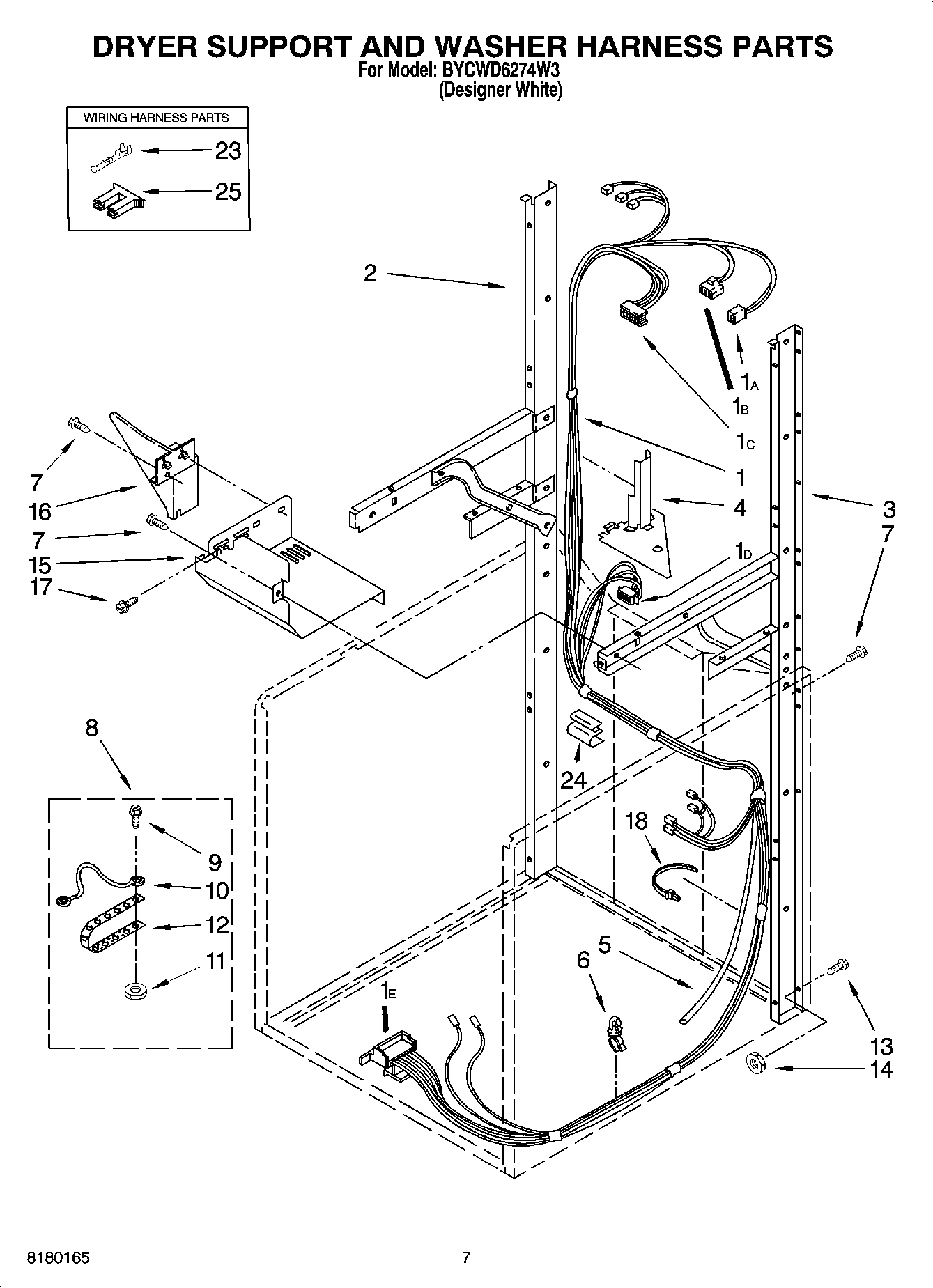

BYCWD6274W3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
2(Left Hand Side)
23388851 Whirlpool Support
3(Right Hand Side)
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8KIT, GROUNDING
9Screw, 10-24 x 1
10WPL 685449
11W10080180 Whirlpool Nut
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
18Tie, Cable
23WP94614 Whirlpool Terminal
24Protector, Harness
253354925 Whirlpool Connector
