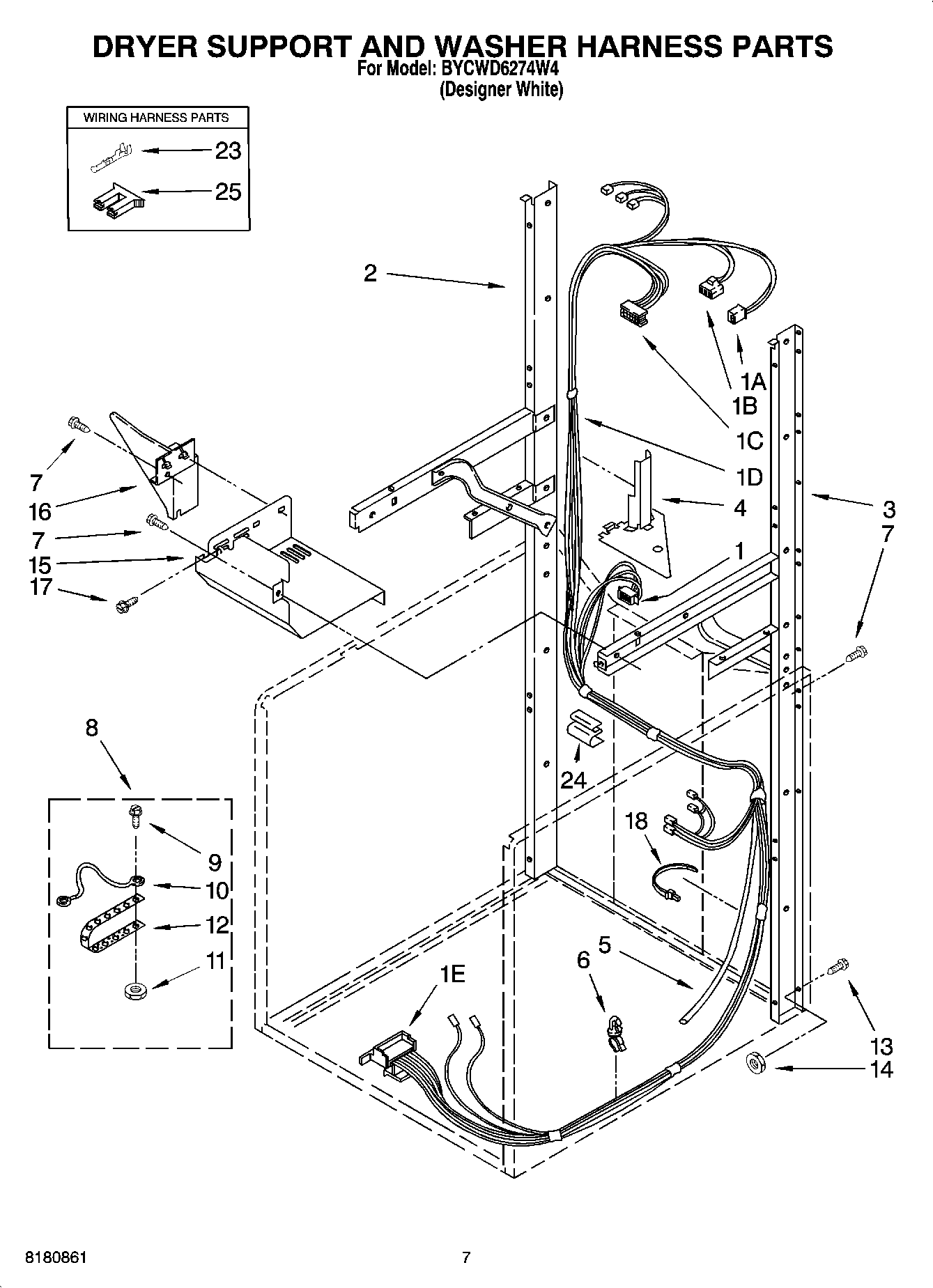

BYCWD6274W4 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

BYCWD6274W4 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

BYCWD6274W4 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1A3350130 Whirlpool Connector
1DReceptacle, 3 Way
1Harness – Washer
1EWP62505 Whirlpool Connector
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
2(Left Hand Side)
23388851 Whirlpool Support
33388850 Whirlpool Support
3(Right Hand Side)
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8KIT, GROUNDING
9Screw, 10-24 x 1
10WPL 685449
11W10080180 Whirlpool Nut
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
18Tie, Cable
23WP94614 Whirlpool Terminal
24Protector, Harness
253354925 Whirlpool Connector
