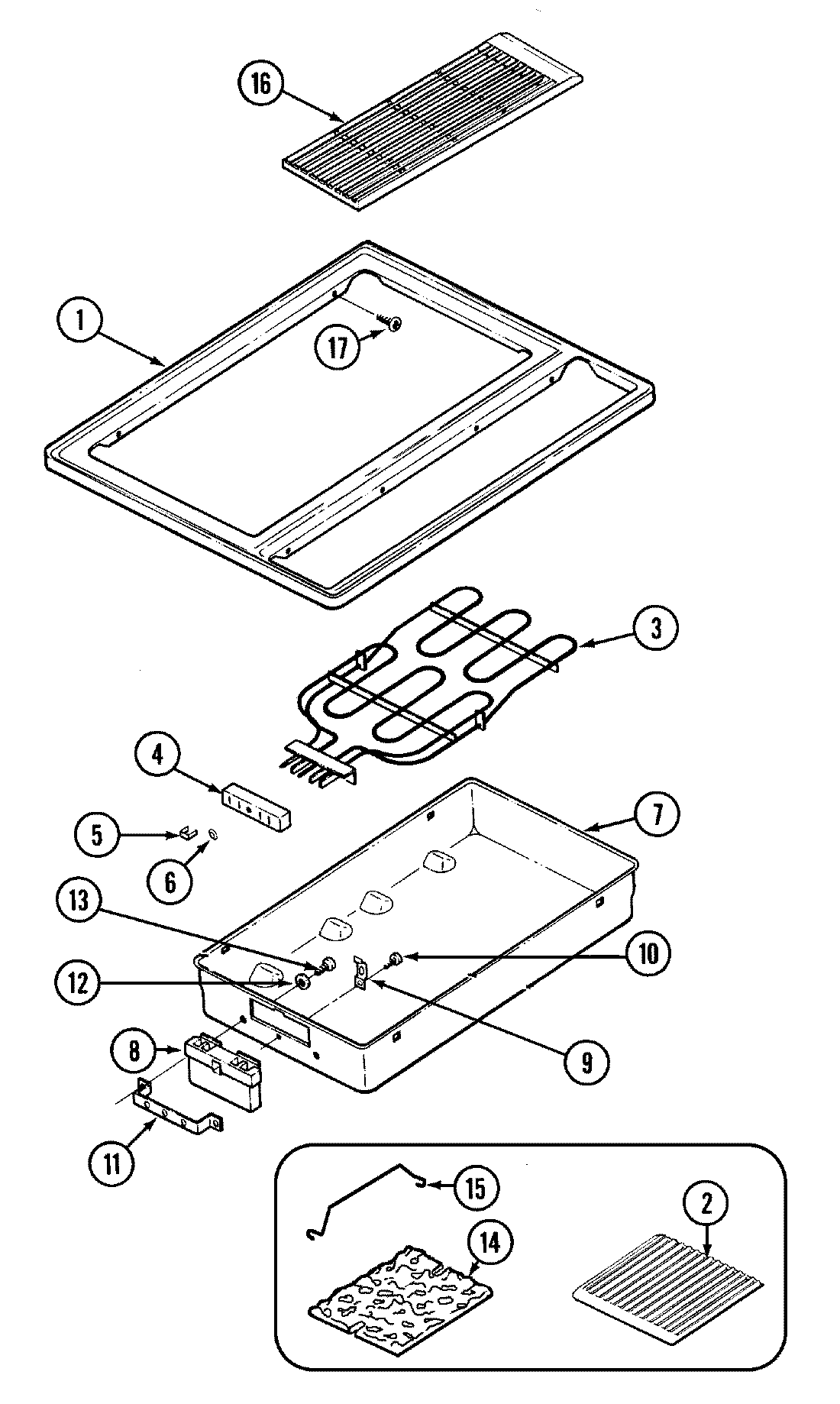

C102 04 – TOP ASSY.

C102 04 – TOP ASSY.

Written by

in

C102 04 – TOP ASSY.

Products

PositionProduct
1MAY 701850
2MAY 707886
3WP5700M426-60 Whirlpool Heating Element
4WPY708730 Whirlpool Terminal Block
5MAY Y700450
6Y708862 Whirlpool Speed Nut
7MAY Y712203
7MAY Y712200
7MAY 701955
7MAY Y712431
7MAY Y712197
7MAY Y712030
8WPY702434 Whirlpool Receptacle
9MAY Y702699
10MAY Y707341
11MAY Y702698
12MAY Y707664
13MAY Y707172
14MAY 708929
15700819 Whirlpool Oven Element Support
16MAY 700667
17MAY Y707347
