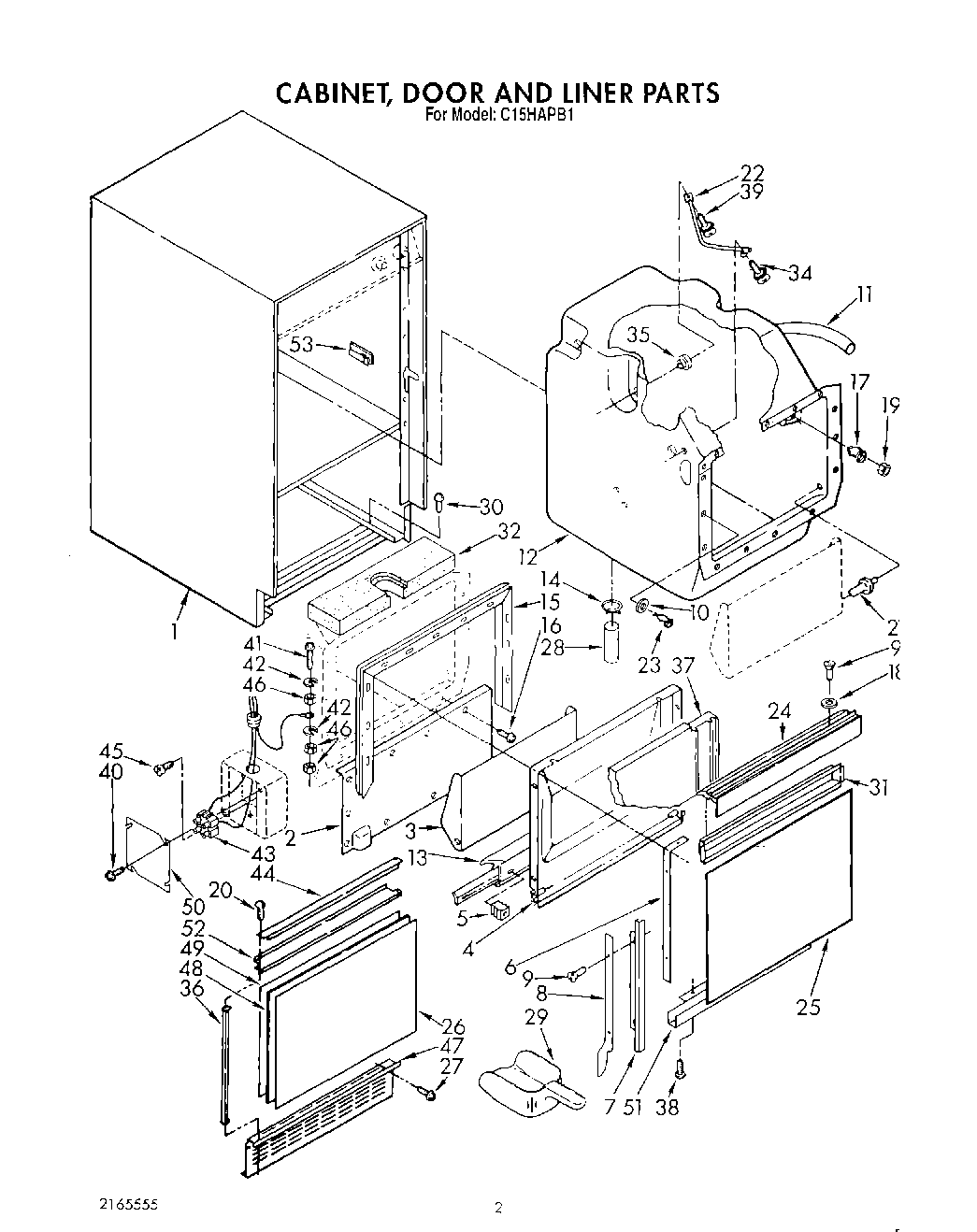

C15HAPB1 02 – CABINET, DOOR AND LINER, LITERATURE

C15HAPB1 02 – CABINET, DOOR AND LINER, LITERATURE

Written by

in

C15HAPB1 02 – CABINET, DOOR AND LINER, LITERATURE

Products

Position	Product
	WPL LIT759292
	WPL LIT216555
1	Shell
2	Support, Cabinet Front
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	Gasket, Door
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP965173 Whirlpool Dishwasher Screw
17	Grommet, Mtg (2)
18	Washer (2)
19	Nut, Hex 1/4 (2)
20	WP488729 Whirlpool Refrigerator Door Screw
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pull, Door
25	Panel, Door (White & Black)
26	Panel, Grille Cabinet Front
27	WP90767 Whirlpool Screw
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Pocket, Handle
32	Insul/Bottom Foam
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
40	Screw, 8-15 x 1/2 (4)
41	WPL 681333
42	Lockwasher (3)
43	Terminal, Connector
44	Trim, Top & Bottom
45	WP681249 Whirlpool Screw Assembly
46	Nut, 1/4 Hex
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
50	WPL 573468
51	Trim, Door (Lower)
52	978030 Whirlpool Refrigerator Valve
52	Leveler (Thinner) (2oz.)
52	VALVE, ACCESS (5/8“)
52	WP978025 Whirlpool Refrigerator Valve
52	350942 Whirlpool Spray Paint
52	WPL 799351
52	Support Panel
52	978026 Whirlpool Refrigerator Primary Valve
52	WPL 758518
52	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
52	Retainer, Wire (2)
52	876370 Whirlpool Refrigerator Insulation
52	VALVE, ACCESS (1/2“)
52	WP503695 Whirlpool Refrigerator Sealer
52	WP505587 Whirlpool Refrigerator Sealer
52	978027 Whirlpool Refrigerator Primary Valve
52	WPL 758406
