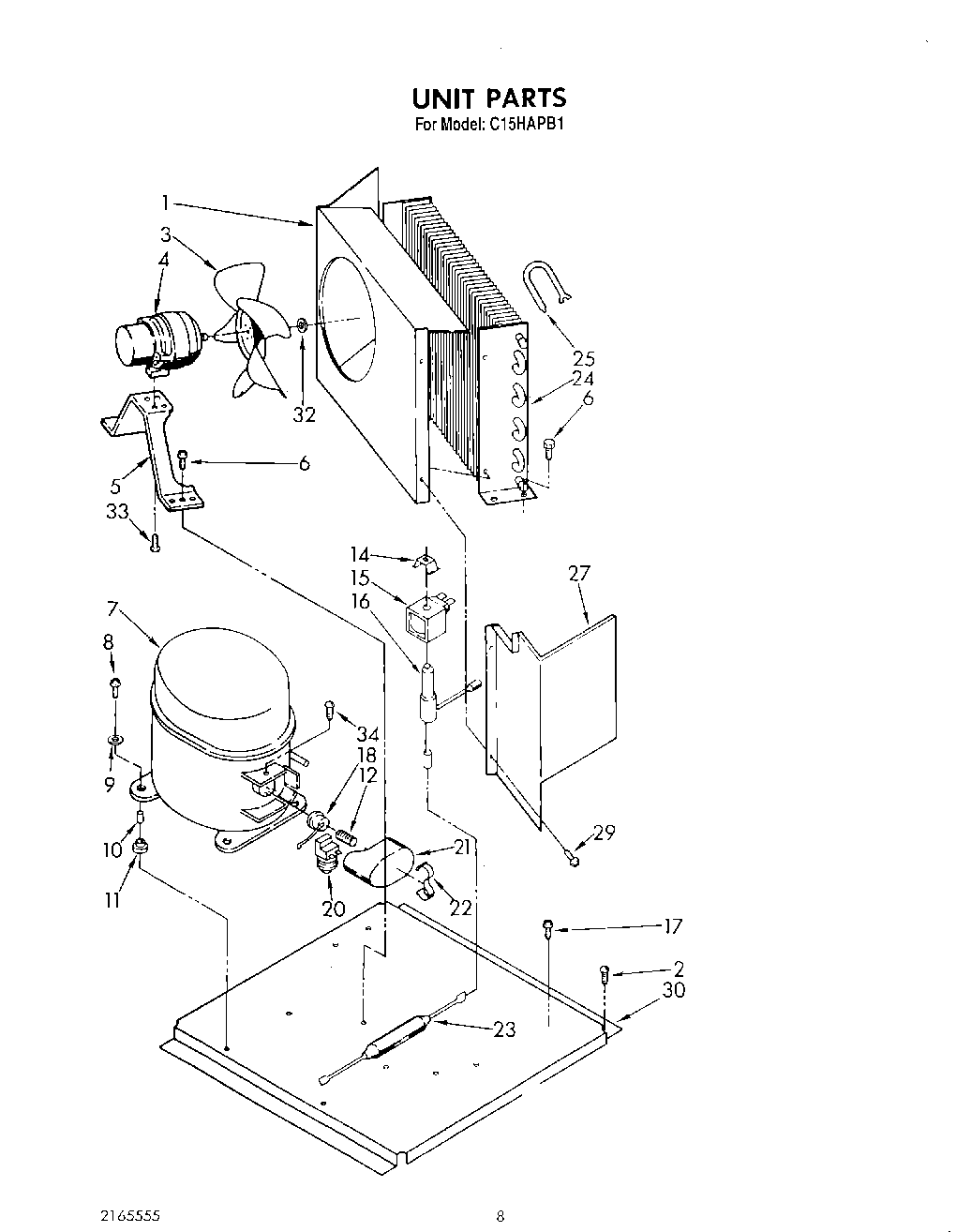

C15HAPB1 03 – UNIT

Products

PositionProduct
1Shroud, Condenser
2Screw, No.10-32 x 3/8
3978655 Whirlpool Refrigerator Fan Blade
4WPL 593821
5Bracket, Fan Motor
6Screw, 1/4-20 x 1/2
7WPL 598180
8Screw, 5/16-18 x 1-1/4 (4)
9Washer, Flat (4)
10Sleeve (4)
11Grommet (4)
12Spring, Overload
14Retainer, Solenoid Coil
15WPL 593639
16Valve, Solenoid Coil
17WP488729 Whirlpool Refrigerator Door Screw
18WPL 598196
20WPL 598195
21Case, Relay
22Cover, Spring
23W10843121 Whirlpool Refrigerator Tube
24Condenser
25Accumulator
27Deflector, Air
29WP90767 Whirlpool Screw
30Base, Unit
32Nut, Hex 1/4-20
33Screw, 8-36 x 1/2 (4)
34Screw (Compressor Ground)
