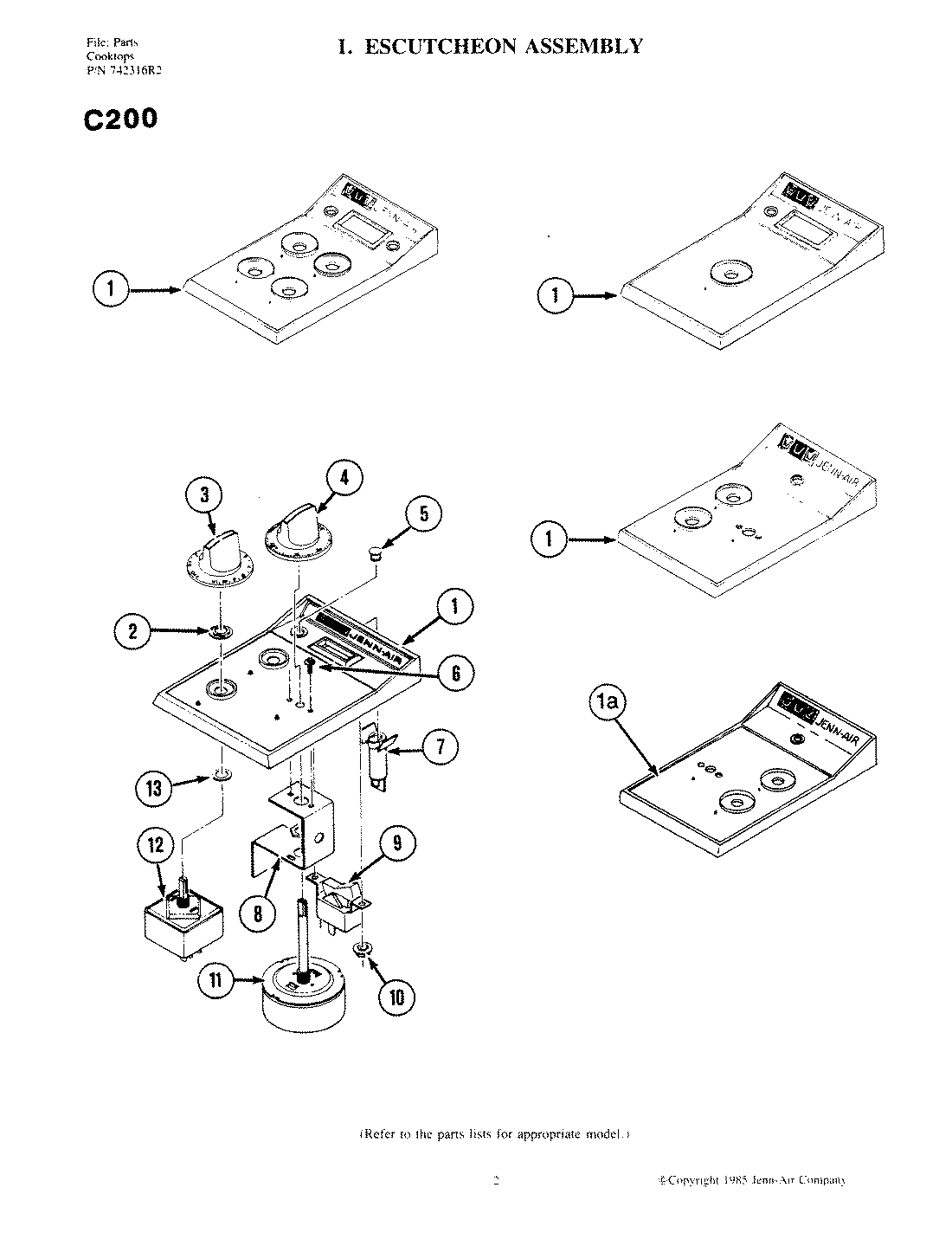

C200 03 – ESCUTCHEON ASSEMBLY

Written by

Products

Position	Product
NI	MAY 16000448
1	MAY Y700822
1	MAY Y700664
3	WPY700854 Whirlpool Oven Burner Knob
7	MAY Y708286
9	MAY Y708285
10	7103P166-60 Whirlpool Nut
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	700855K Whirlpool Oven Cooktop Burner Switch
12	MAY 715230K
13	MAY 700152
13	MAY Y700833
