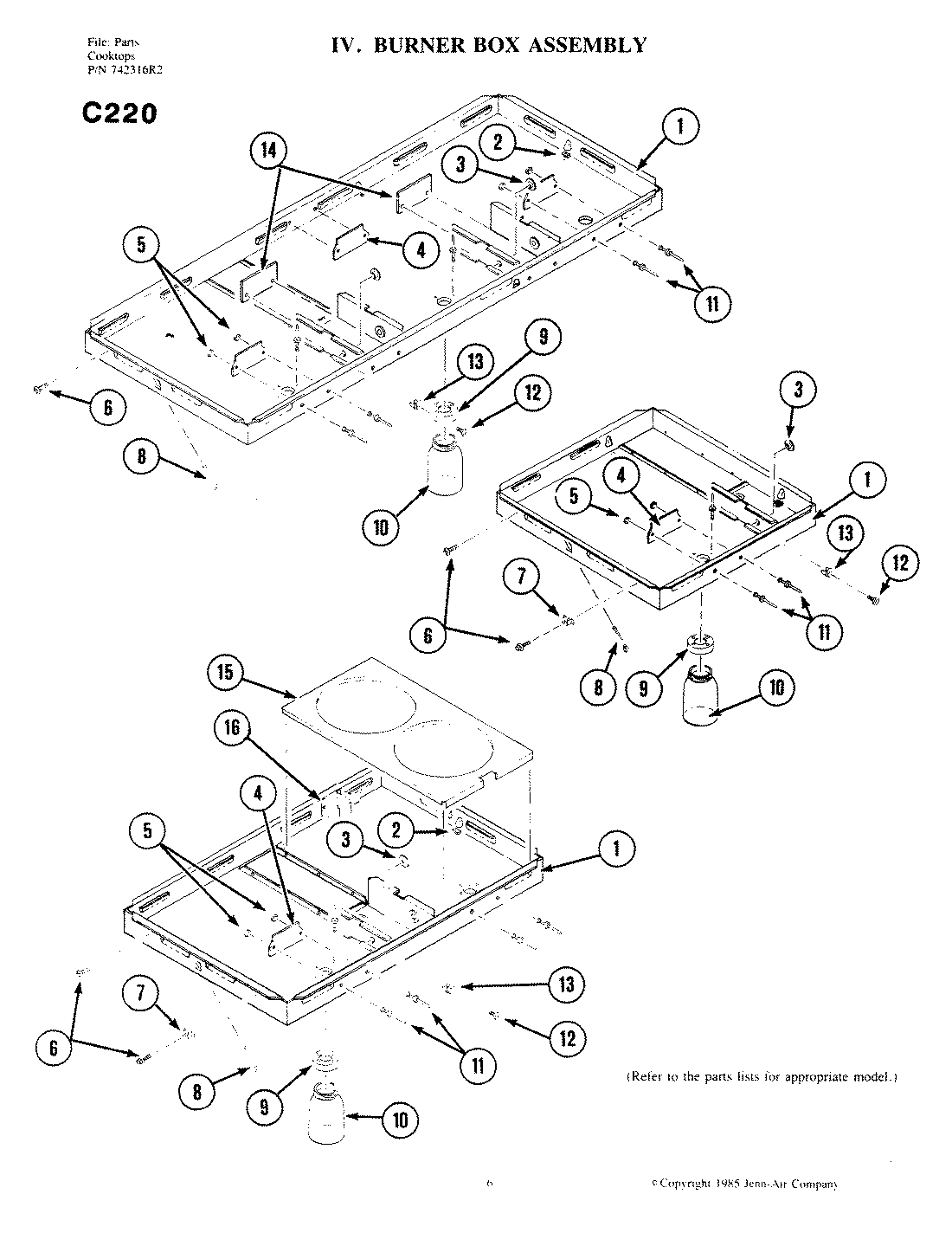

C220 02 – BURNER BOX ASSEMBLY

Written by

Products

Position	Product
1	MAY 700661
2	MAY Y707124
3	MAY Y707695
4	MAY 715874
5	MAY Y707664
6	WP90767 Whirlpool Screw
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	MAY Y707121
9	MAY Y707870
10	MAY Y707869
11	MAY Y707128
12	MAY 701933
13	MAY Y700672
14	MAY 707746
