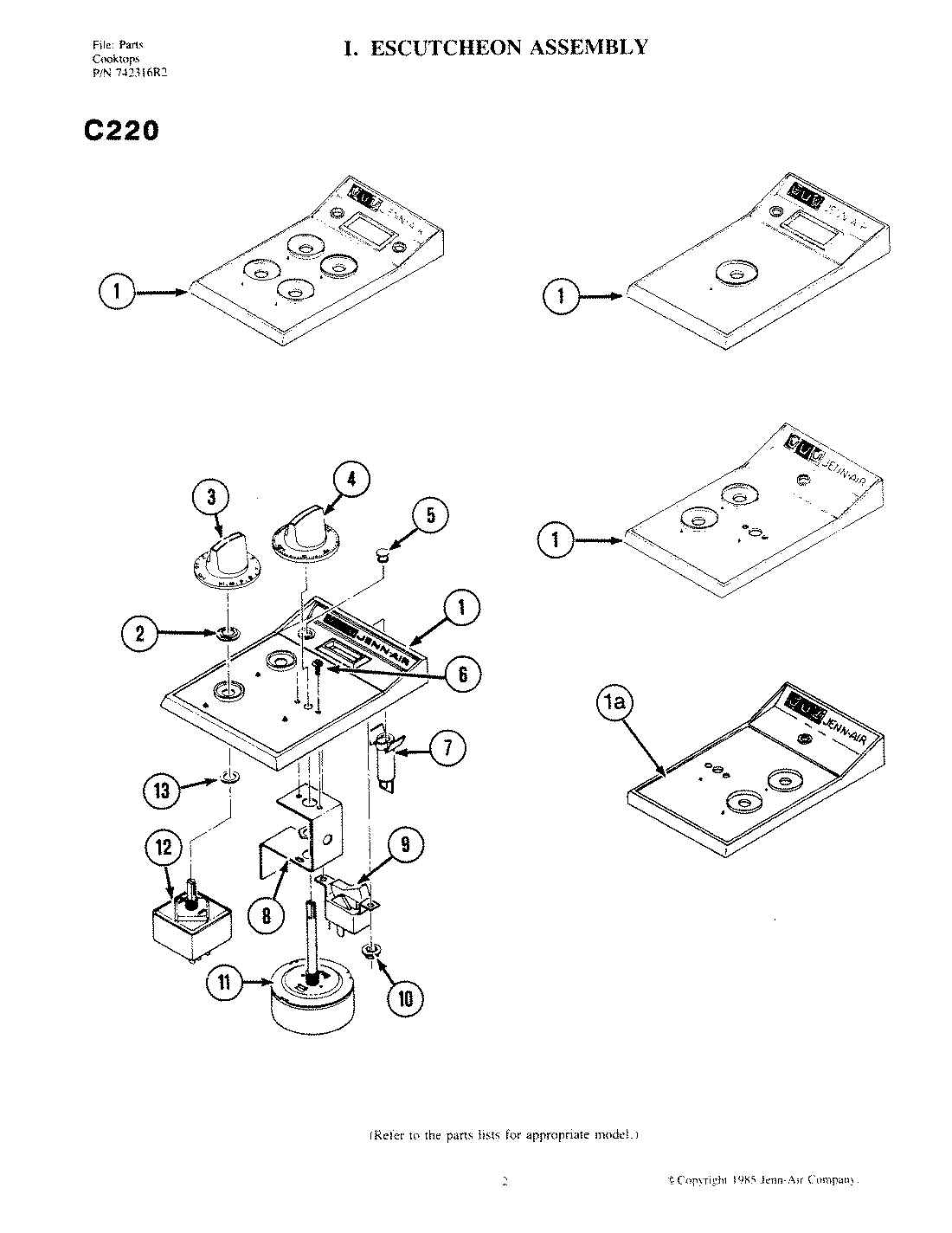

C220 03 – ESCUTCHEON ASSEMBLY

Written by

Products

Position	Product
1	MAY Y700822
1	MAY Y700664
3	WPY700854 Whirlpool Oven Burner Knob
5	WPY700631 Whirlpool Indicator Light Lens
7	MAY 715396
9	MAY 715397
10	7103P166-60 Whirlpool Nut
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	700855K Whirlpool Oven Cooktop Burner Switch
13	MAY Y700833
13	MAY 700151
