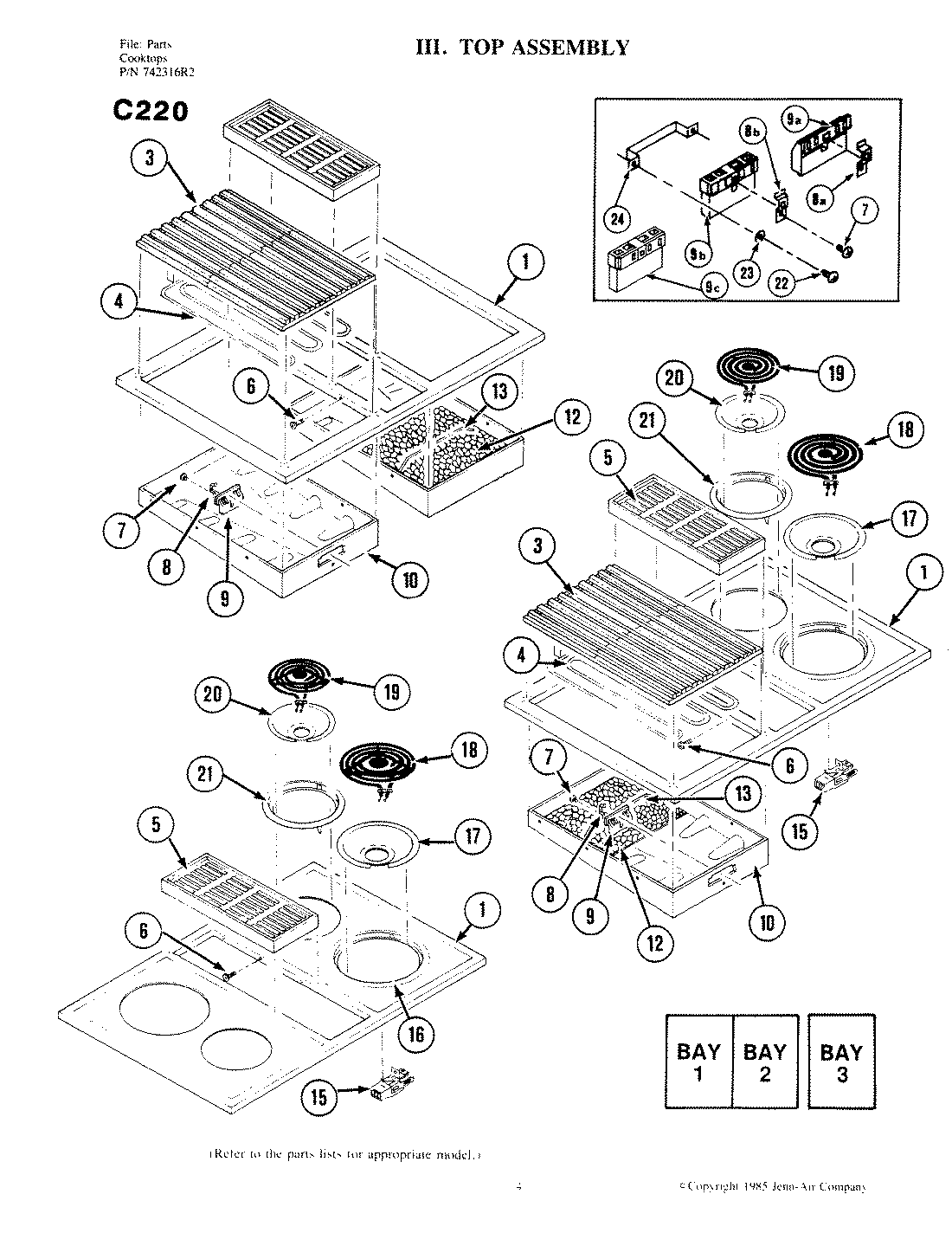

C220 04 – TOP ASSEMBLY

C220 04 – TOP ASSEMBLY

Written by

in

C220 04 – TOP ASSEMBLY

Products

PositionProduct
NINOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NIMAY 16000448
1MAY 701538
3MAY 707886
4WP5700M426-60 Whirlpool Heating Element
5MAY 700667
6MAY Y707347
7MAY Y707341
8MAY 715121
9MAY Y715120
10MAY Y701490
10MAY Y701491
10MAY Y701492
10MAY Y701953
10MAY Y701489
10MAY Y701493
12MAY 708929
13700819 Whirlpool Oven Element Support
