C2257^0 03 – BURNER
Written by
in

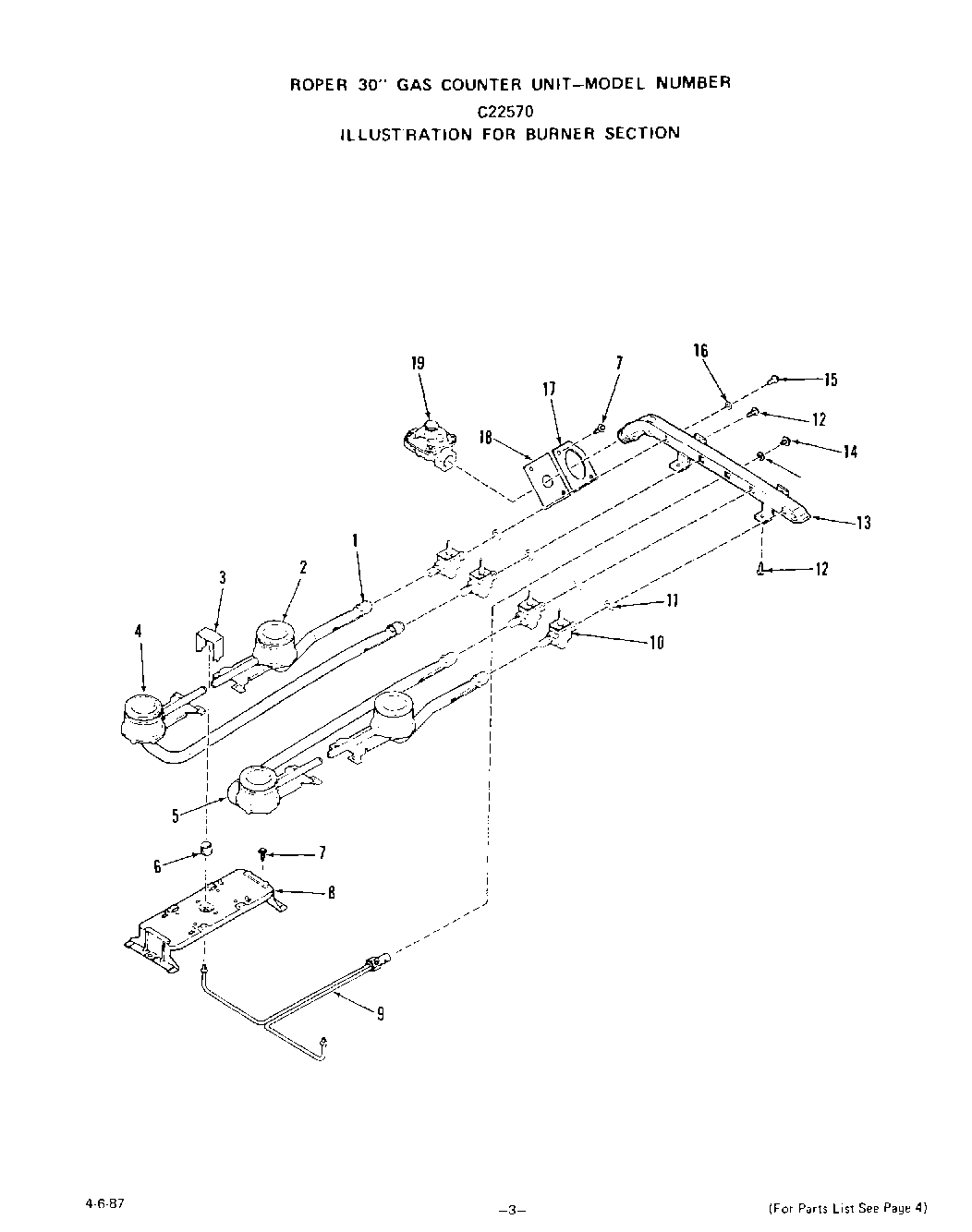

C2257^0 03 – BURNER
Products
Position
Product
1
Air Shutter
2
Burner-Top Asm (Right Front & Rear)
3
Top Pilot Shield (3 Req)
4
Burner-Top Asm (Left Rear)
5
Burner-Top Asm (Left Front)
6
Pilot Cup (3 Req)
7
Screw 10 – 32 x 1/4“
8
Top Burner Support
9
Pilot w/Filter
10
Gas Valve
11
Silicone Rubber Gasket
12
WPL 295850
13
Manifold Pipe
14
Mounting Screw 5/16-24
15
Mounting Screw (Inc`s 86)
16
Silicone Rubber Gasket (For Key 26)
17
Manifold Seal
18
Manifold Seal Retainer
19
Pressure Regulator
←
