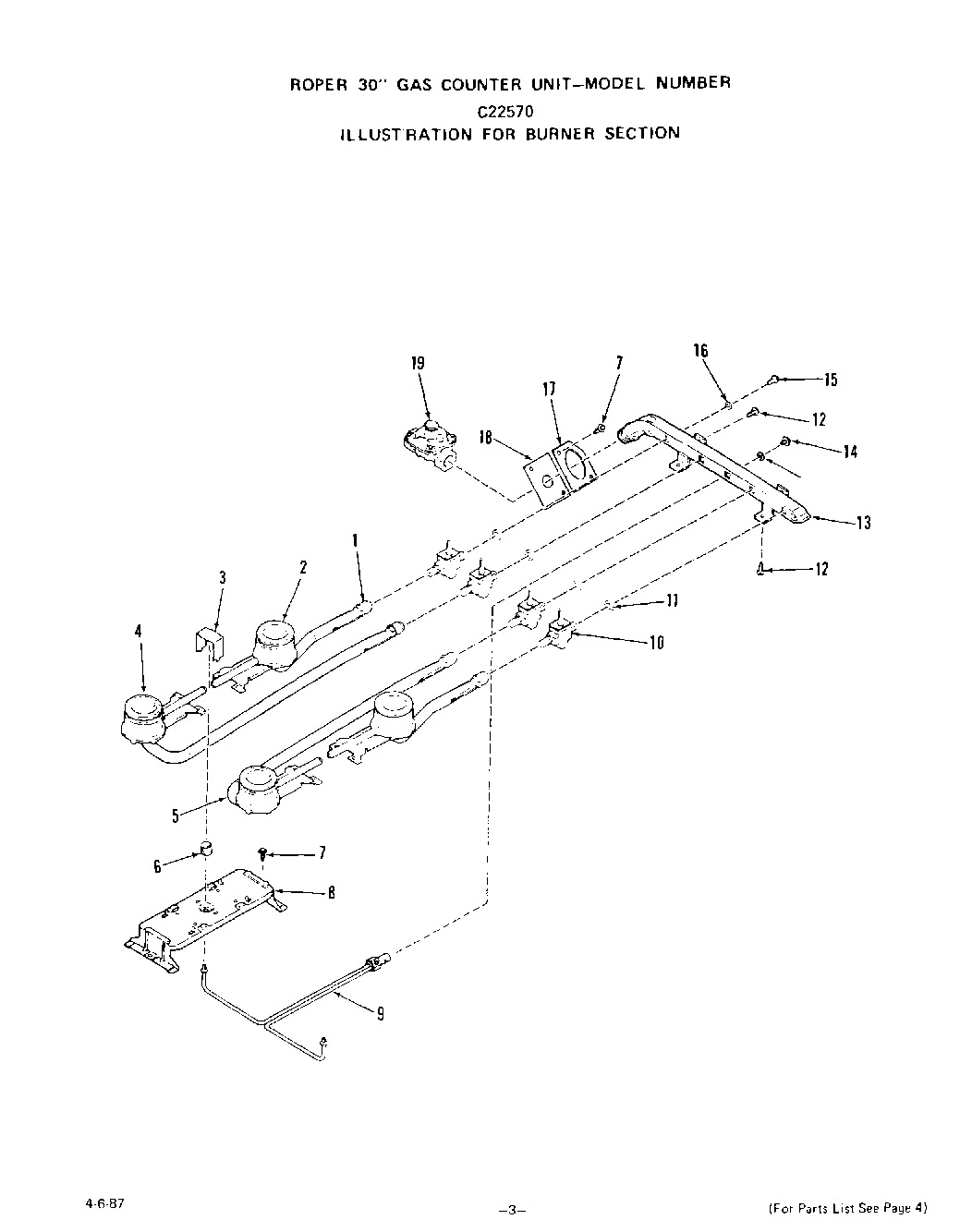

| 1 | Air Shutter |
| 2 | Burner-Top Asm (Right Front & Rear) |
| 3 | Top Pilot Shield (3 Req) |
| 4 | Burner-Top Asm (Left Rear) |
| 5 | Burner-Top Asm (Left Front) |
| 6 | Pilot Cup (3 Req) |
| 7 | Screw 10 - 32 x 1/4`` |
| 8 | Top Burner Support |
| 9 | Pilot w/Filter |
| 10 | Gas Valve |
| 11 | Silicone Rubber Gasket |
| 12 | WPL 295850 |
| 13 | Manifold Pipe |
| 14 | Mounting Screw 5/16-24 |
| 15 | Mounting Screw (Inc`s 86) |
| 16 | Silicone Rubber Gasket (For Key 26) |
| 17 | Manifold Seal |
| 18 | Manifold Seal Retainer |
| 19 | Pressure Regulator |
