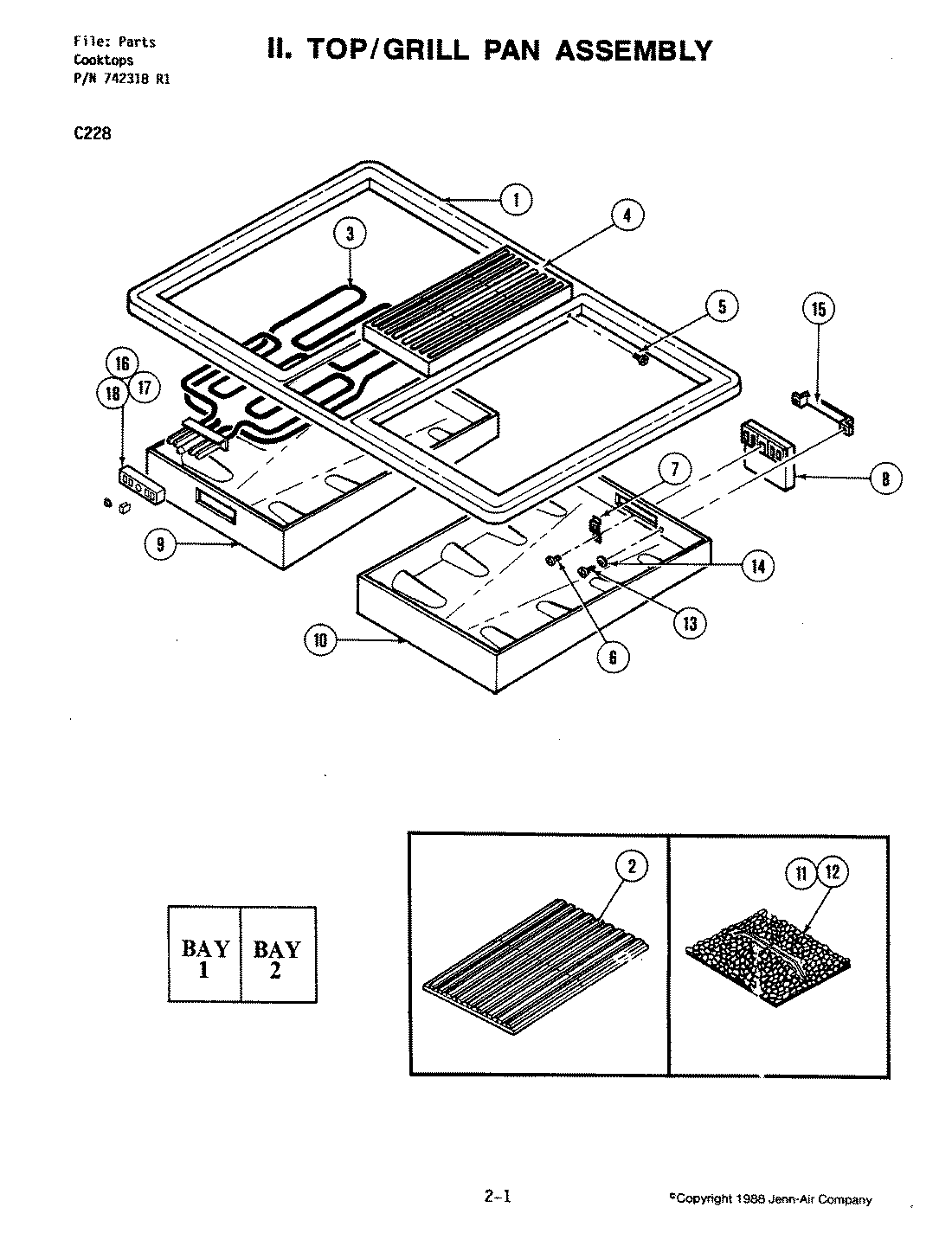

C228 04 – TOP/GRILL PAN ASSEMBLY

C228 04 – TOP/GRILL PAN ASSEMBLY

Written by

in

C228 04 – TOP/GRILL PAN ASSEMBLY

Products

PositionProduct
1MAY 703748
1MAY Y704984
2MAY Y703746
3MAY Y700457
3WP5700M426-60 Whirlpool Heating Element
4MAY Y703658
5MAY Y707347
6MAY Y707341
7MAY Y702699
8WPY702434 Whirlpool Receptacle
9MAY Y712197
9MAY Y712030
9MAY Y712014
9MAY Y712203
9MAY Y712200
9MAY 701955
9MAY Y712015
10WP5708M081-60 Whirlpool Wire Harness
10MAY Y712019
10MAY Y712029
10WP5708M007-60 Whirlpool Wire Harness
10MAY Y701956
10MAY Y712202
10MAY Y712199
10MAY Y712020
11MAY 708929
12700819 Whirlpool Oven Element Support
13MAY Y707172
14MAY Y707664
15MAY Y702698
16WPY708730 Whirlpool Terminal Block
17MAY Y700450
18Y708862 Whirlpool Speed Nut
