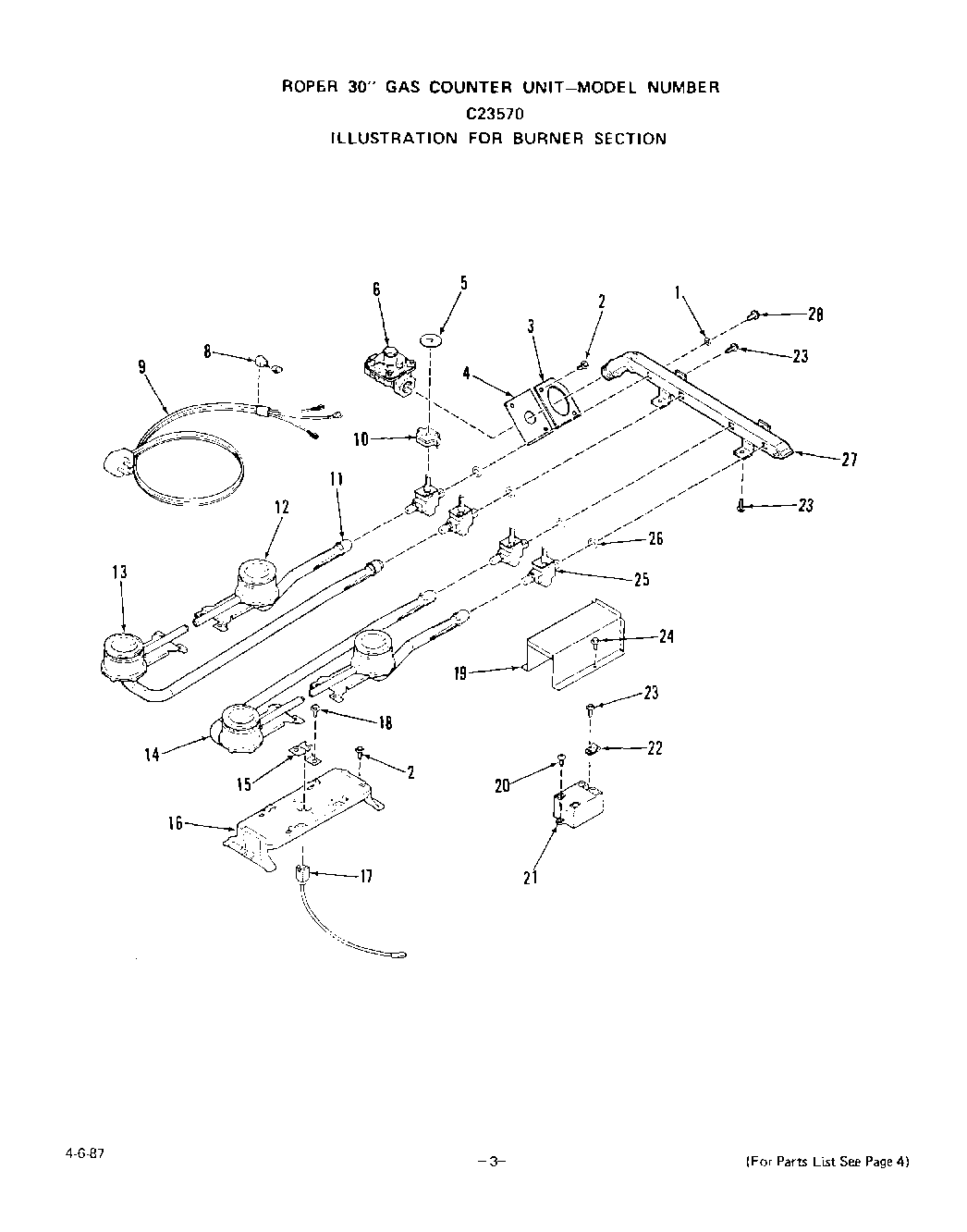

| 1 | Silicone Rubber Gasket (For Key 26) |
| 2 | Screw 10 - 32 x 1/4`` |
| 3 | Manifold Seal |
| 4 | Manifold Seal Retainer |
| 5 | Shield - Gas Value (4 Req) |
| 6 | Pressure Regulator |
| 8 | 280050 Whirlpool Rear Panel |
| 9 | Cord |
| 10 | C27570 Models |
| 11 | Air Shutter |
| 12 | Burner-Top Asm (Right Front & Rear) |
| 13 | Burner-Top Asm (Left Rear) |
| 14 | Burner-Top Asm (Left Front) |
| 15 | panel, side l.h. (almond panel, side r.h.) |
| 16 | Support-Top Burner |
| 17 | Right |
| 18 | Screw 10-16x7/16`` |
| 19 | Cover-Module Wire |
| 20 | Screw 6-32x3/8`` |
| 21 | Spark Module |
| 22 | WPL 109266 |
| 23 | WPL 295850 |
| 24 | Screw 10 - 32 x 7/16`` |
| 25 | Gas Valve |
| 26 | Silicone Rubber Gasket |
| 27 | Pipe-Manifold |
| 28 | Mounting Screw (Inc`s 86) |
