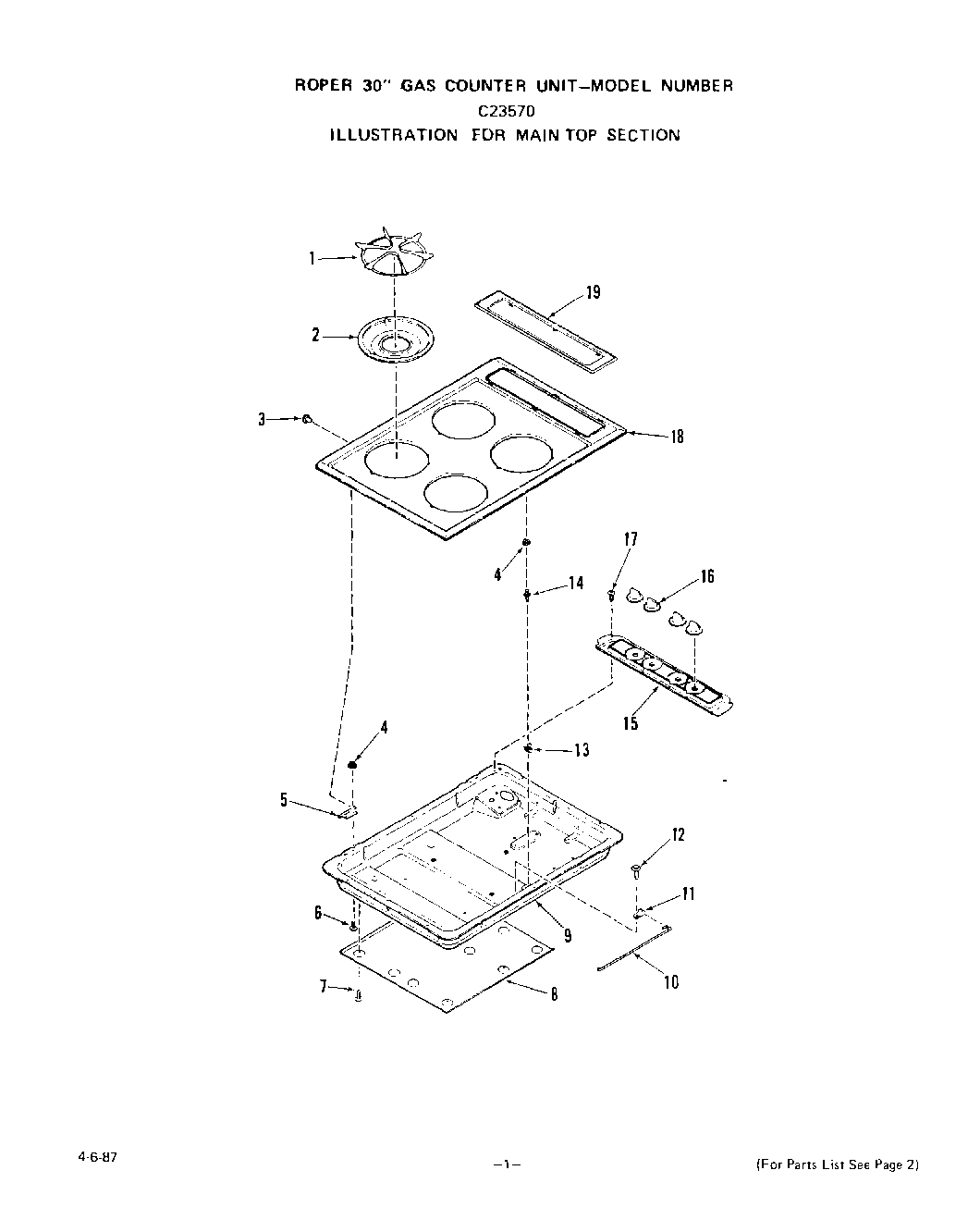

C2357W0 02 – MAIN TOP

C2357W0 02 – MAIN TOP

Written by

in

C2357W0 02 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Required)
2Aeration Pan 15252A, 3A Models
3Screw 6-32×1/4“
4Keps Nut 8-32
5Hinge-Main Top
6Screw 8-32×1/4“
7Screw 10 – 32 x 1/4“
8Burner Box Shield
9Box-Burner
10Main Top Support Rod
11Clip
12WP112432 Whirlpool Nut Assembly
13Catch-Strike
14Strike-Broiler Door
15Control Panel
16Gas Valve Knob
17Screw 6-32×3/8“
18Chrome
18Main Top (Avocado)
18Main Top (Almond)
18Main Top (Toast)
18Main Top (Wheat)
18Main Top (Platinum)
18Main Top (Coffee)
18Main Top (White)
18Top-Main
19Bezel-Control
