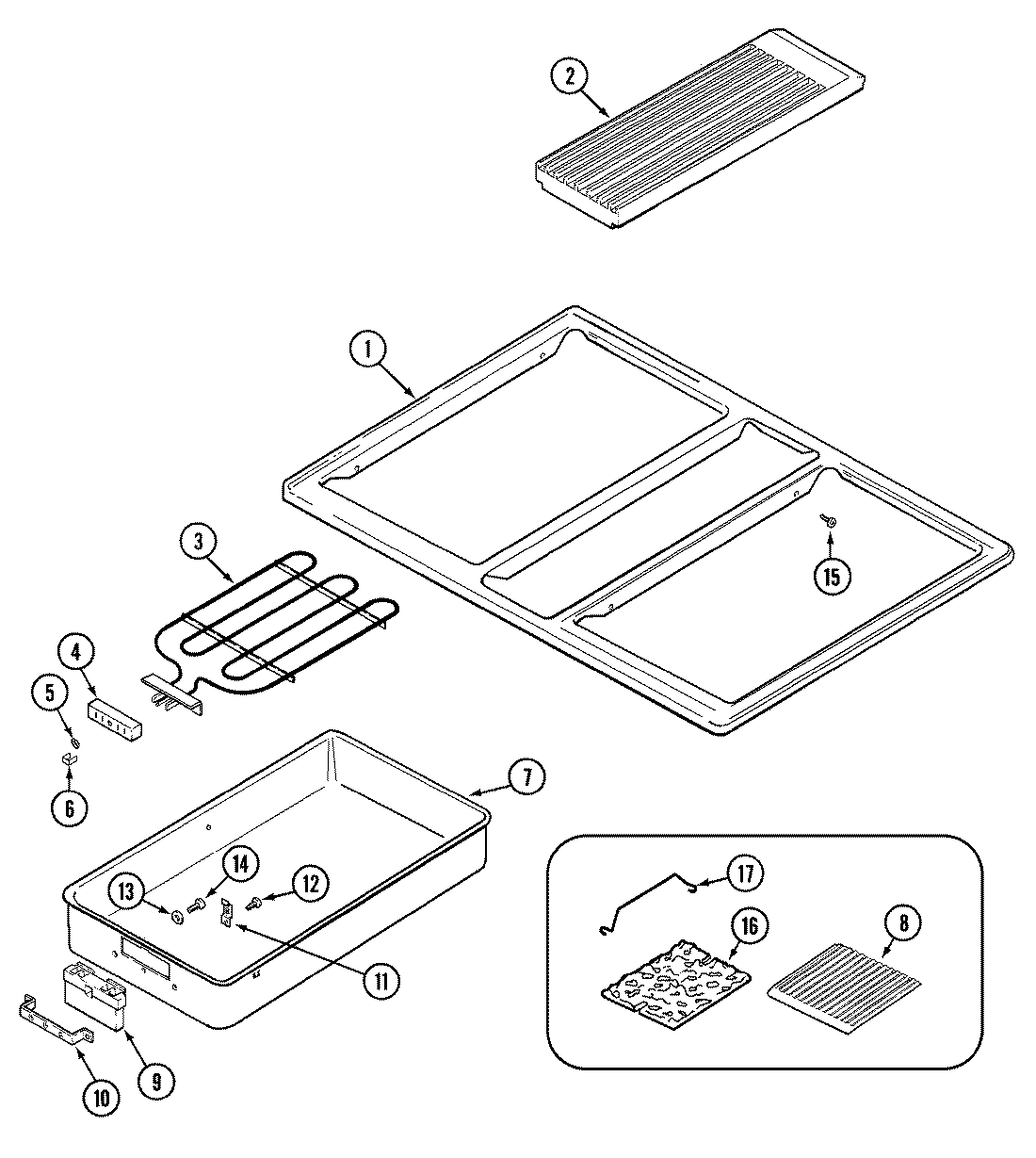

C238B-C 04 – TOP ASSEMBLY

C238B-C 04 – TOP ASSEMBLY

Written by

in

C238B-C 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY Y704984
2MAY Y703658
3MAY 700714
4WPY708730 Whirlpool Terminal Block
5Y708862 Whirlpool Speed Nut
6MAY Y700450
7MAY Y701489
7MAY 701937
7MAY 712033
7MAY Y712014
7MAY 701955
7MAY Y712015
7MAY Y712017
8WP5708M081-60 Whirlpool Wire Harness
8MAY Y712019
8MAY 704429
8MAY Y712020
8MAY Y703746
8MAY Y712029
8MAY Y701956
9WPY702434 Whirlpool Receptacle
10MAY Y702698
11MAY Y702699
12WP489128 Whirlpool Refrigerator Screw
13MAY Y707664
14WP12990527 Whirlpool Microwave Screw
15MAY Y707347
16MAY 708929
17700819 Whirlpool Oven Element Support
