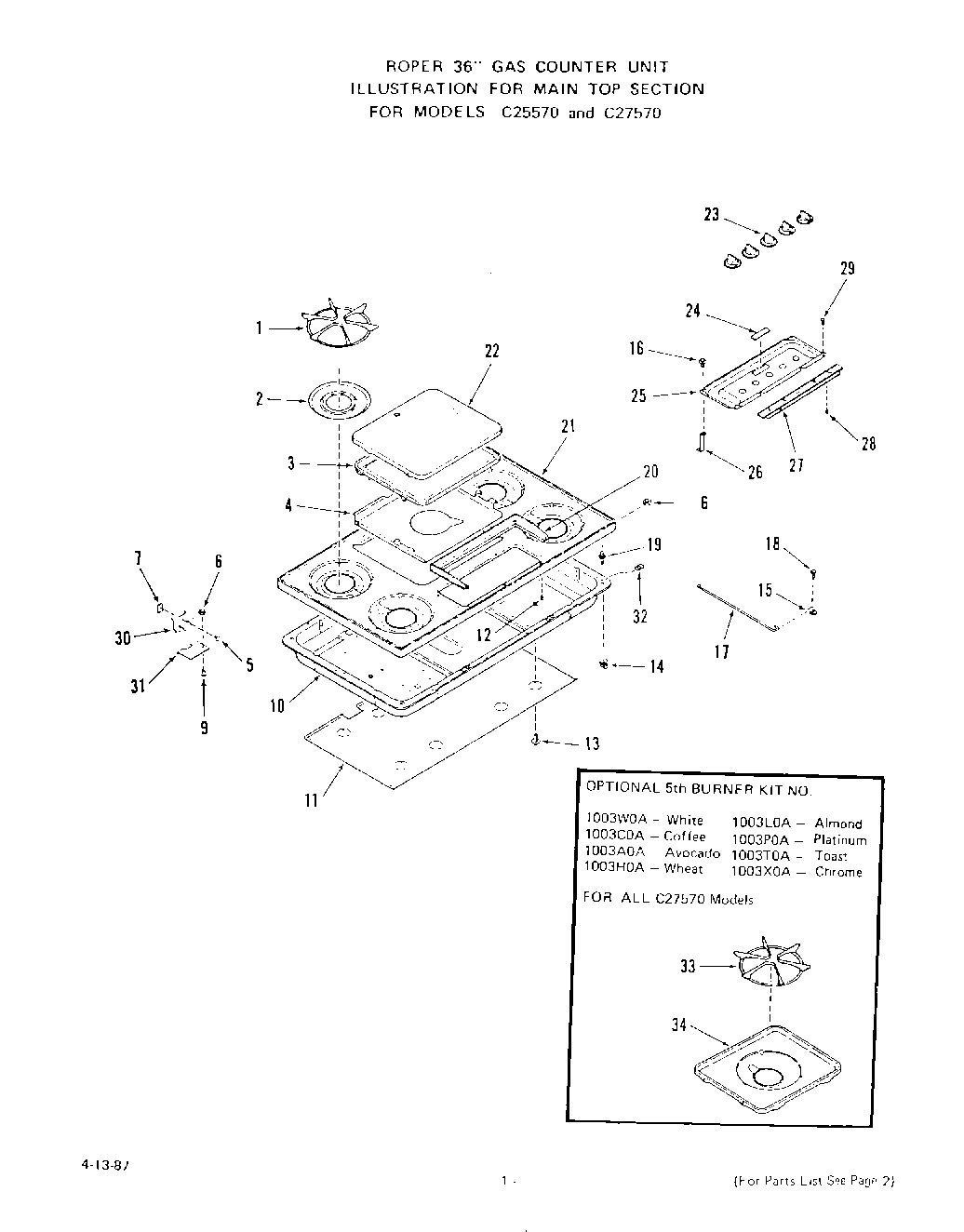

C2557^0 02 – MAIN TOP

Products

Position	Product
2	Spill Bowl (4 Required)
3	Griddle Plate
4	Bracket, Control Mounting
5	Screw 10 – 32 x 7/16“
6	Keps Nut 8-32
7	Speed Nut
9	Screw 8-32×1/4“
10	Burner Box
11	Shield-Burner Box
14	Catch-Main Top Strike (2 Required)
15	Clip
16	Screw 10 – 32 x 1/4“
17	Support-Main Top
18	Screw 10-32×3/8“
19	Strike-Main Top (2 Required)
20	Shell Assembly (Coffee)
21	C2557WO
21	C2757TO Chrome
21	C2557LO
21	C2557HO
21	C2557AO
21	C2557XO
21	C2757WO Coffee
21	C2757CO Avocado
21	C2757AO Golden Wheat
21	C2757HO Almond
21	C2757LO Platinum
21	C2557CO
21	Bracket, Control Mounting
21	C2557PO
21	C2557TO
21	Main Top White
21	C2757XO
22	Griddle Cover (Coffee 1633C1A, C2A)
22	Toast
22	Platinum
22	Griddle Cover (Almond 1633L1A, L2A)
22	Griddle Cover (Golden Wheat 1633H1A, H2A)
22	Griddle Cover (White 1633W1A, W2A)
22	Chrome
22	Griddle Cover (Avocado 1633A1A, A2A)
22	Griddle Cover (C27570 Models)
23	5 Req.
23	5 Req.
23	Knob-Gas Valve
24	Name Plate
25	Motor Fan (Alternate)
25	C2557O
25	Control Panel
26	Bracket-Control Panel (2 Req)
27	Front Trim
27	Shell Assembly (New Avocado)
27	Shell Assembly (Almond)
28	Screw 7-32×5/16“(2 Req) All 2101 Models
29	WPL 97220
30	Upper Leaf-Hinge (Lt. or Rt.)
31	Lower Leaf-Hinge (Lt. or Rt.)
32	Washer
33	Top Grate (4 Required)
34	Aeration Pan-Griddle (Avocado)
34	Chrome
34	Toast
34	Platinum
34	Aeration Pan-Griddle (White)
34	Griddle Aeration Pan
34	WPL 325417
34	Aeration Pan-Griddle (Coffee)
34	Aeration Pan-Griddle (Golden Whe
